S50c C50 080m50 1.1206 1050 Hot Forged Rolled Non-Alloy Steel
HUNAN QILU INDUSTRIAL CO., LTD.- Type：Carbon Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Hot Rolled,Forged,Cold Drawn
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar, Engineering Mechanical Steel Bar
- Surface Treatment：Black; Peeled; Polished; Machined; Grinded; Turned
- Alloy：Non-alloy
Base Info
- Model NO.：S50c C50 080m50 1.1206 1050 Carbon Steel
- Special Use：Mold Steel, Free Cutting Steel, Cold Heading Steel, Machining Steel
- Certificate：ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
- Process：Eaf+Lf+Vd+Forged+Heat Treatment(Optional)
- Heat Treatment：Annealed,Normalized,Q+T
- Quality Inspection：Ut, Chemical Composition, Physical Properties,SGS
- Technical Data：Ensile Strength, Yield Strength, Elongation
- Ut Standard：Sep 1921-84 D,D
- Grain Size：ASTM E112
- Non-Metallic Inclusion：ASTM E45
- Delivery Condition：Hot Rolled,Forged,Cold Drawn
- Shape：Round,Flat,Block,Square,Tube
- Usage：Automotive, Aerospace, Power Generation, Oil & Gas
- Other Type 1：Engineering Steel, Cold Work Tool Steel
- Other Type 2：Hot Work Tool Steel, Plastic Mold Steel
- Other Type 3：Spring Steel, High Speed Steel, Stainless Steel
- Other Type 4：Mold Steel, Free Cutting Steel, Cold Heading Steel
- Transport Package：Standard Seaworthy Packages, or as Per Request
- Specification：Dia 6-1200
- Trademark：QILU
- Origin：China
- HS Code：722840
- Production Capacity：500, 000ton,Year
Description
6: HEAT TREATMENT
ANNEALINGFull annealing of small C1050 forgings is carried out from 1450-1600oF (790-870oC)
followed by furnace cooling at 50oF (28oC) per hour, to 1200oF (650oC) soaking and air cooling.
NORMALIZING
The normalizing temperature range for this grade is typically 1650-1700oF (900-925oC.)
Normalizing is followed by cooling in still air. When forgings are normalized before hardening and tempering or other heat treatment, the upper range of the normalizing temperature is used. When normalizing is the final treatment, the lower temperature range is used.
HARDENING
Hardening of this grade is carried out from an austenitizing temperature of 1500-1600oF (820-870oC) followed by oil or water quenching.
Flame and induction hardening may be carried out by heating quickly to the desired case depth and quenching in water or oil. This should be followed by a tempering treatment at 300-400oF (150-200oC) to reduce stresses in the case, without affecting its hardness. A surface hardness as high as Rc 61 may be obtained from C1050 by this treatment.
TEMPERING
Tempering after normal hardening and oil or water quenching is carried out at 750-1260o F (400-680oC) to give the required mechanical properties as determined by practical experience.
7: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, Normalized, rough turned/Black surface.For hot rolled bar, usually the delivery condition is hot rolled, Black surface.
For hot rolled plate, usually the delivery condition is hot rolled, Painting surface
For hot forged plate, usually the delivery condition is hot forged, normalized, black surface.

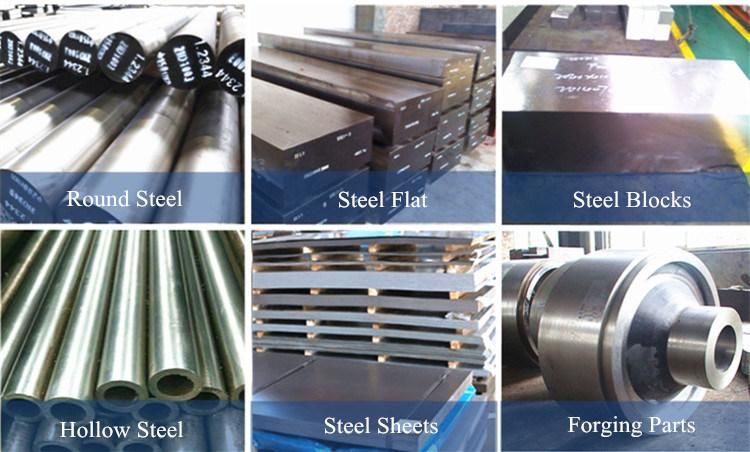

Hunan Qilu Industrial Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.
Hunan Qilu Industrial Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Industrial also has their own heating treatment shop and machining shop to provide heating and cutting service.

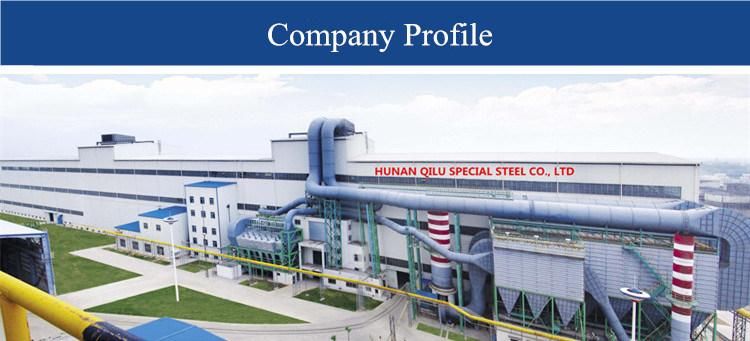

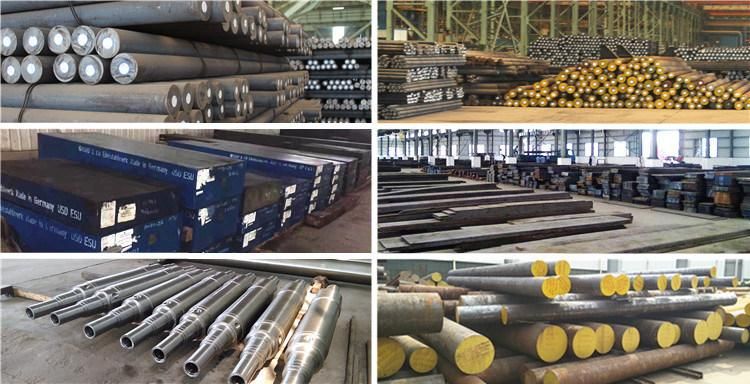

Since 2008 year, Hunan Qilu Industrial has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.
Qilu Industrial is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.

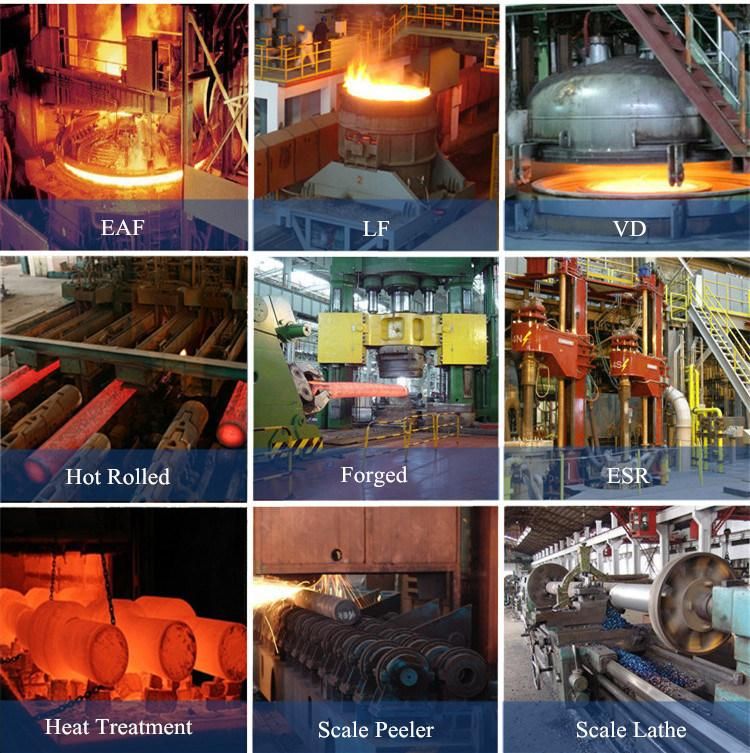

The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
Any interests in our company and products, please feel free to contact us for quotation. We warmly welcome you to our factory.Hunan Qilu Industrial CO., LTD
