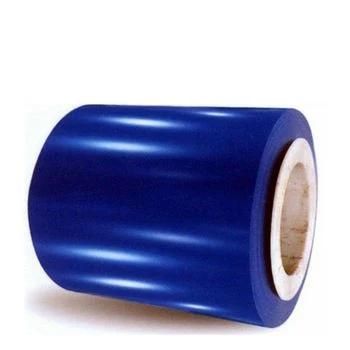

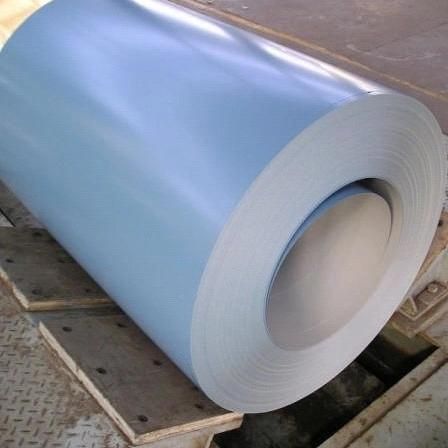

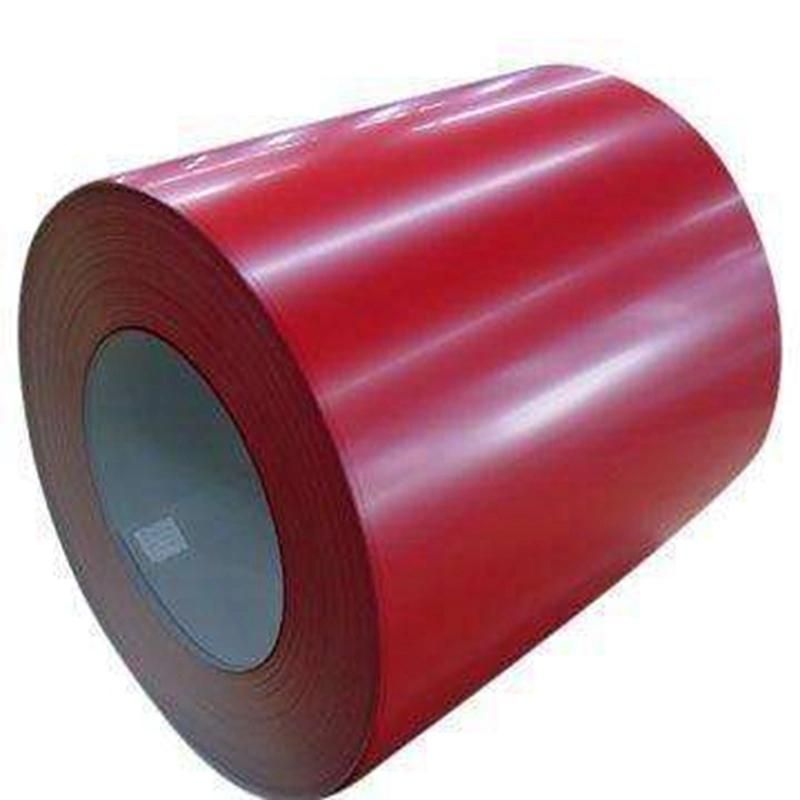

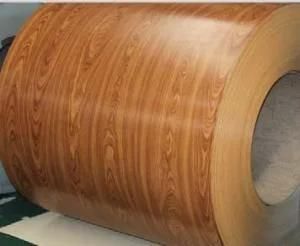

Ral5002 Prepainted Galvanized Steel PPGI
Shandong Wiskind Steel Building Stock Co., Ltd.- Type：Coil
- Standard：AISI, ASTM, DIN, JIS, GB, BS
- Technique：Cold Rolled
- Surface Treatment：Color Coated
- Special Use：High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel
- Thickness：0.4-0.7mm
Base Info
- Width：1250mm Max
- Coils Wt.：3-5t
- Package：Water Proof Package Fixed in Container
- Transport Package：Container Package
- Specification：Thickness: 0.15-1.2mm Width: 0-1.5m
- Trademark：Wiskind
- Origin：China
- HS Code：72107010
- Production Capacity：10000mt,Month
Description
STANDARDS
JIS G 3312-CGCC, CGC340-570, (G550),
ASTM A -755M CS-B, SS255-SS550
ASTM A -755M CS-B, SS255-SS550
THICKNESS
0.14~2.0 mm
0.14~2.0 mm
Width
750~1500 mm
750~1500 mm
Coil ID
508/610 mm
508/610 mm
Substrate
Soft, Medium, Hard
Soft, Medium, Hard
Coating Mass
Z 40-275 (g/m2)
AZ 40-150 (g/m2)
Paint Systems
Primers: Epoxy, PU
Primers: Epoxy, PU
Top Coating:
Top Coating:
Polyester (RMP/PE)
Polyester (RMP/PE)
Silicon Modified Polyester (SMP)
Silicon Modified Polyester (SMP)
Poly Vinyl Di Flouride (PVDF)
Poly Vinyl Di Flouride (PVDF)
Back Coating: Epoxy, Polyester, PU
Back Coating: Epoxy, Polyester, PU
Coating
20 - 50 Microns
20 - 50 Microns
Colours
As Per RAL Chart/Customer requirements.
As Per RAL Chart/Customer requirements.
Surface Finishes
Glossy and Matte
Glossy and Matte
Cut to length
200mm-5000mm
200mm-5000mm
Capacity
1,500,000.00 Ton / year
1,500,000.00 Ton / year

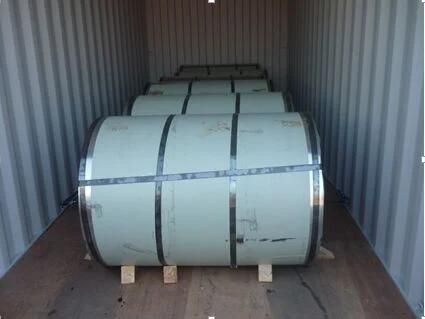

Packing
Sea Worthy Export Packaging
Sea Worthy Export Packaging
Loading Port
Tianjin Port/Jingtang Port/Shanghai Port
Tianjin Port/Jingtang Port/Shanghai Port
