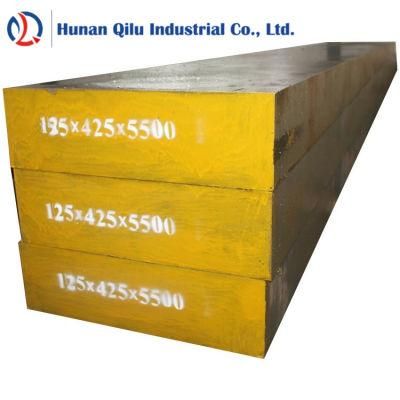

• Model NO.：3Cr2Mo
• Special Use：High-strength Steel Plate, Wear Resistant Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel, Tool Steel, Die Steel, Mold Steel
• Application：Die Steel Bar
• Length：3-5.8m, or as Per Request
• Certificate：ISO, ABS, BV, CCS, Dnv, Lr, Gl, Mill Certificate
• Process：Eaf+Lf+Vd+Forged+Heat Treatment(Optional)
• Delivery Condition：Hot Rolled,Forged,Cold Drawn
• Heat Treatment：Annealed,Normalized,Q+T
• Quality Inspection：Ut,Chemical Composition,Physical Properties,SGS
• Ut Standard：Sep 1921-84 D,D
• Grain Size：ASTM E112
• Non-Metallic Inclusion：ASTM E45
• Technical Data：Ensile Strength, Yield Strength, Elongation
• Usage：Automotive, Aerospace, Power Generation, Oil & Gas
• Other Type 1：Engineering Steel, Cold Work Tool Steel
• Other Type 2：Hot Work Tool Steel, Plastic Mold Steel
• Other Type 3：Spring Steel, High Speed Steel, Stainless Steel
• Other Type 4：Mold Steel, Free Cutting Steel, Cold Heading Steel

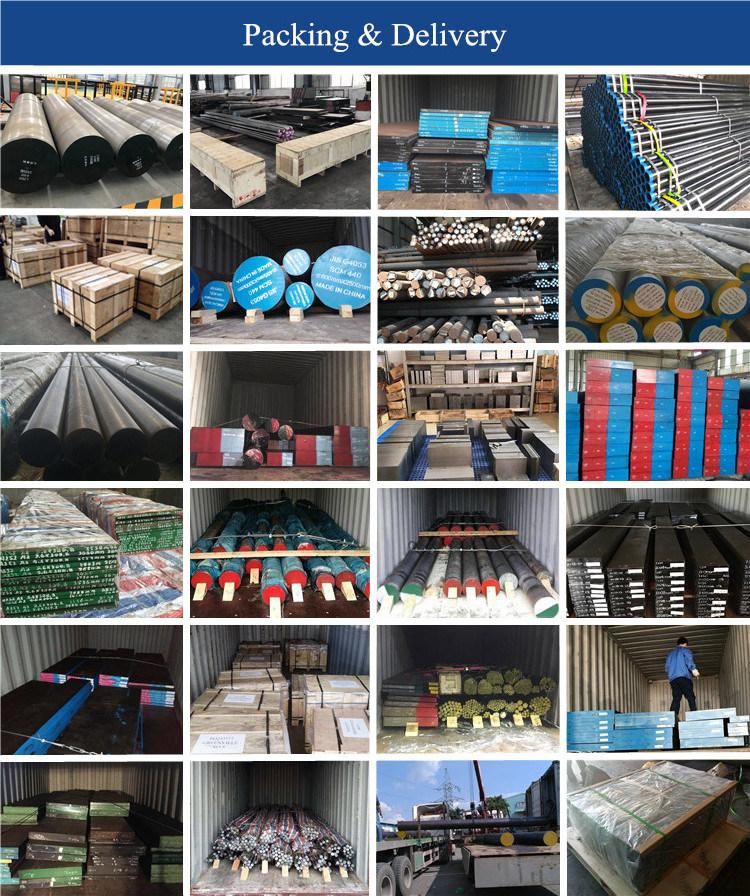

• Transport Package：Standard Seaworthy Packages, or as Per Request
• Specification：Dia 6-1200
• Trademark：QILU
• Origin：China
• HS Code：72284000
• Production Capacity：500, 000ton,Year

CountryUSAGermanJapanStandardASTM A681DIN EN ISO 4957JIS G4404GradeP21/P20+S1.2312NAK80
3: NAK80 steel chemical compositionGradeCSiMnPSCrMoNAK800.150.31.50.030.031.4-20.3-0.551.23120.06-0.160.41.4-1.70.030.031.8-2.10.15-0.25P210.18-0.220.2-0.40.2-0.40.030.031.4-20.3-0.55
4: NAK80 steel mechanical properties
    The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.

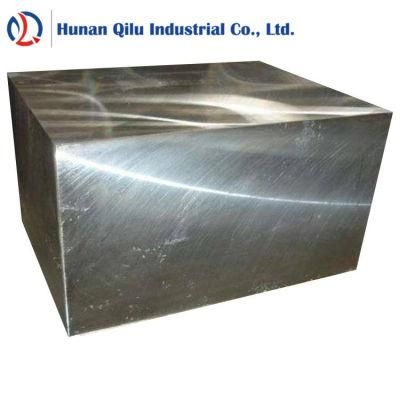

5: NAK80 steel overviewsSizeRoundDia 200-1000mmPlate/Flat/BlockThickness
16mm-100mmWidth
200mm-2000mmHeat treatmentNormalized ; Annealed ; Quenched ; TemperedSurface conditionBlack; Peeled; Polished; Machined; Grinded; Turned; MilledDelivery conditionForged; Hot rolled; Cold drawnTestTensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc. Payment termsT/T;L/C;/Money gram/ PaypalTrade termsFOB; CIF; C&F; etc..Delivery time30-45 daysApplication

NAK80 tool steels are used for transparent products and others for which mirror finished surface are particularly important; Products for which electrical discharge machined surfaces are very important; Typical for clear lens molds, extremely critical diamond finish applications, and molds requiring special EDM finish.

6: Delivery condition
For hot forged bar, usually the delivery condition is hot forged, annealed/QT rough turned/Black surface.
For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.

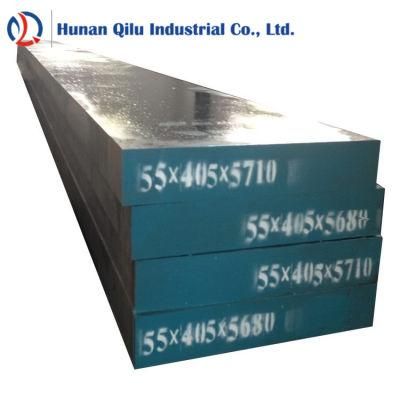

For hot forged plate, usually the delivery condition is hot forged, annealed/QT, milled surface
For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.

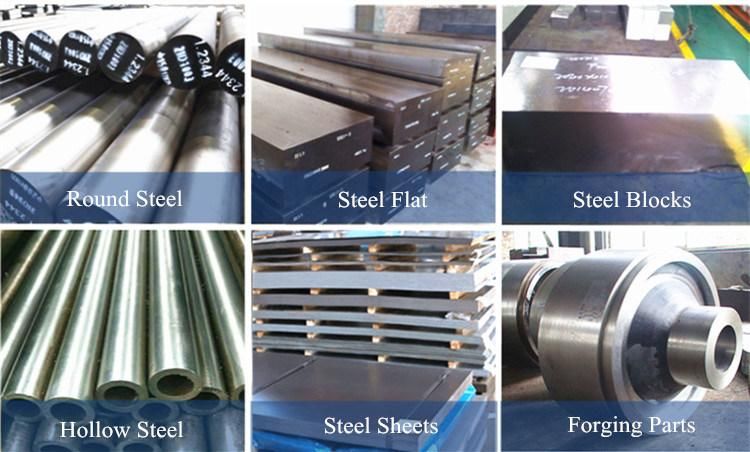

Hunan Qilu Industrial Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.







Hunan Qilu Industrial Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels,  including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Industrial also has their own heating treatment shop and machining shop to provide heating and cutting service.

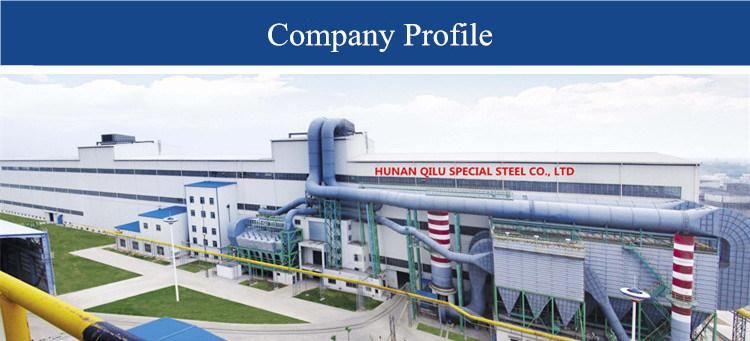

Since 2008 year, Hunan Qilu Industrial has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.

Qilu Industrial is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.

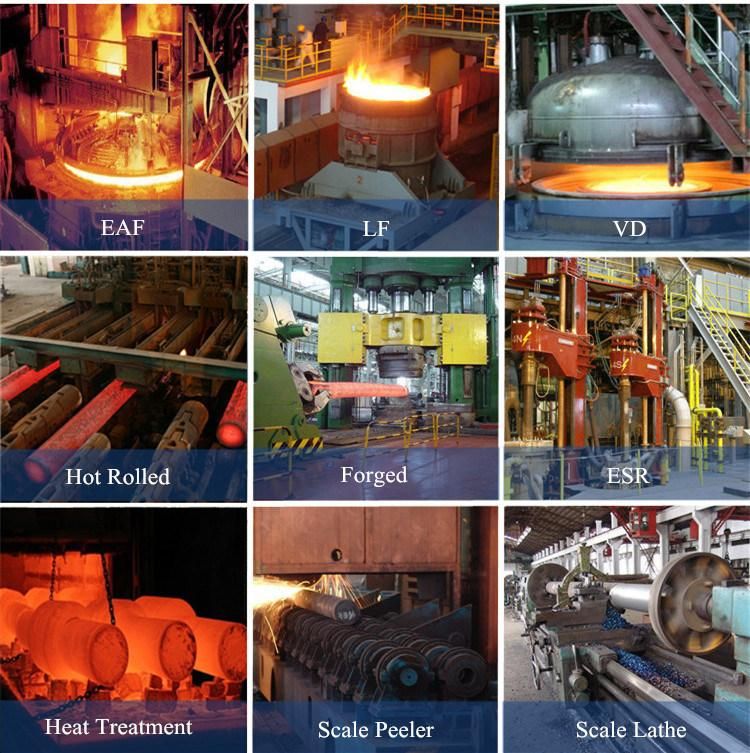

The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
