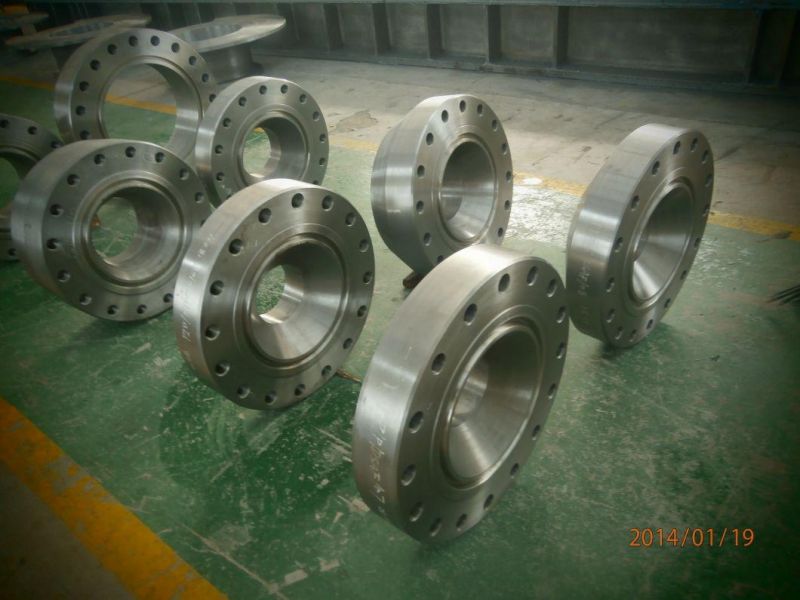

Forging Adaptor Flange with Alloy Steel 4130 According to API 6A
Jiangyin Eternal Heavy Industry Co., Ltd.- Type：Carbon Steel Bar
- Standard：ASTM
- Composition：Stainless Steel Scrap
- Technique：Forged
- Material：4130 API 6A
- Size Range：2-1,16" 5m -18-3,4" 15m
Base Info
- Model NO.：13-5,8" -10M
- Mechanical Property：Min 75K Psi
- Seal Groove：316L Stainless Steel Welding
- Transport Package：Wooden Box
- Trademark：ETERNAL
- Origin：China
- Production Capacity：1000 Ton,Month
Description
3. Size range : 2-1/16" 5M -18-3/4" 15M
Technical Specifications of DSAF (Double Studded Adapter Flange) DSAF Description Flange thickness (T) (mm)2-1/16" x 5M To 3-1/8" x 5M 702-1/16" x 10M To 4-1/16" x 10M 803-1/16" x 10M To 4-1/16" x 10M 1303-1/16" x 10M To 4-1/16" x 5M 804-1/16" x 5M To 2-1/16" x 5M 754-1/16" x 5M To 3-1/8" x 5M 834-1/16" x 2M To 4-1/16" x 5M 807-1/16" x 10M To 13-5/8" x 10M 1707-1/16" x 5M To 13-5/8" x 5M 15011" x 15M To 18-3/4" x 15M 25611" x 5M To 13-5/8" x 5M 14413-5/8" x 10M To 11" x 10M 26713-5/8" x 3M To 16-3/4" x 2M 15013-5/8" x 10M To 18-3/4" x 15M 25613-5/8" x 5M To 18-3/4" x 15M 25618-3/4" x 15M To 20-3/4" x 3M 27020-3/4" x 3M To 18-3/4" x 15M 25621-1/4" x 2M To 18-3/4" x 15M 256
4. Delivery condition :
Forging + turning +quenching and tempering + Seal groove stainless steel welding
Final machining
5. Packing : Poly-wooden box
