Top Sale Section Steel Hot Rolled Steel U-Channel
Shanghai Changzeng Metal Co., Ltd.- Standard：GB, ASTM, JIS, AISI, DIN, BS
- Shape：C Channel, Equilateral Angle Bar
- Length：6m-12m
- Certificated：ISO9001:2008,SGS,BV
- Name：Hot Rolled Equal Angel Steel
- Perforated or Not：Is Perforated
Base Info
- Grade：Q235
- Surface Treatment：Hot DIP Galvanised
- Application：Supporting System
- Surface：Galvanized Painted
- Material：Ss400,St37-2,St52,Q420,Q460,S235jr,S275jr,S355jr
- Technique：Hot Rollled
- Transport Package：Iron Belt Fastened, or Customize Package.
- Trademark：TANG STEEL
- Origin：Tianjin, China
Description
Type
Height
Width
Thickness
Theoretical weight
5#
50
37
4.5
5.438
6.3#
63
40
4.8
6.634
8#
80
43
5.0
8.045
10#
100
48
5.3
10.007
12#
120
53
5.5
12.059
12.6
126
53
5.5
12.319
14#a
140
58
6.0
14.535
14#b
140
60
8
16.733
16#a
160
63
6.5
17.24
16#b
160
65
8.5
19.752
18#a
180
68
7
20.174
18#b
180
70
9
23
20#a
200
73
7
22.637
20#b
200
75
9
25.777
22#a
220
77
7
24.999
22#b
220
79
9
28.453
25#a
250
78
7
27.41
25#b
250
80
9
31.335
25#c
250
82
11
35.26
28#a
280
82
7.5
31.427
28#b
280
84
9.5
35.832
28#c
280
86
11
40.219
30#a
300
85
7.5
34.463
30#b
300
87
9.5
39.173
30#c
300
89
11.5
43.883
32#a
320
88
8
38.083
32#b
320
90
10
43.107
32#c
320
92
12
48.131
36#a
360
96
9
47.814
36#b
360
98
11
53.466
36#c
360
100
13
59.118
40#a
400
100
10
58.928
40#b
400
102
12.5
65.208
40#c
400
104
14.5
71.488
European Standard
Type
Size [(h*b)mm]
D (mm)
T (mm)
Weight (kg/m)
UPE80
80*40
4.5
7.4
7.05
UPE100
100*46
4.5
7.6
8.59
UPE120
120*52
4.8
7.8
10.4
UPE140
140*58
4.9
8.1
12.3
UPE160
160*64
5
8.4
14.2
UPE180
180*70
5.1
8.7
16.3
UPE200
200*76
5.2
9
18.4
UPN80
80*45
6
8
8.64
UPN100
100*50
6
8.5
10.6
UPN120
120*55
7
9
13.4
UPN140
140*60
7
10
16
UPN160
160*65
7.5
10.5
18.8
UPN180
180*70
8
11
22
UPN200
200*75
8.5
11.5
25.3
Japanese Standard JIS3192
Type
Size [(h*b)mm]
D (mm)
T (mm)
Weight (kg/m)
JIS50
50*25
3
6
2.37
JIS75a
75*40
3.8
7
5.3
JIS75b
75*40
4
7
5.6
JIS75c
75*40
4.5
7
5.85
JIS75d
75*40
5
7
6.92
JIS100a
100*50
3.8
6
7.3
JIS100b
100*50
4.2
6
8.03
JIS100c
100*50
4.5
7.5
8.97
JIS100d
100*50
5
7.5
9.36
JIS125a
125*65
5.2
6.8
11.66
JIS125b
125*65
5.3
6.8
12.17
JIS125c
125*65
5.5
8
12.91
JIS125d
125*65
6
8
13.4
JIS150a
150*75
5.5
7.3
14.66
JIS150b
150*75
5.7
10
16.71
JIS150c
150*75
6
10
17.9
JIS150d
150*75
6.5
10
18.6
JIS200
200*80
7.5
11
24.6
JIS250
250*90
9
13
34.6
JIS300
300*90
9
13
38.1
By sea

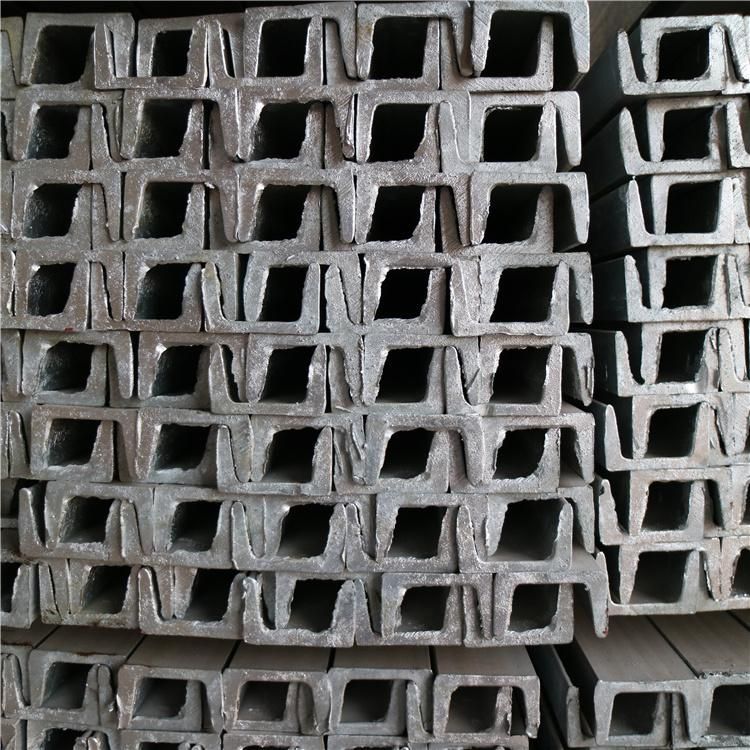

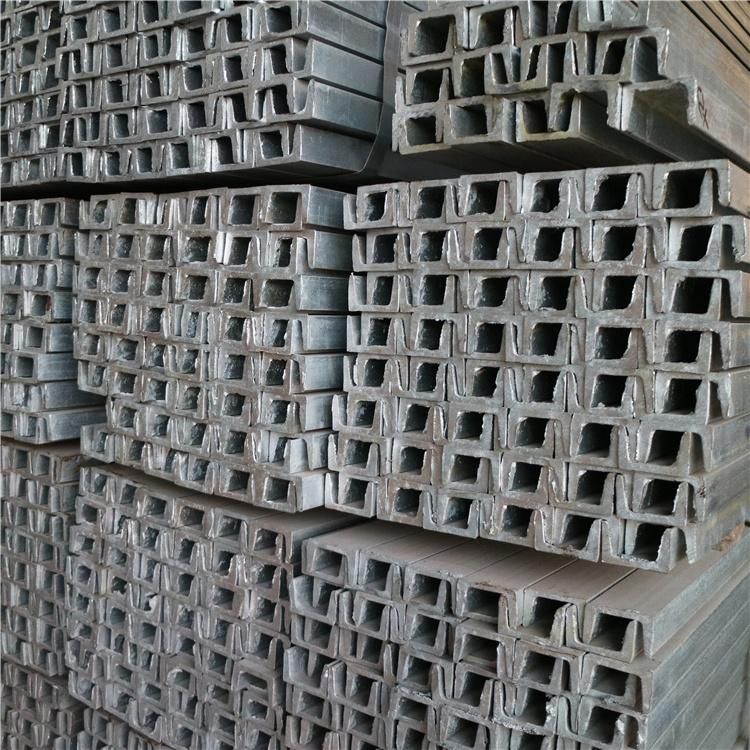

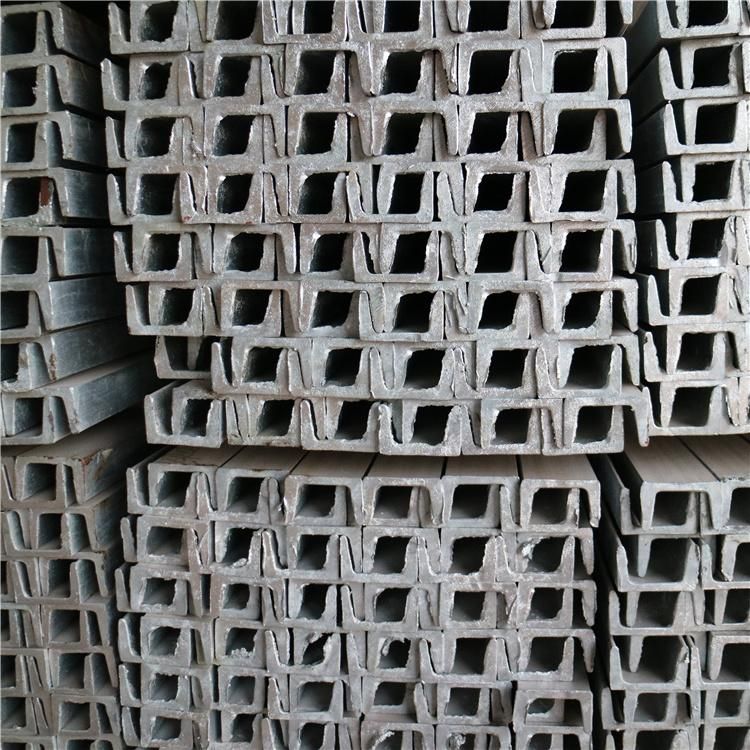

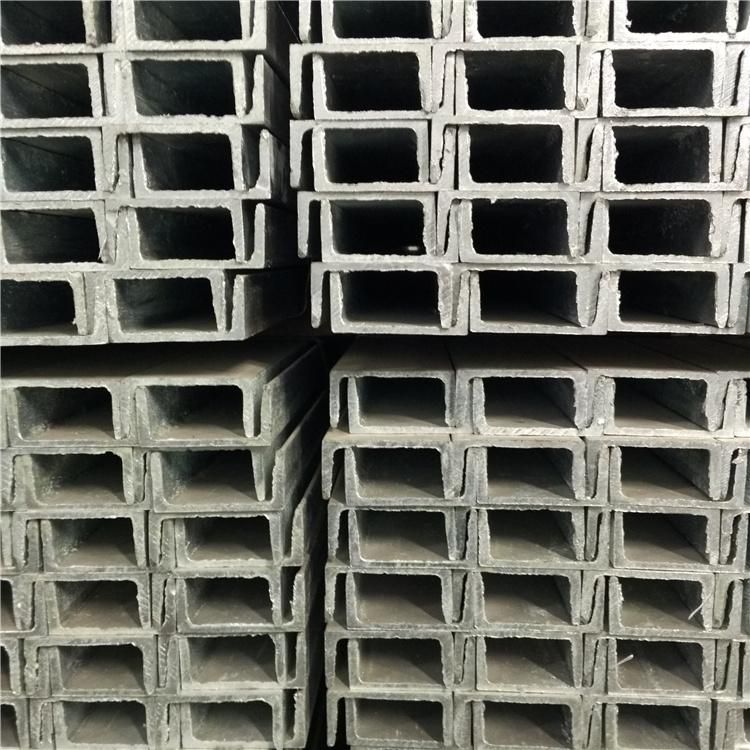

Product Show
1
1
1
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your MOQ?
A: Usually our MOQ is 5t. But if your quantity is small, the price may be a little higher. When there is a big quantity, the price will be quite lower.
Q:How to buy your ideal products?
A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
Q:How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.
Q:How to install after the goods destination?
A: We will provide installation instruction and video for you. Technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, wages will be provided by buyers.
Q:How to get an accurate quotation?
A:Product detail size & Length,product quantities,product material grade.
Q:What other items from this supplier?
A:Angle line structural steel, H beam, I beam, Channel. Square, rectangular, round hollow section pipe. Steel plate, checker plate, corrugated sheet, steel coil. Flat, square, round bar. Screw, Stud bolt, nut, washer, flange and other related pipe kits.
