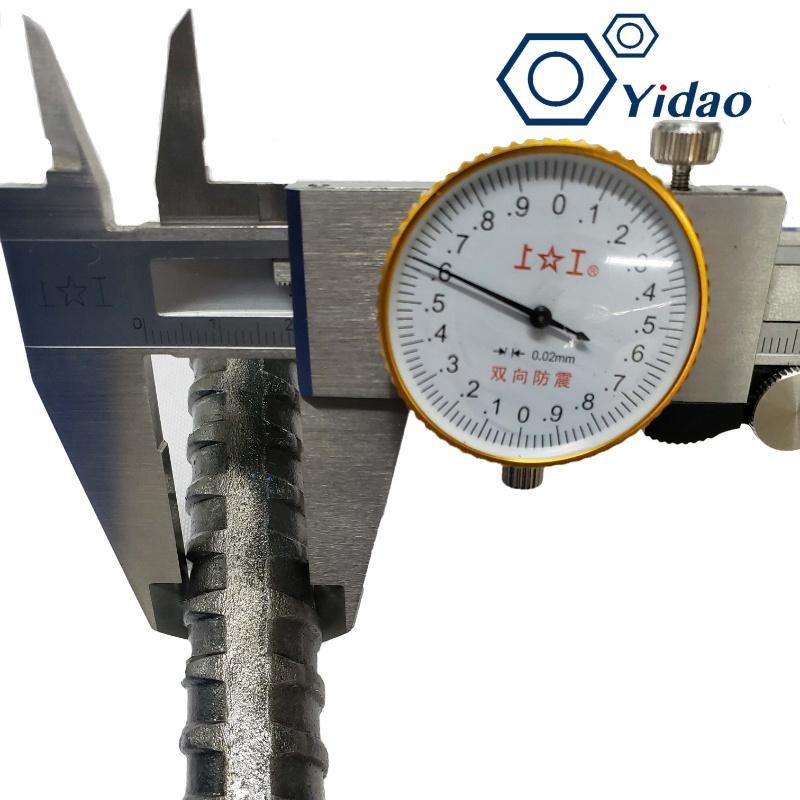

Yidao B500 Threaded Bar for Micropiles
Handan Yidao Metal Products Co., Ltd- Type：Carbon Steel Bar
- Standard：GB
- Composition：Ferrous Steel Scrap
- Technique：Hot Rolled
- Shape：Bar
- Surface Treatment：Color Coated
Base Info
- Model NO.：15-50mm
- Special Use：High-strength Steel Plate
- Application：Structural Steel Bar
- Length：1-12m Cutting as Demand
- Accessories：Nut, Connector, Plate, Spacer
- Yield Strength：500n,mm2
- Tensile Strength：630n,mm2
- Transport Package：Bundle
- Specification：D15,20,25,32,36,40,50mm
- Trademark：YD or OEM
- Origin：China
- HS Code：730840
- Production Capacity：5000ton,Month
Description
Product Description 36 40 1018 1257 8.41 10.34 509 628 641 792
1Fully threaded bar - can be cut and coupled at any point.
2 Robust threadform - ideal for construction site use.
3 Coarse pitch threadform with two flats - ensures self-cleaning of thread.

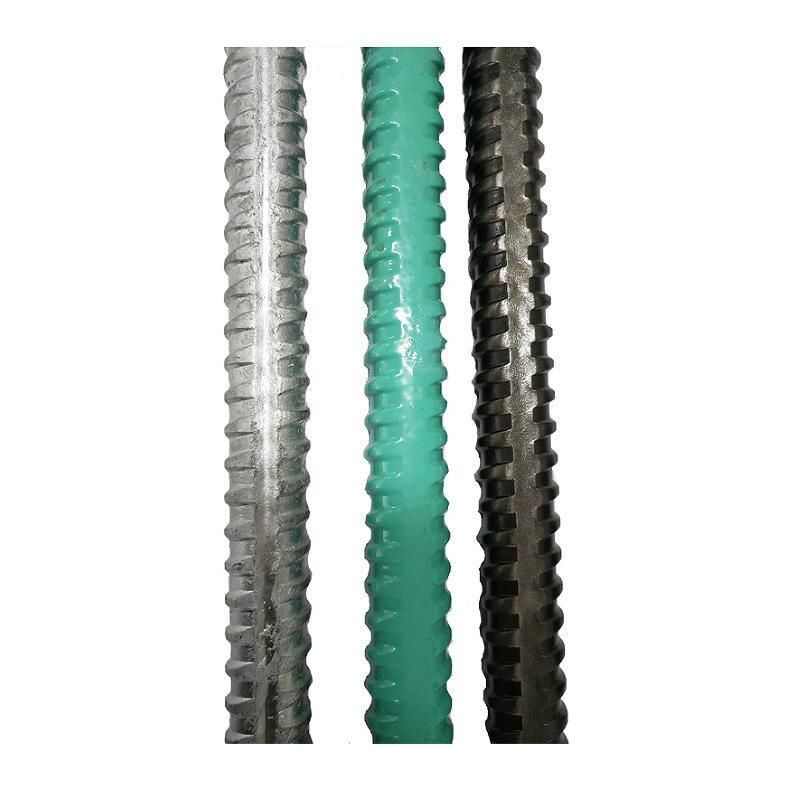

4 Fully galvanized systems - galvanized threadbars and accessories also available from stock.
500/630
Nominal Bar Dia D1
mm²
20
25
32
Nominal Section Area
mm²
314
491
804
Nominal Weight
kg/m
2.47
4.1
6.65
Yield Load
KN
157
245
402
Ultimate Load
KN
198
309
507

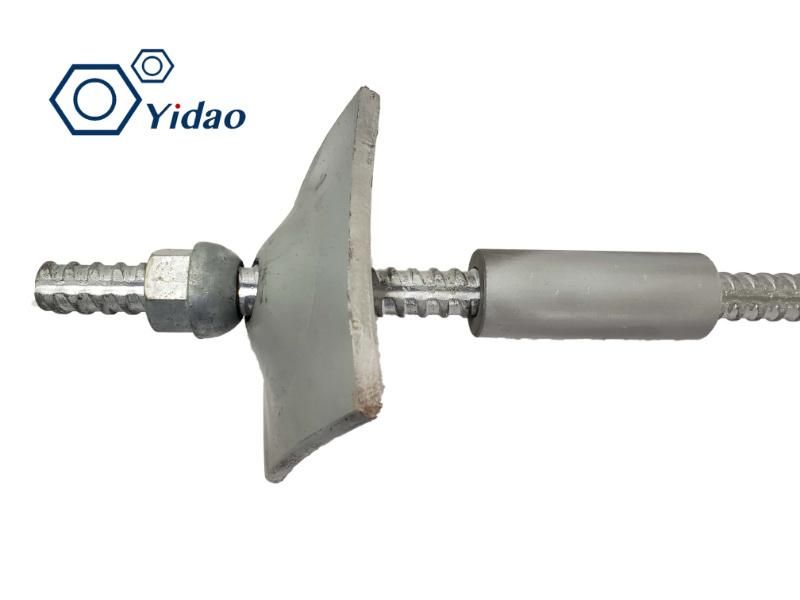

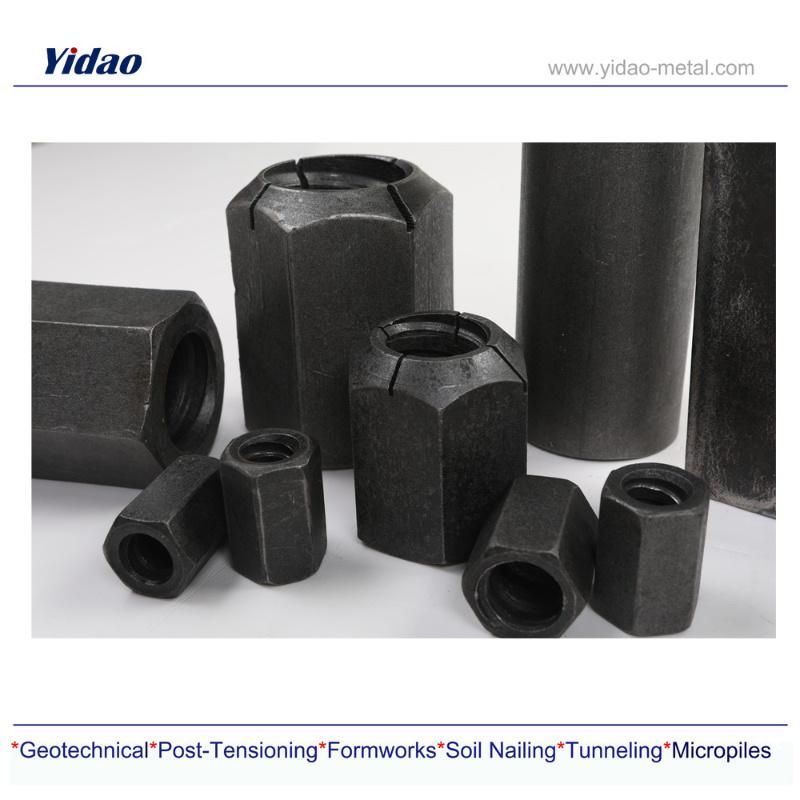

Accessories: Hex nut, spherical nut, dome nut, bearing plate, coupler, spacer etc.
All accessories avaible.
1Fully threaded bar - can be cut and coupled at any point.
2 Robust threadform - ideal for construction site use.
3 Coarse pitch threadform with two flats - ensures self-cleaning of thread.
4 Fully galvanized systems - galvanized threadbars and accessories also available from stock.
The corrosion protection depends on the required service life, the consequences of failure of a group of anchors and on prevailing environmental conditions.

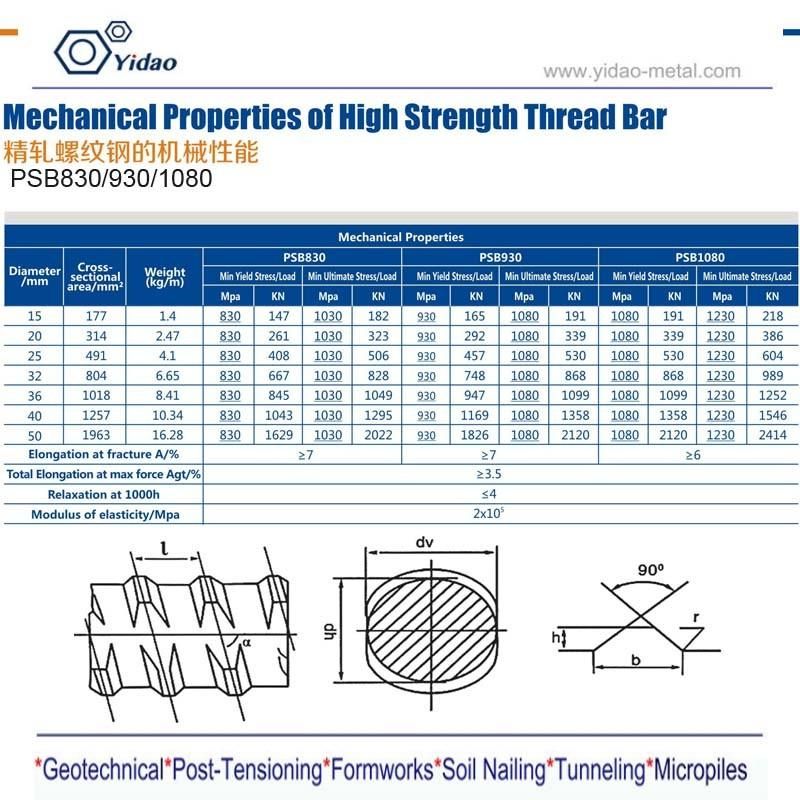

Other grade PSB830/1030, 930/1080, 1080/1230MPA available

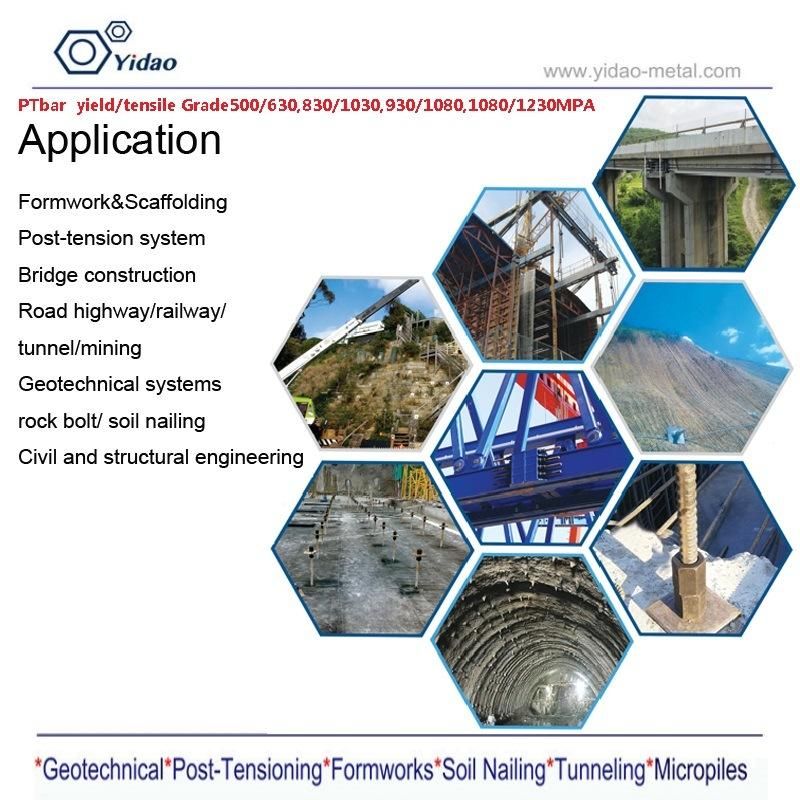

Application
Foundations (compressive load)
- Tensile piles (tensile load)
- Ideal for alternating tensile and compressive loadings
- Securing of building foundation walls, embankments, compacted soil areas,
- high-rise buildings, structures in seismic areas
