• Model NO.：1.6523,SAE8620,20CrNiMo
• Delivery condition：hot rolled, Annealed,black surface
• Quality Assurance：100% UT passed
• Delivery time：7days
• Condition：ready stock
• Payment terms：TT,LC
• Transport Package：Standard,Customized
• Specification：diameter 10-250mm
• Trademark：CF STEEL
• Origin：China
• HS Code：7228300000
• Production Capacity：1000t,Month

Basic Info.

Model NO. 1.6523/SAE8620/20CrNiMo Delivery condition hot rolled, Annealed,black surface Quality Assurance 100% UT passed Delivery time 7days Condition ready stock Payment terms TT/LC Transport Package Standard/Customized Specification diameter 10-250mm Trademark CF STEEL Origin China HS Code 7228300000 Production Capacity 1000t/Month

Product Description

SAE8620 1.6523 20CrNiMo Special Alloy Steel Construction Steel

Product Introduction
20CrNiMo is one of alloy construture steel according to Chinese Standard. Standard Code: A50202. The steel round bar is high hardenability,
without fragility after tempering,good weldability.Nice machinability and Cold strain plasticity.

8620 steel bar is a low carbon nickel chromium molybdenum alloy with good carburized properties, formability, and weldability.
This grade is a low-cost steel that is the most widely used carburizing alloy. Due to its nickel content,
this grade has a high strength case and core toughness. The chromium and molybdenum support carburizing, and give good surface hardness and wear.


Features

1. 1 Good machinability performance
2. 2. Good Cold strain plasticity
3. 3. Good weldability
4. 4. High hardenability

Similar Standards

Chinese	American	German	Japanese
GB	AISI	DIN	JIS
20CrNiMo	SAE8620	1.6523	/

Chemical Composition

Grades	C	Si	Mn	P	S	Cr	Mo	Cu	Ni
20CrNiMo	0.17-0.23	0.17-0.37	0.6-.95	≤0.035	≤0.035	0.4-.7	0.20~0.30	≤0.30	/

Mechanical Properties

Queching Temperature(ºC):850;Cold Media:oil

Tempering(ºC):200;Cold Media:air

Tensile strength σb (MPa):≥980(100)

Yield strengthσs (MPa):≥785(80)

Elongationδ5 (%):≥9

Reduction of area ψ (%):≥40

Akv (J):≥47

Applications
Widely used for stransmission system,motor of tractor and middle-small auto. Alternative 12CrNi3 to make higher class carburization and cyanide carburizing parts such as oil drilling,claws and cone for mining.
It is commonly used for carburized gears, pinions, shafts, bearings, piston rings, ring gears, crankshafts, etc.
Stock Size

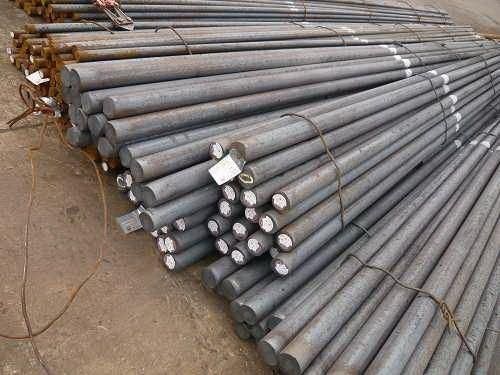

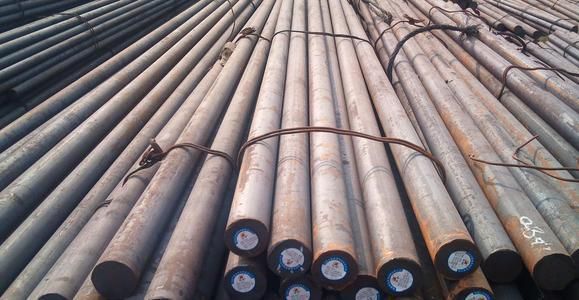

round bar

Diameter

12-280mm

Sizes and Conditions

Our steel materials are in different sizes and conditions specially catered to our customers' needs. They come in round bars,  flat bars, plates and blocks.
The conditions of the materials vary from pre-hardened, hot rolled,annealed, quenched and tempered to surface conditions such as black, pre-machined,griding and polish.
Why choose us?

Quality Assurance from government owned steel mills
At Changfeng , we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and  recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service

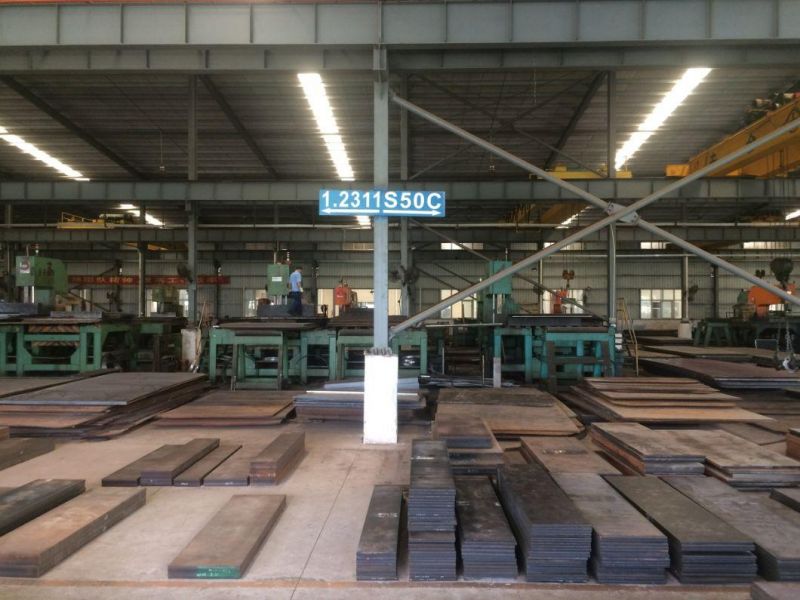

Workshop

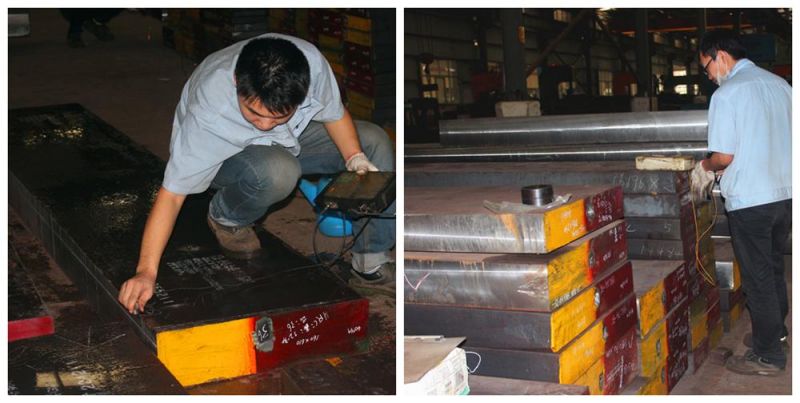

Quality Inspection

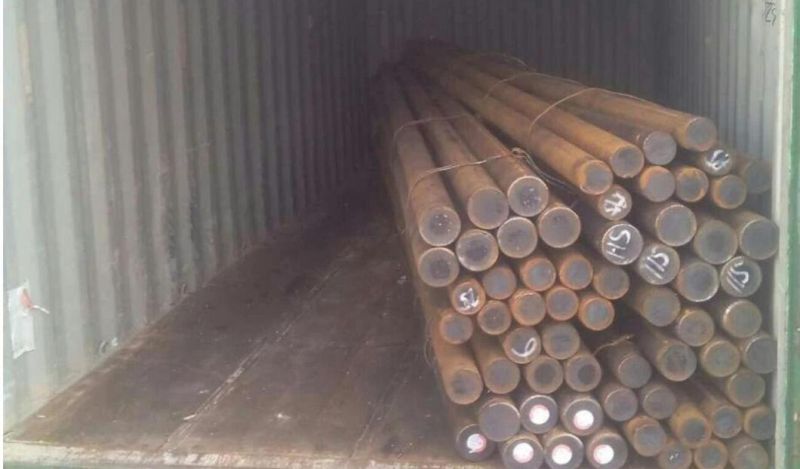

Loading

Contact Us
Contact us for the latest price and more details NOW!
