• Model NO.：PSB830
• Production Capacity：5000mt,Month

Basic Info.

Model NO. PSB830 Production Capacity 5000mt/Month

Product Description

high strength screw thread bar

Handan Yidao Metal products co.,ltd, located in Handan city, China.

Handan Yidao is a manufacturer of hot rolled screw thread bar
(diameter from 15mm to 50mm,grade PSB830, PSB930, PSB1080)and all related

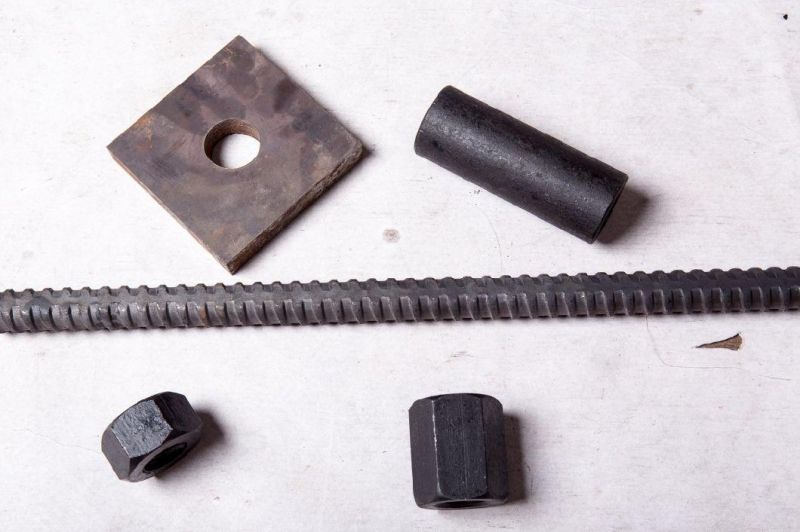

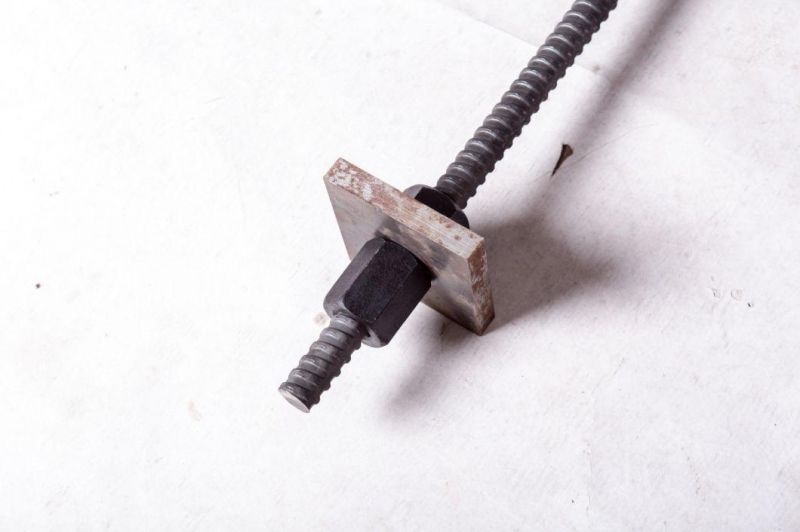

accessories(anchor hex nut, bearing plate, domed nut, and coupler).

Tie rods/Thread bars are used for soil nailing, formwork tie,tie back,tie
rod,scoffolding,post tensioning system,geotechnical,mining and tunneling,etc.
We has launched new product D15/17 TIE ROD (diameter 15mm, yield strength>830MPA, tensile strength>1030MPA) for customers.


The length of the finished thread reinforcement is usually 9 m and 12 m.
the THREAD BAR diameter is from 15MM TO 50MM

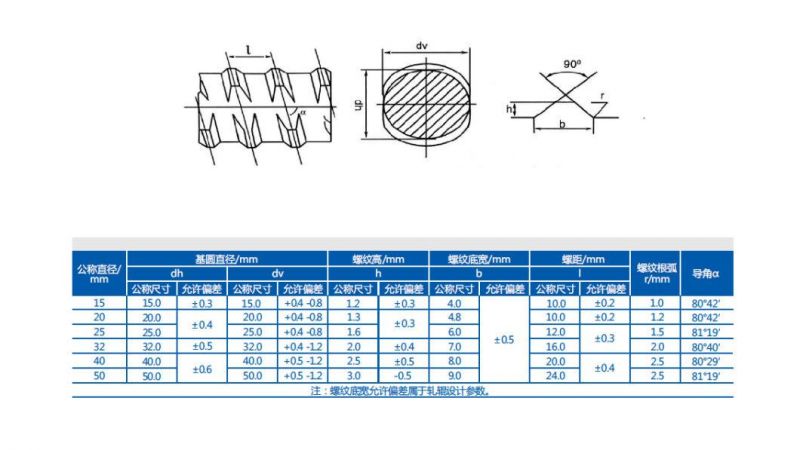

The grade/yield strength/tensile strength/post-fracture elongation is as follows:
PSB830, yield strength 830MPA, tensile strength 1030MPA, elongation after fracture 6%

PSB930, yield strength 930MPA, tensile strength 1080MPA, elongation after fracture 6%

PSB1080, yield strength 1080MPA, tensile strength 1230MPA, elongation after fracture 6%

The thread steel bar has no rib, which can be screwed by hex nuts
