• Model NO.：316TI
• Surface Treatment：Ap,Ba,Polished
• Transport Package：Woven Bags, Plastic Bags, Cap Ends, Plywood Cases
• Specification：GB, ASTM(ASME), EN, DIN, JIS and other internation
• Trademark：ZJDP
• Origin：Zhejiang, China
• Production Capacity：23000ton,Year

Basic Info.

Model NO. 316TI Surface Treatment Ap,Ba,Polished Transport Package Woven Bags, Plastic Bags, Cap Ends, Plywood Cases Specification GB, ASTM(ASME), EN, DIN, JIS and other internation Trademark ZJDP Origin Zhejiang, China Production Capacity 23000ton/Year

Product Description

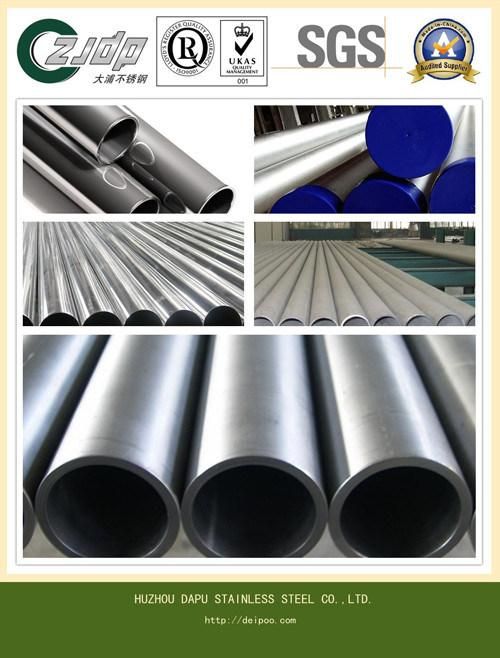

Stainless steel pipe and tube
Material:Yongxing Special Steel,Baosteel,TISCO,and so on.
Type:Austenitic stainless steel,Ferric/Austenitic stainless steel,Martensite stainless steel,welded stainless steel pipe tube or seamless stainless steel pipe tube
Grade:201,202,304,304L,316,316L,316Ti,316N,317,317L321,321H,347,
409,409L,410,410S,430,904,904L,S31803S,S32750,S32760.
Size:
Seamless pipe tube:OD(6mm-610mm);W.T(0.6mm-30mm)
Welded pipe tube:OD(8Mmm-3000mm);W.T(0.5mm-45mm)
Length:1M-13M,according to your requirement.
Torance:according to the Standard wich is stated in the order.
Payment:30T/T in advanced,the others should be payed against the copy of B/L,or depend on the discussion with each others.
Delivery Term: according to the quantities and the customers' needs.
Superiority:
Advanced production and inspection equipment
Good quality control system and service system
Full experienced in export business in stainless steel
Convenient location for transport
Flexible payment
Huge Supply Capacity Advantage, Timely and Effective Delivery.

Name	Stainless  steel  welded  pipe  and  tube
316Ti-chemical  composition  %	C                              Mn                        P                              S                              Si                            Cr                                Ni                                Mo                            Ti 0.03  max      2.00  max      0.045  max      0.030  max    0.75  max        16.0-18.0            10.0-14.0            2.00-3.00        5*(C+N)-0.70
316Ti-mechanical Properties (ASTM  A269)	Tensile  Strength                  Yield  Strength                        Elongation                                          Hardness min  Kis                                                min  Kis                                            in  2  in.   or  5  mm                            max                     Mpa                                                          Mpa                                                      min    %                                                        HRB             515                                                            205                                                            35                                                                      90
Supply  Capacity	15000  MT/Year
Steel  grade	TP201,   TP  202,   TP  301,   TP  302,   TP  303, TP  304,   TP  304L,   TP310S,   TP309S, TP316, TP316L,   TP316Ti  TP317, TP317L, TP321, TP347,   TP347H, TP410, TP430, TP901L, TP904L
Executive  Standard	GB/T14976-2002, GB/T14975-2002 ASTM/ASME  A312/SA312, ASTM/ASME  A269/SA269, ASTM/ASME  A213/SA213, DIN  17440, DIN  17456-85, JIS  G  3459, JIS  G  3463, JIS  G  3448  JIS  G  3446.
Outside  diameter	6mm-610mm
Wall  thickness	0.6mm-30mm
Length	1M-13M  according  to  the  requiremet  of  customers
Tolerance  of Dimensions (ASTM  A269)	Outerside  Diameter              Tolerance  of  Outerside        Toleerance  of  Wall in[mm]                                      Diameter, in[mm]                      Thickness, % 1/4-1/2[6.35-12.7]                    ± 0.005[0.13]                                  ± 15 1/2-1  1/2[12.7-38.1]                ± 0.005[0.13]                                  ± 10 1  1/2-3  1/[38.1-88.9]              ± 0.010[0.25]                                  ± 10 3  1/2-5  1/2[88.9-139.7]          ± 0.015[0.38]                                  ± 10 5  1/2-  8[139.7-203.2]              ± 0.030[0.76]                                  ± 10
Test	Chemical  Analysis. Hydrostatic  or  Nondestructive  Electric  Test, Intergranular  Corrosion  Test, Flaring  Test, Flattening  Test, Flange  Test, Grain  Size  Test, and  so  on
Certificate	ISO9001: 2008, PED, SGS, and  so  on
Technique	Cold  Rolled, Hot  Rolled,   Cold/Hot  Rolled, Cold  Drawn,
Surface  treatment	AP, BA, Plolished, according  to  the  customer' s  requirements.

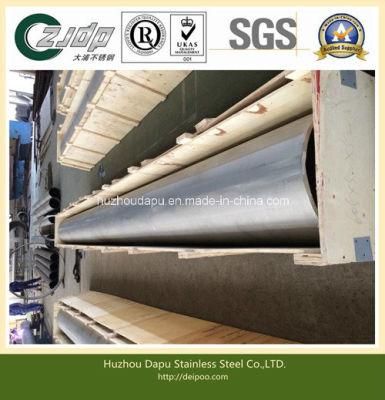

Packing	Wooden  case, PVC  packing,   Plywood  case, wooden  pallet, and  others  standard  export  packing
Application	Chemical  industries       Pulp& paper  making  machine       Coastal  architectural  paneling,   railings  &   trim             Heat  exchangers, condensers, evaporation  equipments.       Food, drink, beer  making  machine  includ  container  and  transportation.       Oil& gas  industries       Dyeing  industries
Payment	30%  T/T  payed  in  advanced, the  balance  should  be  payed  against  the  copy  of  B/L
