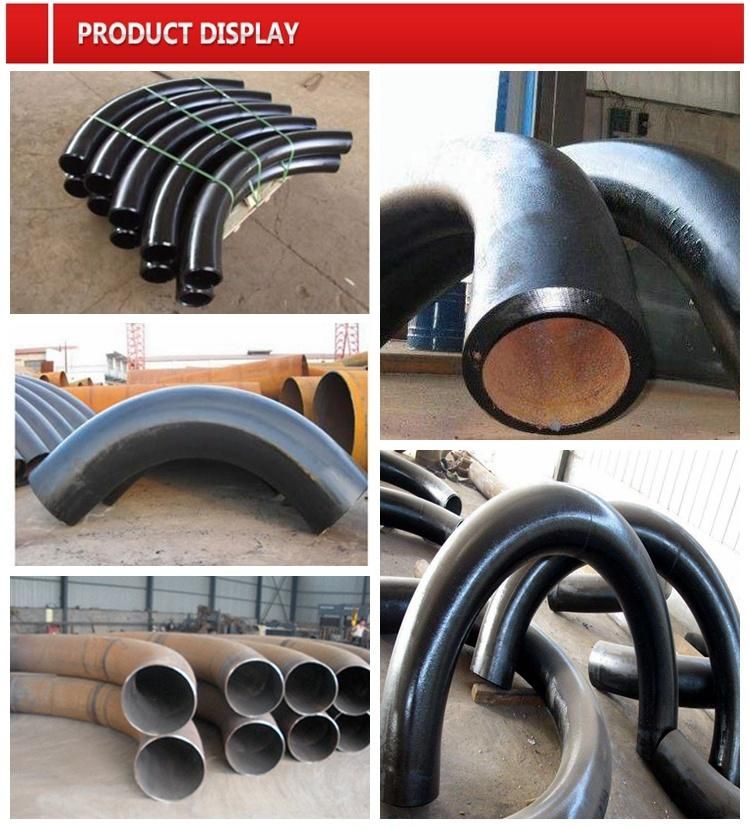

• Model NO.：KM-307
• Bend Radius：3D 5D 7D Bend Pipe
• Delivery Time：20-35 Days Ex Mill
• Loading Port：Chinese Main Port
• Bend Angle Tolerance：Not Exceed +- 1 Degree
• Certificate：ISO TUV SGS BV
• Testing Way：The Third Party Test
• Bend Angle：30 ; 45 ; 60 ; 90 ; 120; 180 ; Ect.
• Bending Radius：R=3D, 4D, 5D, 6D, 7D, 8d, 9d, 10d
• MOQ：100 PCS
• Payment Term：L,C T,T
• Degree：1-180deg
• Transport Package：Standard Sea-Worthy Package
• Specification：ISO
• Trademark：KM
• Origin：China
• Production Capacity：1000tons,Month

SpecificationsASTM B366 & ASME SB366DimensionsASME/ANSI B16.9 / B16.28 and MSS SP-43 / SP-75GradesHastelloy C276, C22, C4, C2000, B2, B3, X Pipe BendSizeSeamless Pipe Bends (1/2″ - 24″), ERW / Welded / Fabricated Pipe Bends (2″ - 36″)Outer Diameter38.0 mm - 206.0 mmWall Thickness1.5 mm / 2.0 mm / 3.0 mm - greater wall thickness at requestBend Radius75 / 100 / 150 / 250 / 300 / 500 / 800 / 1,000 / 1,200 / 1,500 mmBending Radius(R)R=1D, 2D, 3D, 5D, 6D, 8D, 10D or CustomBending angle (θ)15°, 30°, 45°, 60°, 90°, 135°, 180°

ASME SB366 Hastelloy Buttweld Bend Equivalent Grades

STANDARDWERKSTOFF NR.UNSJISGOSTENORHastelloy C2762.4819N10276NW 0276ХН65МВУNiMo16Cr15WЭП760Hastelloy C222.4602N06022NW 6022-NiCr21Mo14W-Hastelloy B22.4617N10665----

ASTM B366 Hastelloy Piggable Pipe Bend Manufacturing Standards:

ASME Pipe BendANSI B16.9, ANSI B16.28, MSS-SP-43DIN Pipe BendDIN2605, DIN2615, DIN2616, DIN2617, DIN28011EN Pipe BendEN10253-1, EN10253-2ASME B16.9Factory-Made Wrought Fittings ButtweldingASME B16.25Buttwelding Ends ASME B16.28 - Wrought Steel Short Radius Elbows and Buttwelding ReturnsMSS SP-43Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
