• Model NO.：WSD-3
• Special Use：Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
• Stock：Stock
• Width：600mm,688mm,736mm,915mm
• Thickness：0.8mm,1.0mm,1.2mm,1.5mm
• Zinc：195g,235g,275g
• Aluminium：55%
• Surface：Spangle
• Transport Package：Wrapped Plastic
• Specification：915mm
• Trademark：WISKIND
• Origin：China
• Production Capacity：500000

Basic Info.

Model NO. WSD-3 Special Use Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel Stock Stock Width 600mm/688mm/736mm/915mm Thickness 0.8mm/1.0mm/1.2mm/1.5mm Zinc 195g/235g/275g Aluminium 55% Surface Spangle Transport Package Wrapped Plastic Specification 915mm Trademark WISKIND Origin China Production Capacity 500000

Product Description

55% Aluminium Zinc galvanized steel as roof deck and floor deck without concrete slab

Wiskind group is the biggest manufacturer of Roof deck and composite floor deck .it is wide variety of steel deck products in building market.
Steel deck is a structural panel element acts as the steel surface of a roof or floor .It is roll formed from structural quality galvanized steel sheet and is engineered to span over joist or purlins.
Variations in the thickness ,shape and depth of the deck can be utilized to meet a variety of loading conditions and spans .The deck can also be fastened to the supporting structure to  enable it act as a diaphragm and provide lateral bracing for the structure.








Steel deck assemblies are divided into two categories:Roof deck and Composite floor deck .

Roof deck:
Steel roof deck is the predominant structural component used in virtually all flat roofs.The deck is a structural panel that spans over roof joist or purlins to provice a flat surface on which to apply the weatherproof roofing.
Steel deck is the substrate for most roofing materials such as built-up roofing ,membrane roofs or insulated sheet steel roof assemblies. Roof deck has also been used in more unusual configurations that may be sloped or curved.

Composite Floor deck
When steel floor deck was first introduced ,it was primarily used as a permanent,or "stay-in-place"form for a reinforced concrete poured in place slab.There were certain advantages in cost and a shorter construction time for this type of concrete formwork over traditional removable formwork.There were some situations,however,where the deck did not have a concrete cover and was the sole load carrying element.
The name for this type of deck is floor deck ,or non-composite deck. In the 1960's ,floor deck products were developed that incorporated mechanical means of interlocking the concrete and the steel deck.By interlocking the steel deck and the concrete slab,the deck became the positive moment reinforcement in the reinforced concrete slab.In addition, the deck also acted as the formwork for the concrete.The resulting combined section has become known as a composite slab and the steel deck as a composite deck .The plain steel floor deck is no longer produced in any significant quantity in favour of the more efficient composite deck.

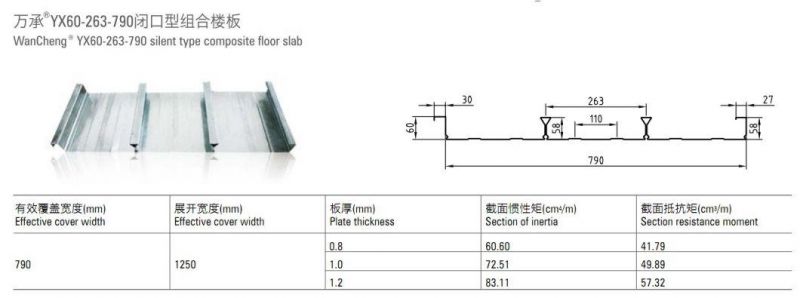

Wiskind Wancheng Combined floor deck is developed by Wiskind with the help of Tianjin University ,This floor deck is connected to concrete slab .Wiskind floor deck fully using the advantages of the two material .wancheng steel deck has advantages :

1. Versatility: Wiskind floor deck in a range of depths and different rib spacing. Roof deck can also be supplied as acoustical deck with perforations in the web elements to attenuate sound.

Variety of thickness to meet most structural requirements.This extensive choice of options makes steel deck applicable to a wide range of projects and structural designs.

1. High strength to weight ratio: The strength of steel is used with maximum efficiency in the design and fabrication of steel deck ,resulting in products with a high strength-to-weight ratio.Consequently,delivery,erection and structural framing costs can be lower than other systems.
2. Aesthetics:Although steel deck is primarily a structural component,it is visually attractive when left exposed to the interior of the building. With the properly specified prefinished coating,steel deck is easy to maintain,durable and aesthetically pleasing.
3. Required fire resistance ratings: it is available for many standard roof and floor assemblies incorporating steel deck .
4. Uniform quality:Through engineering and continuously refined production techniques,Wiskind floor deck and roof deck conforms to explicit industry standards.
5. Proven Durability:Steel deck has a successful service history of over 60 years,which is indicative of the products durability.
6. Economy and Value: Value is determined by combining initial costs,life-cycle costs,and overall performance.steel deck assemblies are the best value in roof and floor designs. They combine low cost with top performance.
