GB/T 24186 Nm360 Abrasion Resistant Steel Plate
Jingjiang Trust Trading Co., Ltd.- Type：Sheet
- Standard：ASTM, DIN, JIS, BS
- Composition：Ferrous Steel Scrap
- Technique：Hot Rolled
- Shape：Plate
- Surface Treatment：Coated
Base Info
- Model NO.：NM360
- Special Use：High-strength Steel Plate
- Application：Ship Plate
- Product Name：GB,T 24186 Nm360 Abrasion Resistant Steel Plate
- Grade：Metal
- Thickness：≤120mm
- Delivery Condition：Q Q+T Ar
- OEM：Support
- Part：Abrasion Resistant Steel Plate
- Material：Abrasion Resistant Steel
- The Application：Mine and Engineering Machinery
- Hardness(Hb)：450-540
- Transport Package：Wooden Case
- Specification：CCS, ABS, GL, NK, BV, LR, DNV, RINA
- Trademark：TRUST
- Origin：China Jiangsu
- Production Capacity：10000PCS,Month
Description
Product
Steel Plate&Sheet
Standard
GB/T700-2006,ASTMA283/A283M-03,ASTMA572/A572M,JISG3101-2004,SS400,
JIS G3135-1986,SPEC590,EN10025/2-2004,S235JR or S235J2,E335 or S335JR
Width
500-2000mm
WT
0.5 -60mm
length
2000-6000mm
Applications range
Construction plate,boiler plate,container plate,shipbuilding plate,all kinds of industries and manufacturing structural applications.
MOQ
5 ton / according to customers' requirement
Quality
good attestation of honour choosed by customers SGS
Supply capability
5,000 ton / month
Key to success
advanced technique and service and low price
Authentification
ISO9001:2008
Market
North/South America, Europe, Asia,Africa,Mid East,ect.
Packaging
Standard seaworthy packing / according to the customers' requirements
Port
SHANGHAI
Delivery term
T/T,L/C
30% deposit the balance before shipment,the balance paid by the copy of B/L OR L/C at sight
Delivery time
In 15 - 45 days after contract
Packaging & Delivery
| Packaging Details: | The package of plastic sea kayak canoe with pedal for fishing/matches/drifting: Standard export packing, or according to client's requirements. |
|---|---|
| Delivery Detail: | Shipped in 15-20 days after payment. |

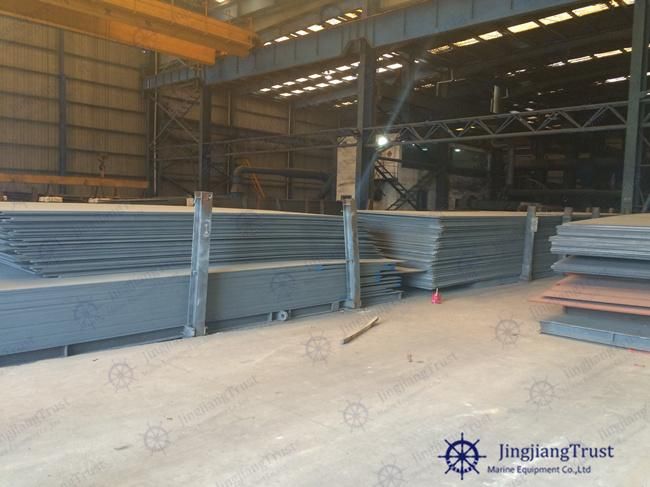

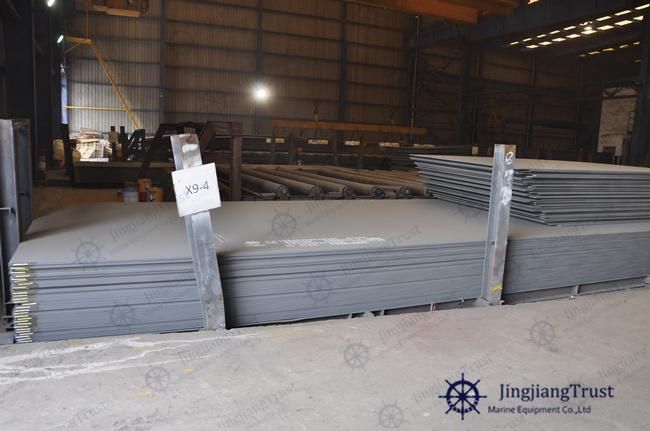

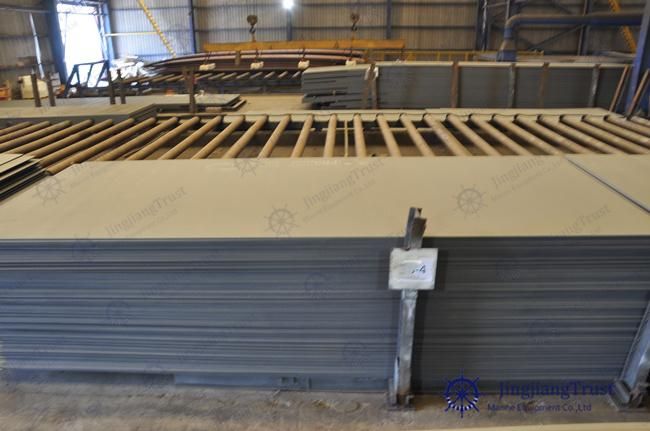

Detailed imamges
(1).Thermal Power Station:Medium speed mill lining plate of coal machine barrel body, fan impeller nest shell, precipitator inlet flue gas and ash duct, bucket wheel stacker and Reclaimer lining plate, separator is connected with a pipe, coal crusher lining plate, coal scuttle and crusher lining, burner, falling coal hopper and a funnel liner plate, air pre heater bracket protecting tile separator guide to leaves. The above parts of the wear resistant steel plate hardness and wear resistance is not too high, can be used in the thickness of the wear-resistant steel 6-10mm.
(2).Coal Station:Feeding trough and a funnel lining, hopper liner, fan blades, pusher plate, cyclone dust collector, coke guide liner, lined ball mill, drill stabilizer, screw feeder bell and the base, kneading machine bucket lined, ring feeder, turn trolley floor. Coal yard work environment is bad, of the wear resistant steel plate corrosion resistance and abrasion resistance to have certain requirements, it is recommended to use wear plate thickness 8-26mm.
(3).Concrete Station:Chute lining, end of the bushing, cyclonic dust collector, select powder machine blades and vanes, fan blades and inner lining, recovery bucket lined with, screw conveyor floor, piping components, frit cooling lining disk conveying chute lining board. These components also need to wear resistance, corrosion resistance is better than a little wear-resistant steel plate, can be used for the thickness of the wear-resistant steel 8-30mmd.
(4).Loading Machine:Unloading mill chain plate, hopper liner, grab the edge plate, automatic tipper tipping plate, truck body. This requires that the wear resistance and high hardness of wear-resistant steel plate, it is recommended to use the thickness of wear-resistant steel 25-45mm.
(5).Mining Machinery:Mine material, stone crusher lining board, blade, conveyor lining plate, baffle. Such components require extremely high wear resistance, can be used in the thickness of the wear resistant steel 10-30mm.
(6).Construction Machinery:Cement push material machine toothed plate, concrete mixing building, mixer liner, liner plate precipitator, the brick mould plate. Recommended for the use of thickness of the material is 10-30mm wear-resistant steel plate.
(7).Engineering Machinery:Loader, bulldozer, excavator bucket plate, side edge plate, bottom plate, bucket blade, rotary digging drill rod. Such machines require a particularly hard and wear resistant steel plate, which can be used for high strength and wear resistant steel plate 20-60mm.
(8).Metallurgical Machinery:Iron ore sinter machine, conveying elbow, iron ore sintering machine lining plate, scraper machine. Because of this kind of machinery need to be resistant to high temperature, high hardness wear resistant steel plate.
(9).Others:Wear resistant steel plate can be application in sand mill barrel body, blades, all freight yard and dock mechanism so components, bearing structure, structure of railway wheel, roll and.
