• Model NO.：KM-170223
• Special Use：Mold Steel
• Dimension：50-500mm
• Production Process：Eaf+Lf+Vd+ESR+Forged+Annealed
• Material：100cr6,4140,4142,42CrMo4,1.7225,Scm440,4130,Scm430
• Ut Test：According to Sep 1921-84 Group C,C D,D Class
• Hardness：60~390hb
• Surface：Black,Grinding,Bright,Polish
• Loading Port：China Main Port
• Delivery Condition：Hot Rolled,Cold Drawn,Forged
• Transport Package：in Bundle, in Bulk
• Specification：ANSI, JIS, GB
• Trademark：Kingmetal
• Origin：Made-in-China
• HS Code：722870
• Production Capacity：3000 Tons,Month

Material100cr6Chemical CompositionMechanical Properties(In Quenched & Tempered State)C0.95-1.05Tensile strength(MPA)----Si0.15-0.35Yield strength (MPA)--Mn0.25-0.45Elongation(δ5/%)--Cr1.40-1.65Reduction in Area (ψ/%)--Mo≤0.10Impact (J)--P≤0.025HardnessHB170-207
HB207-229
HB270-390
HB229-285
HRC62-66
HRC61-66
HRC≈67S≤0.025Ni≤0.30Cu≤0.25Ni+Cu≤0.502.Product Application Areas:
Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical
industry,electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,
transportation, and medical instruments, etc.
3.Similar steel grade & equivalent steel materials:

USA	Japanese	Gemany	British	France	International	Chinese
ASTM&AISI&SAE	JIS	EN DIN	EN BS	EN NF	ISO	GB
52100	SUj2	100Cr61.2067	100Cr61.2067	100Cr61.2067	------	GCr15

Product Sales Information:

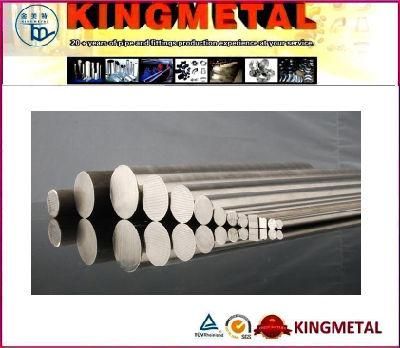

Material	100Cr6 steel round bar
Size	Diameter:20mm-1000mmLength:500mm-6000mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time	In 10-50 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ	1 Ton

Company Main Products:

Alloy Steel	4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6,1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236,
Tool Steel	H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
Bearing Steel	GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel	9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,SUP10,51CrV4,1.8159
Stainless Steel	321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,
