• Service：OEM,ODM
• Our Advantage：One-Stop Service
• Sample：Free
• Zinc Coating：Z30-Z275, Az30-Az150
• Mtc：Available
• Transportation：by Sea Air and Train
• Grade：SGCC,Sgcd1,Dx51d,Dx52D,Dx53D,ASTM A653,S350,G450
• Coil Weight：5-25mt
• Spangle：Regular, Mini, Zero
• Width：600mm-1500mm
• Transport Package：Iron Belt Fastened, or Customize Package.
• Trademark：AnSteel, ShouSteel, BenSteel
• Origin：Shanghai, China

Nominal thickness =< 30(mm) CEV max = 0.45

C

Si

Mn

P

S

N

Cu

CEV

max   0.24

max   0.55

max   1.6

max   0.04

max   0.04

max   0.012

max   0.55

max   0.47

2. Mechanical properties of grade S355JR

Nominal thickness (mm)

to 16

16 - 40

40 - 63

63 - 80

80 - 100

100 - 125

ReH - Minimum yield strength (MPa)

355

345

335

325

315

295

3.

Nominal thickness (mm)

3 - 100

100 - 125

Rm -Tensile strength (MPa)

470-630

450-600

Nominal thickness (mm)

3 - 40

40 - 63

63 - 100

100 - 125

A - Minimum elongation Lo = 5,65 √ So (%)

22

21

20

18

Temperature

-20

0

20

Notch impact test. Min. absorbed energy

27

27

27

 4. Application : S355 is used in almost every facet of structural fabrication.

 Typical applications include:

Δ Structural steelworks: bridge components, components for offshore structures

Δ Power plants

Δ Mining and earth-moving equipment

Δ Load-handling equipment

Δ  Wind tower components

5.Thickness:1.0-1000.0mm

6. Width: 1000mm, 1219mm, 1500mm, 1800. And length: Could be cut into any size as per customer's request. Usually our common sizes: 1219mm*2438mm (4*8ft), 1219mm*3048mm (4*10ft) and 1000mm*2000mm.

7. Remarks
1. Payment terms : T/T ;
2. Port of shipment : Tianjin Xingang port , Shanghai port , Qingdao port ;
3. Delivery time : 15 days ;
4. Package : Iron belt fix ,load in container or bulk ;

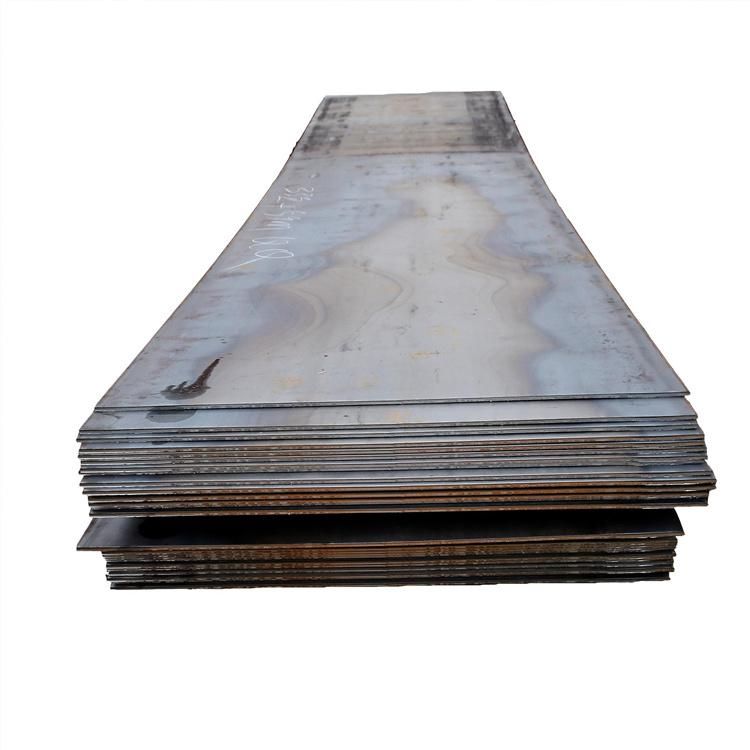

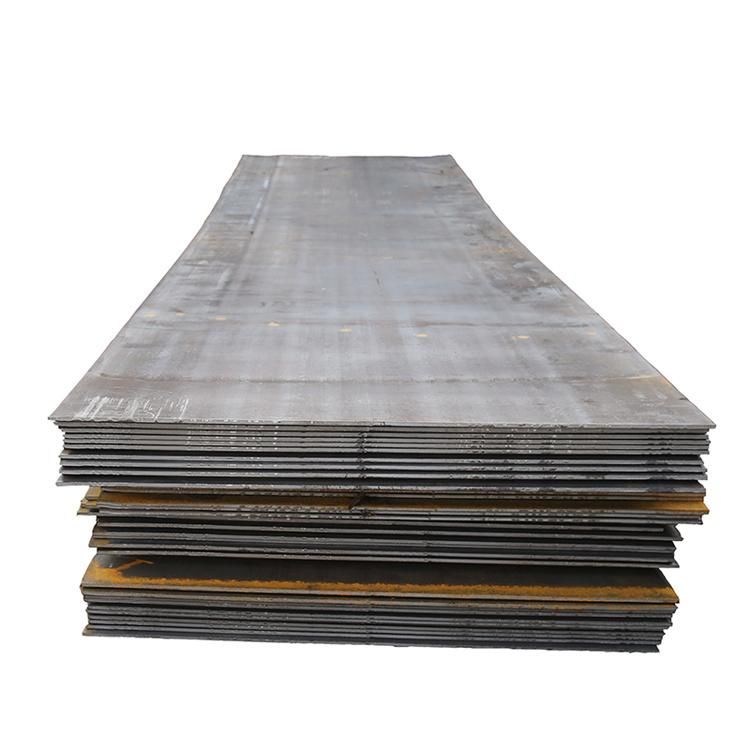

 Product show

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra?

A:Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your MOQ?

A: Usually our MOQ is 5t. But if your quantity is small, the price may be a little higher. When there is a big quantity, the price will be quite lower.

Q:How to buy your ideal products?

A: You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.

Q:How to pay?

A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

Q:How to install after the goods destination?

A: We will provide installation instruction and video for you. Technicians will be sent to help you if it is necessary. However, the visa fee, air tickets, accommodation, wages will be provided by buyers.

Q:How to get an accurate quotation?

A:Product detail size & Length,product quantities,product material grade.

Q:What other items from this supplier?

A:Angle line structural steel, H beam, I beam, Channel. Square, rectangular, round hollow section pipe. Steel plate, checker plate, corrugated sheet, steel coil. Flat, square, round bar. Screw, Stud bolt, nut, washer, flange and other related pipe kits.
