• Model NO.：DX52D
• Stock：Stock
• Surface：Zinc Coated
• Transport Package：Standard Export Packing
• Specification：ISO 9000, ISO14001, EN10142
• Trademark：DINGANG
• Origin：China
• HS Code：72104900
• Production Capacity：300, 000tons,year

Basic Info.

Model NO. DX52D Stock Stock Surface Zinc Coated Transport Package Standard Export Packing Specification ISO 9000, ISO14001, EN10142 Trademark DINGANG Origin China HS Code 72104900 Production Capacity 300, 000tons/year

Product Description

Features of the Galvanized Steel Coil:
1)Thickness range of the galvanized steel coil: 0.14-3.0mm
2)Thickness tolerance of Galvanized Steel Coil: +/-0.03mm
3)Width range of the galvanized steel coil: 800-1250mm
4)Width tolerance: +/-0.15mm
5)Zinc coating: 60GSM-250GSM
6)Surface treatment of the Galvanized Steel Coil: Chromated, unoiled/oiled, minimum or regular spangle
7)Quality of the galvanized steel coil: Commercial quality (soft and hard), lock forming quality, drawing Quality, structural quality as per JIS G 3302,
Standard: GB/T2518-2004 (Equivalent to ASTM A653, EN10142, JIS G3302)
Steel Grade: Q195(Equivalent to SGCC, DX51D+Z)
8) Surface finish of the Galvanized Steel Coil: Regular spangle, minimized spangle, zero spangle, galvannealed
9) Surface treatment: Chromated, non-treated (dry), organic
10) Oiling of the Galvanized Steel Coil: Unoiled or oiled
11)Internal Diameter of the Galvanized Steel Coil: 508 mm.

Standard	ASTM  A653,   JIS  G3302,   GB/T3830-2006
Grade	SGCC, DX51D, A653, SGCH, Q235B ,SPCC,SPCD,DC01,ST12,ST13,Q195,08AL
Thickness	0.14-3.0mm
Width	20-1250mm
Base  metal	Galvanized  steel  coils,   Alumzinc  steel  coils
Zinc  coating	30-275g/M2
Coil  ID	508mm/610mm

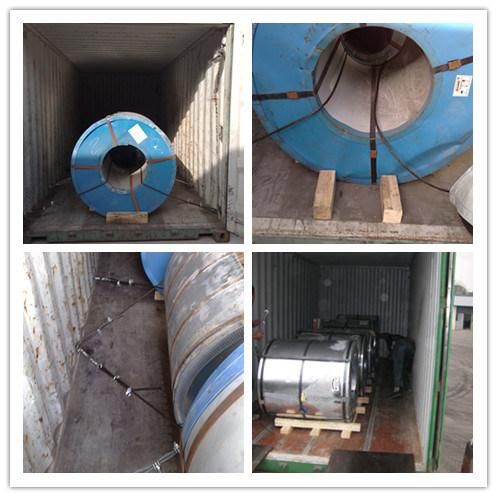

Packing	Standard  seaworthy  export  packing:   3  layers  of  packing,   inside  is  kraft  paper, water  plastic  film  is  in  the  middle  and  outside  GI  steel  sheet  to  be  covered  by  steel  strips  with  lock, with  inner  coil  sleeve.
Delivery	Within  10-30days  after  signing  contract
Price	FOB&   CNF&   CIF  price
Payment  terms	TT  or  LC
Capacity	30000MT  per   month
MOQ	25MT/20GP
Usage	construction, the  manufacturing  of  cars,   ships,   containers  and  household  electric  appliances,
	other  industries  usage.
