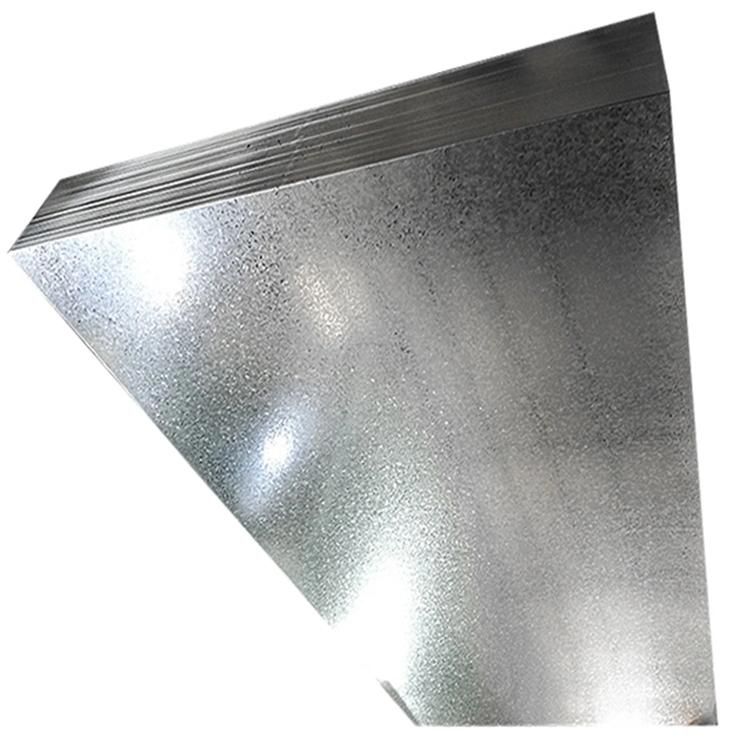

High Quality DC01 DC02 DC03 DC04 Hot Rolled Galvanized Steel Coil Factory Galvanized Steel Coil Chemical Composition
Wuxi Hengchengtai Special Steel Co., Ltd.- Type：Gi Sheet
- Standard：AISI, ASTM, DIN, JIS, GB, BS
- Composition：Galvanized Steel Plate
- Technique：Hot Galvanized
- Shape：Flat
- Surface Treatment：Galvanized
Base Info
- Special Use：High-strength Steel Plate, Wear Resistant Steel, Silicon Steel, Cold Heading Steel, Free Cutting Steel, Mold Steel
- Application：Construct Decoration
- Zinc Coating：60-275G,M2
- Length：Requirement
- Wall Thickness：0.2-30
- Width：600mm-1500mm
- MOQ：1ton
- Processing Service：Bending Cutting Decoiling Welding
- Testing：Accept Third Party Inspection
- Deliver Status：Hot Rolled Cold Rolled
- Delivery Time：7-15days
- Transport Package：Waterproof Package
- Specification：0.12-2.0mm*600-1500mm
- Trademark：ma steel
- Origin：Wuxi, China (Mainland)
- HS Code：7219340000
- Production Capacity：50000piece,Year
Description
GradeQ195,Q215,Q235,08AL,SPCC,SPCD,SPCE,SPCEN,ST12,ST13,ST14,ST15,ST16,DC01, DC03,DC04,DC05,DC06 Standard ISO,JIS,ASTM,AS EN Mechnical Commercial / Drawing / Deep Drawing /Extra Deep Drawing/Structural quality Surface treatment Chromated and oiled, and ant-ifinger Hardness Softy, half hard ,hard quality Thickness 0.12-6.0mm Width 600-1500mm Coil weight 3-8MT/Coil or as your request MOQ 1MT Packaging Export standard, seaworthy ID 508mm or 610mm Trade Term FOB, CFR, CIF Transport Type Container, bulk and train Loading port Tianjin, Qingdao,Shanghai Payment terms T/T, L/C at sight,West Union,D/P,D/A,Paypal Delivery time 15-35 days after confirmed order
Chemical Composition
Mechanical Properties
FAQ
Chemical Composition
| Grade | C | Mn | P | S | Alta |
| DC01, SPCC | ≤0.12 | ≤0.60 | ≤0.045 | ≤0.045 | ≥0.020 |
| DC02, SPCD | ≤0.10 | ≤0.45 | ≤0.035 | ≤0.035 | ≥0.020 |
| DC03, SPCE | ≤0.08 | ≤0.40 | ≤0.030 | ≤0.030 | ≥0.020 |
| DC04, SPCF | ≤0.06 | ≤0.35 | ≤0.025 | ≤0.025 | ≥0.015 |
Mechanical Properties
| Grade | RCL(Mpa) | RM(MPa) | A80mm(%) | R90 | N90 |
| DC01 | 140~280 | 270~410 | ≥28 | ||
| DC02 | 140~240 | 270~370 | ≥34 | ≥1.4 | |
| DC03 | 120~210 | 270~350 | ≥38 | ≥1.8 | ≥0.18 |
| DC04 | 120~180 | 270~330 | ≥40 | ≥2.0 | ≥0.20 |
| SPCC | 130~300 | 270~410 | |||
| SPCD | 120~240 | 270~370 | ≥1.3 | ||
| SPCE | 120~210 | 270~350 | ≥1.8 | ≥0.18 |
