• Usage：Pipeline Transport, Boiler Pipe, Oil,Gas Drilling, Food,Beverage,Dairy Products, Chemical Industry, Mining
• Section Shape：Round
• Size：1,8"-48"
• W.T.：Sch5s-Sch160, Std, Xxs
• Length：5.8m, 6m, 11.8m, 12m, Fixed Length, Random Length
• Material Grade：Gr.a,B, X42-X70, Psl1,Psl2, T5,T9,T11,T12,T22,T91
• Manufacturing Standard：ASTM A53,A106, API 5L,5CT, ASTM A192, DIN17175 etc
• Loading Port：China Main Port
• Transport Package：Bundles or Seaworthy Wooden Cases
• Specification：ASTM, DIN, JIS, BS, EN
• Trademark：kingmetal
• Origin：China
• HS Code：73045110
• Production Capacity：3000 Ton,Month

Basic Info.

Usage Pipeline Transport, Boiler Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Chemical Industry, Mining Section Shape Round Size 1/8"-48" W.T. Sch5s-Sch160, Std, Xxs Length 5.8m, 6m, 11.8m, 12m, Fixed Length, Random Length Material Grade Gr.a/B, X42-X70, Psl1/Psl2, T5/T9/T11/T12/T22/T91 Manufacturing Standard ASTM A53/A106, API 5L/5CT, ASTM A192, DIN17175 etc Loading Port China Main Port Transport Package Bundles or Seaworthy Wooden Cases Specification ASTM, DIN, JIS, BS, EN Trademark kingmetal Origin China HS Code 73045110 Production Capacity 3000 Ton/Month

Product Description

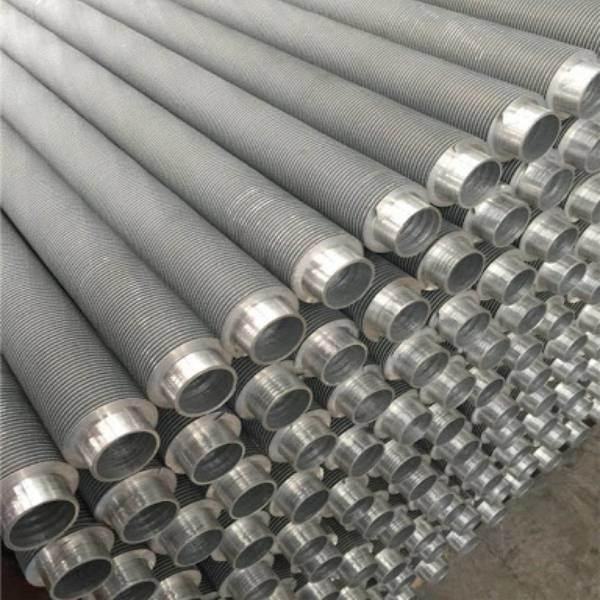

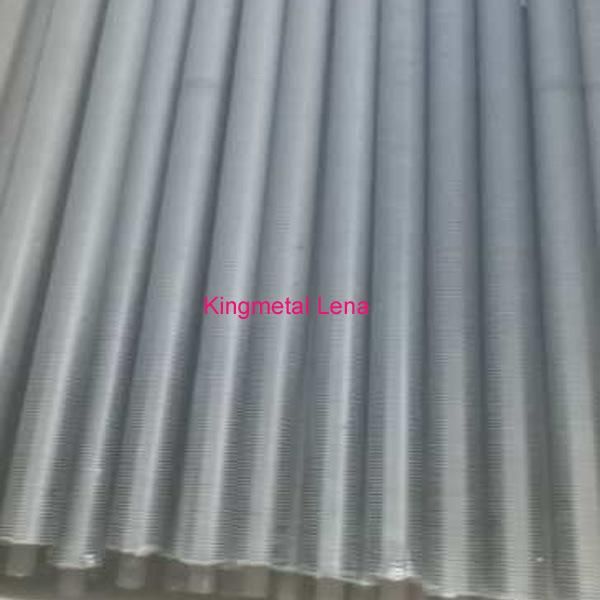

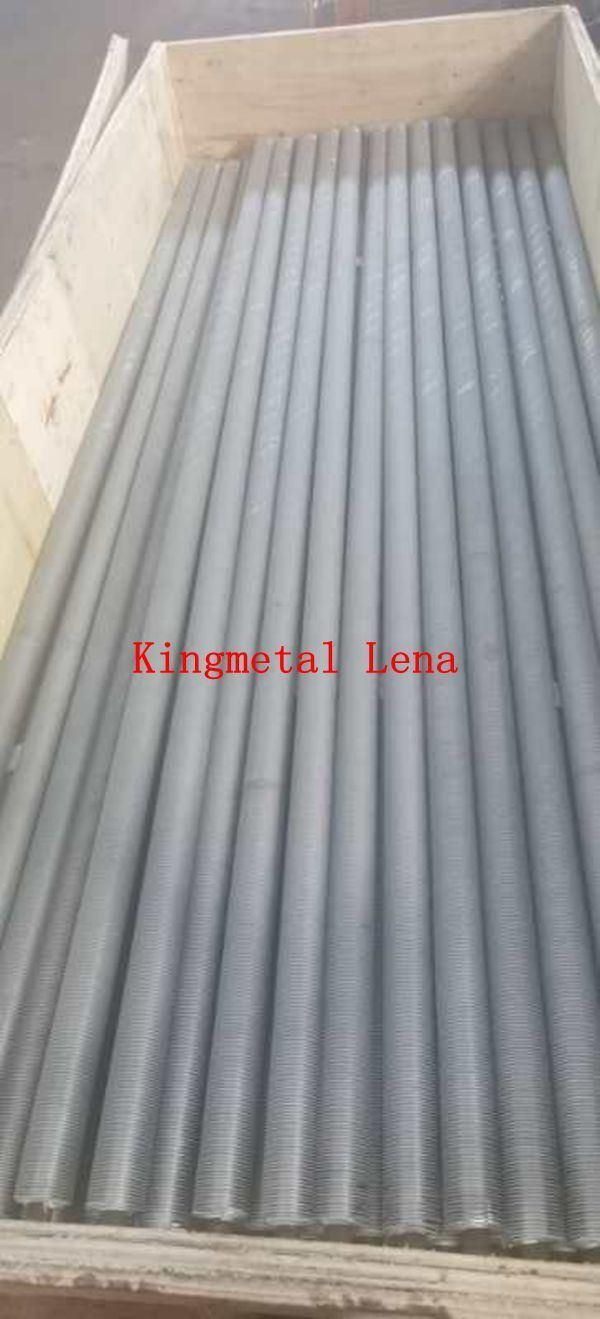

Finned Tube Aluminum Extruded Fin Tube

Extruded Aluminum Finned Tubes, also known as "Integral Finned Tubes". Integral finned tubes are manufactured by rolling process on tubes. During finning operation, the inside diameter of the tubes is reduced and helical fins are rolled on the tube wall.

Extruded aluminum fin tube is rolled as an integrity with no thermal contact resistance, high intensity, featured in thermal shock and mechanical shock resistance. Heat exchangers assembled with this kind of fin tube (extruded fin type) is much better than the one equipped with string fin tubes or hectically wound fin tubes (L/LL/KL type fin).

Extruded Aluminum Finned Tubes, also known as "Integral Finned Tubes". Integral finned tubes are manufactured by rolling process on tubes. During finning operation, the inside diameter of the tubes is reduced and helical fins are rolled on the tube wall. The tubes material can be Copper Alloy, Brass Alloys, Copper Nickel Alloy, Titanium Alloy, Stainless Steel, Duplex Stainless Steel etc. The pressure required to extrude fins from the aluminum sleeve creates an excellent "pressure bond" between the two materials.

Copper and aluminum com-posited fin tubes are rolled from a muff copper tube, advantaged in tight link, small thermal resistance, good heat transfer efficiency, small flow loss and strong corrosion resistance. When working in long time under heating and cooling conditions, they are durable and not easy to deform.

The integral extruded fin tubes is smooth on surface and easy to clean. When wet cooling in heating and air conditioning project, it is easy to remove the condensation water on the outer surface of the fin, and it is not easy to dust and scale in the heating and other heat exchange.

Widely use in

• HVAC & Boiler
• Power Plants
• Heat Recovery Steam Generators
• Petrochemical Industries
• Marine Applications
• Refrigeration Applications
• Economizers
• Oil and Gas Coolers
• Plumbing and Air Conditioning
• Condensers and Evaporators
• Shell and Tube Heat Exchanger
• Other various Heat exchanger applications

Integral Low Finned Tubes

• These have fin height less than or equal to fin pitch.
• Tube Length: Up to 32 meter.
• Outside Diameter OD: Between 9.52 mm and 38.10 mm.
• Tube Wall Thickness WT: 0.58 mm (min) and above.
• Fins per Inch: 11, 16, 19, 23, 26, 30, 40 and 52 FPI.
• Available in ferrous and nonferrous materials Copper Alloys, Copper-Nickel alloy, Admiralty Brass Alloy C44300, Aluminum Brass Alloy C68700, Carbon Steel.

Integral Medium High Finned Tubes

• Fin height more than fin pitch.
• Tube Length: Up to 32 meter.
• Outside Diameter: Between 19.05 mm and 31.75 mm.
• Tube wall thickness: 2.1 mm (min) and above.
• Fins per Inch: 11, 16 and 19 FPI.
• Available in ferrous and nonferrous materials.
