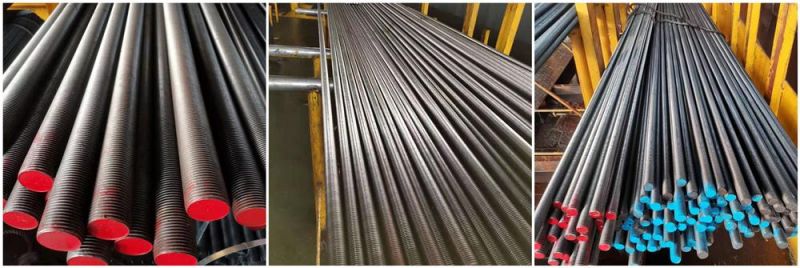

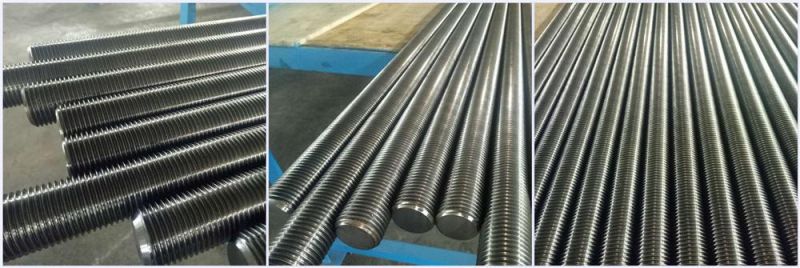

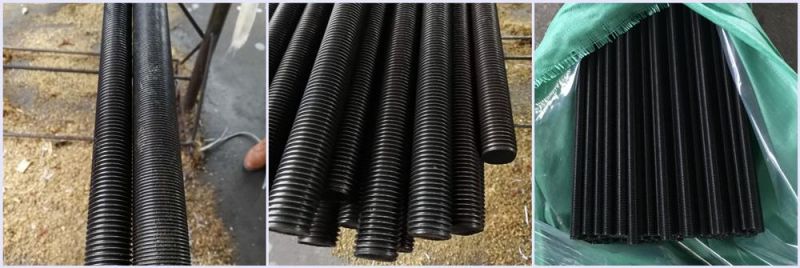

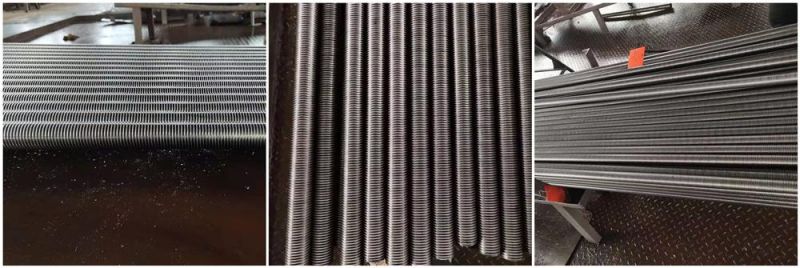

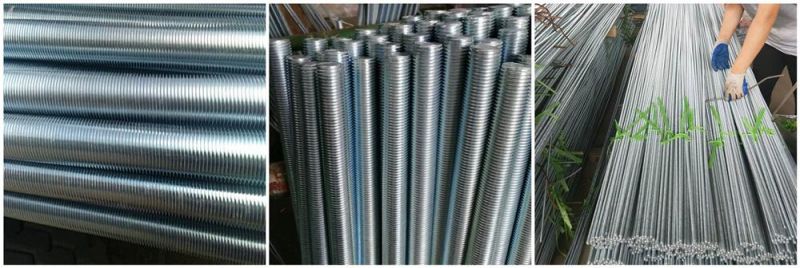

ASTM A193 Grade B7 B7m B16 B8 B8m Full Threaded Rods
Laiwu Xincheng Metal Co., Ltd.- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
- Surface Treatment：Galvanized
- Alloy：Alloy
- Sizes Range：1,4" to 4"
- Surface：Black, Plain, Zp, HDG and So on.
Base Info
- Model NO.：ASTM A193 Grade B7 B7M B16 B8 B8M
- MOQ：10PCS
- Length：1m,2m,3m,12 FT or as Required

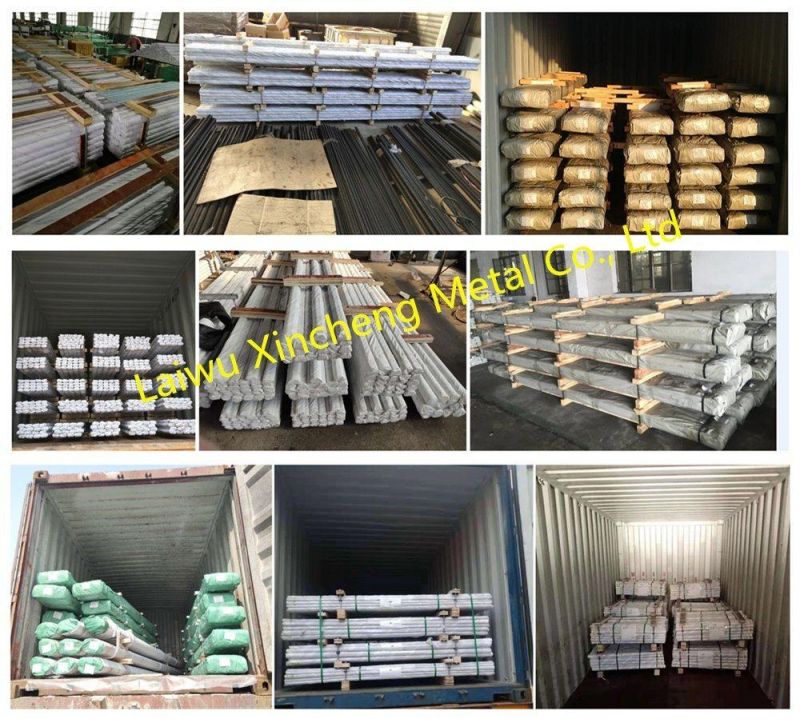

- Transport Package：Anti-Rust
- Specification：M6-M36
- Origin：China
- Production Capacity：3000tons,Month
Description
B16Up to 2-1/2 125 105 18 50 2-5/8 - 4 110 95 17 45 4-1/8 - 7 100 85 16 45
3.FAQ:
Q: Are you manufacturer or trading company ?
A: We have factory producing threaded rods for more than 20 years, We owned more than 20 sets of producing equipments.
Q: What's your sample policy ?
A: Our sample is free, but customer may need to pay the express cost.
Q: What's your MOQ ?
A: The MOQ is 100pieces,
Q: What's your delivery time?
A: Generally, our delivery time is 30 days after deposit received, we can adjust our production if your order is urgent.
Q: What's your payment term:
A: Usually, if amount is less than 1000usd, we suggest payment through west union , if amount above 1000usd, we suggest TT or LC.

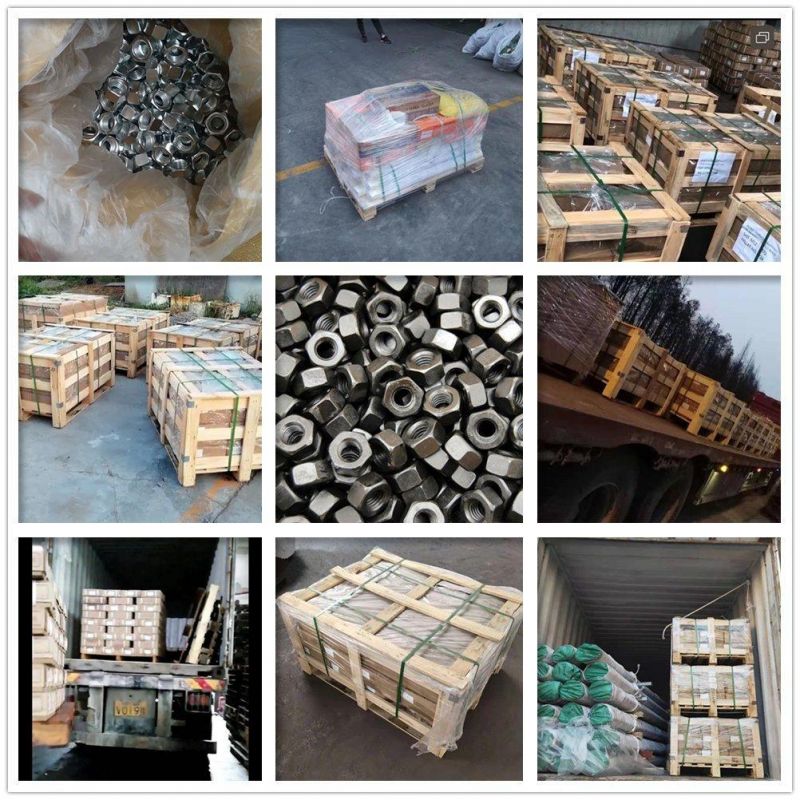

ASTM A193 Grade B7 Chromium Molybendum steel, normally AISI 4140, heat treated to 28-32Rockwell Hardness, 125,000 PSI tensile strength, 105, 000 PSI yield. It will hold it's strength to 1000 degrees F. This grade of studbolts are engineered to mate with ASTM A194 Grade 2H Heavy Hex Nuts.
ASTM A193 Grade B7M It has the same chemistry as B7. Physicals have max hardness of 235 Brinell or RC22. 100,000 PSI tensile and 80,000 PSI yield. Used in areas where H2S is present.
ASTM A193 Grade B16 Chromium, molybendum, Vanadium steel. It has the same physicals as B7. Added vanadium allows it to hold it's strength to 1100 degrees Fahrenheit.
ASTM A193 Grade B8 18-8 Grade stainless, non magnetic, good corrosion resistance. 75,000 PSI tensile strength. Same material as AISI type 304 stainless steel.
ASTM A193 Grade B8M This is similar to B8 fasteners except with added Molybdenum. It has better corrosion resistance than B8. Hex Bolts, studs and other fasteners are common to the B8M spec.
ASTM A193 Grade B8 Class 2 Studs, bolts, and other fasteners found in this grade are considered the same as B8 except strain hardened. This is a cold working process which increases physical properties. 100,000-125,000 PSI Tensile Strength.
ASTM A193 Grade B8M Class 2 Same as B8M except strain hardened, 90,000-125,000PSI Tensile Strength.
ASTM A193 Grade BC 18-8 grade stainless with additional element of Columbium- same as type 347 type stainless steel.
ASTM A193 Grade B8T 18-8 grade of stainless with additional element of Titanium. Same as type 321 Stainless Steel.
ASTM A193 Grade B6 This has the same chemistry as AISI type 410 stainless steel, but it is heat treated. 110,000 PSI tensile strength.
ASTM A193 Grade B5 Fasteners under the B5 spec have the same chemistry as AISI type 501 SS but they are heat treated to 100,000 PSI tensile strength.
ASTM A320 Grade L7 Bolts, studs, and other fasteners under the L7 grade have the same chemical and physical properties as B7. Additional requirement that it meet a Charpy Test at 150 degrees F is needed. Such fasteners are commonly used for low temperature service.
ASTM A320 Grade L7M
ASTM A320 Grade B8
18-8 Grade stainless, non magnetic, good corrosion resistance. 75,000 PSI tensile strength. Same material as AISI type 304 stainless steel.
ASTM A320 Grade B8M This is similar to B8 fasteners except with added Molybdenum. It has better corrosion resistance than B8. Hex Bolts, studs and other fasteners are common to the B8M spec.
ASTM A320 Grade B8 Class 2 Studs, bolts, and other fasteners found in this grade are considered the same as B8 except strain hardened. This is a cold working process which increases physical properties. 100,000-125,000 PSI Tensile Strength.
ASTM A320 Grade B8M Class 2 Same as B8M except strain hardened, 90,000-125,000PSI Tensile Strength.
ASTM A354 Grade BC High strength bolts for normal atmospheric temperature. 125,000 tensile. Lacks alloying elements of B7.
ASTM A354 Grade BD These hex bolts are the same as BC except they have a higher strength.
ASTM A449 Similar to A354 except has Manganese added, 90,000 to 120,000 tensile strength depending on size.
3.FAQ:
Q: Are you manufacturer or trading company ?
A: We have factory producing threaded rods for more than 20 years, We owned more than 20 sets of producing equipments.
Q: What's your sample policy ?
A: Our sample is free, but customer may need to pay the express cost.
Q: What's your MOQ ?
A: The MOQ is 100pieces,
Q: What's your delivery time?
A: Generally, our delivery time is 30 days after deposit received, we can adjust our production if your order is urgent.
Q: What's your payment term:
A: Usually, if amount is less than 1000usd, we suggest payment through west union , if amount above 1000usd, we suggest TT or LC.
ASTM A193 Grade B7 Chromium Molybendum steel, normally AISI 4140, heat treated to 28-32Rockwell Hardness, 125,000 PSI tensile strength, 105, 000 PSI yield. It will hold it's strength to 1000 degrees F. This grade of studbolts are engineered to mate with ASTM A194 Grade 2H Heavy Hex Nuts.
ASTM A193 Grade B7M It has the same chemistry as B7. Physicals have max hardness of 235 Brinell or RC22. 100,000 PSI tensile and 80,000 PSI yield. Used in areas where H2S is present.
ASTM A193 Grade B16 Chromium, molybendum, Vanadium steel. It has the same physicals as B7. Added vanadium allows it to hold it's strength to 1100 degrees Fahrenheit.
ASTM A193 Grade B8 18-8 Grade stainless, non magnetic, good corrosion resistance. 75,000 PSI tensile strength. Same material as AISI type 304 stainless steel.
ASTM A193 Grade B8M This is similar to B8 fasteners except with added Molybdenum. It has better corrosion resistance than B8. Hex Bolts, studs and other fasteners are common to the B8M spec.
ASTM A193 Grade B8 Class 2 Studs, bolts, and other fasteners found in this grade are considered the same as B8 except strain hardened. This is a cold working process which increases physical properties. 100,000-125,000 PSI Tensile Strength.
ASTM A193 Grade B8M Class 2 Same as B8M except strain hardened, 90,000-125,000PSI Tensile Strength.
ASTM A193 Grade BC 18-8 grade stainless with additional element of Columbium- same as type 347 type stainless steel.
ASTM A193 Grade B8T 18-8 grade of stainless with additional element of Titanium. Same as type 321 Stainless Steel.
ASTM A193 Grade B6 This has the same chemistry as AISI type 410 stainless steel, but it is heat treated. 110,000 PSI tensile strength.
ASTM A193 Grade B5 Fasteners under the B5 spec have the same chemistry as AISI type 501 SS but they are heat treated to 100,000 PSI tensile strength.
ASTM A320 Grade L7 Bolts, studs, and other fasteners under the L7 grade have the same chemical and physical properties as B7. Additional requirement that it meet a Charpy Test at 150 degrees F is needed. Such fasteners are commonly used for low temperature service.
ASTM A320 Grade L7M
ASTM A320 Grade B8
18-8 Grade stainless, non magnetic, good corrosion resistance. 75,000 PSI tensile strength. Same material as AISI type 304 stainless steel.
ASTM A320 Grade B8M This is similar to B8 fasteners except with added Molybdenum. It has better corrosion resistance than B8. Hex Bolts, studs and other fasteners are common to the B8M spec.
ASTM A320 Grade B8 Class 2 Studs, bolts, and other fasteners found in this grade are considered the same as B8 except strain hardened. This is a cold working process which increases physical properties. 100,000-125,000 PSI Tensile Strength.
ASTM A320 Grade B8M Class 2 Same as B8M except strain hardened, 90,000-125,000PSI Tensile Strength.
ASTM A354 Grade BC High strength bolts for normal atmospheric temperature. 125,000 tensile. Lacks alloying elements of B7.
ASTM A354 Grade BD These hex bolts are the same as BC except they have a higher strength.
ASTM A449 Similar to A354 except has Manganese added, 90,000 to 120,000 tensile strength depending on size.
