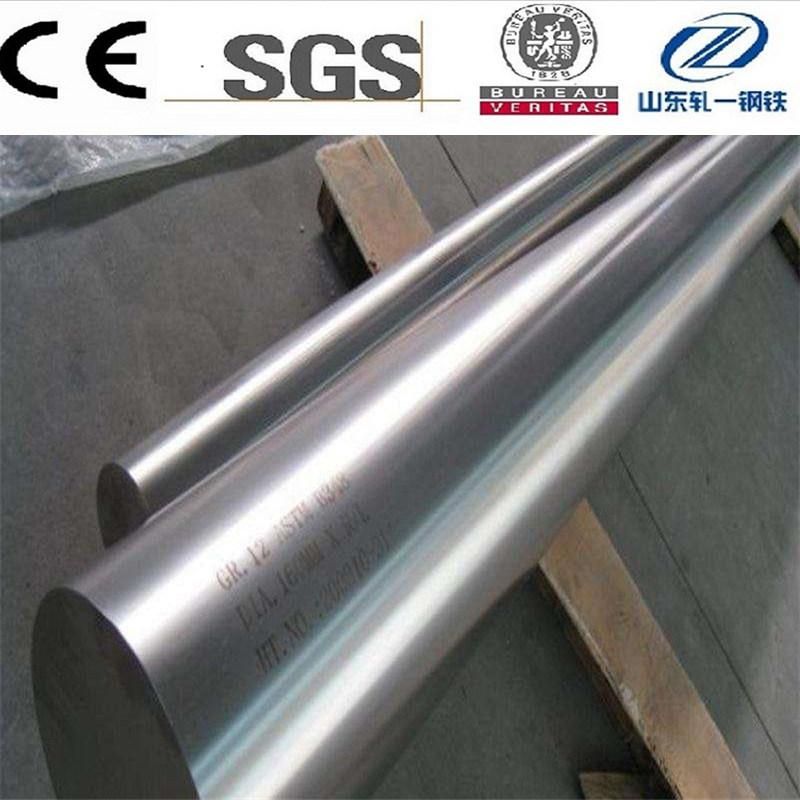

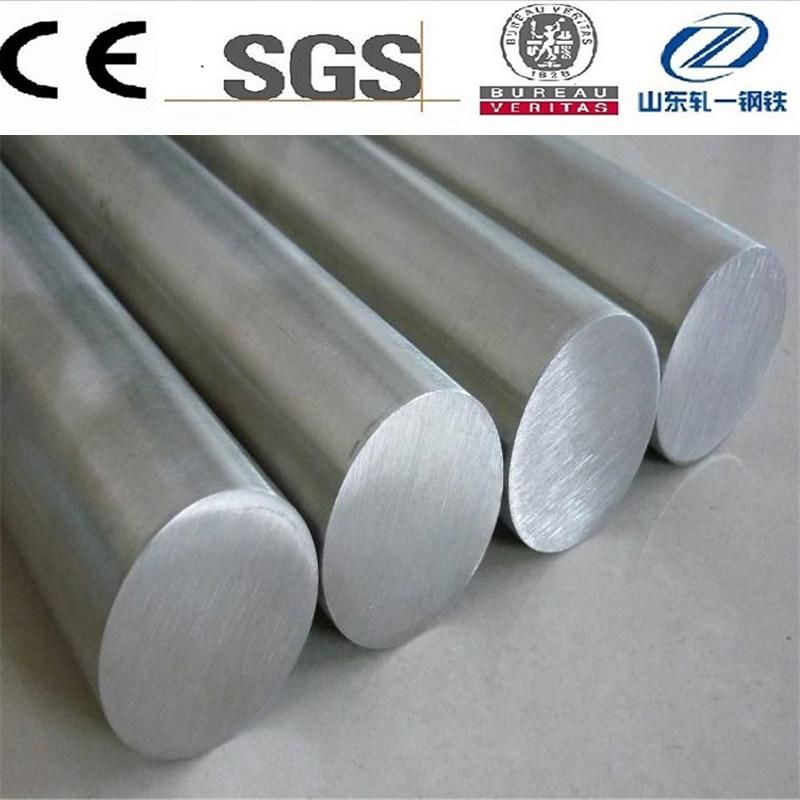

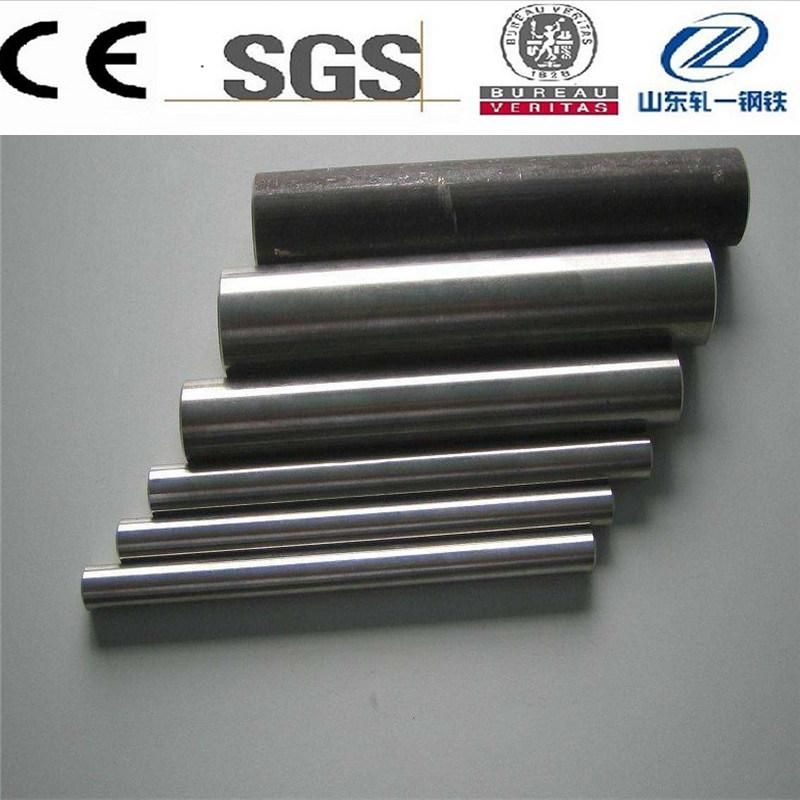

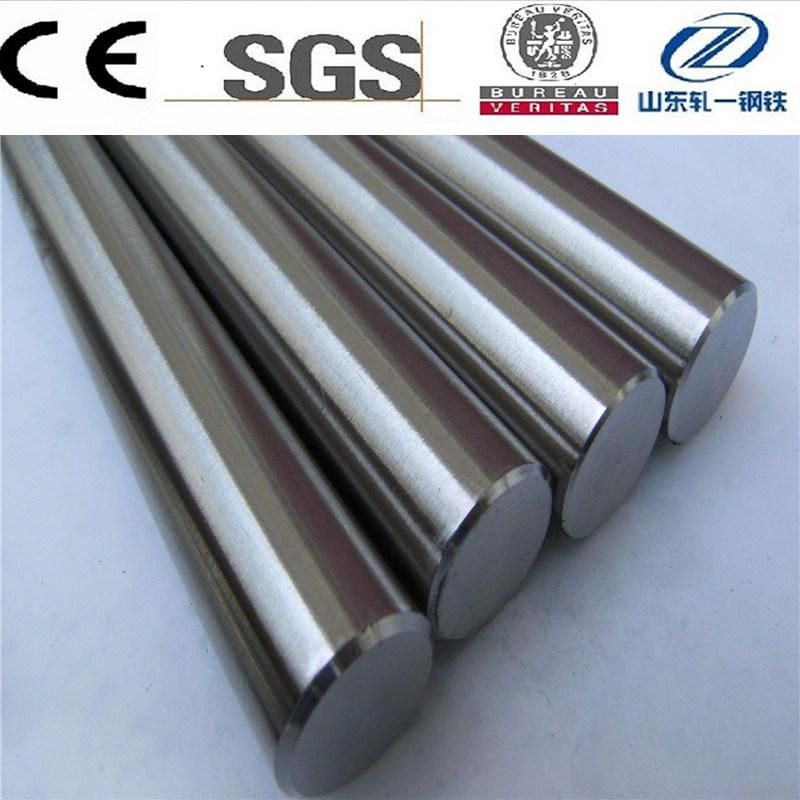

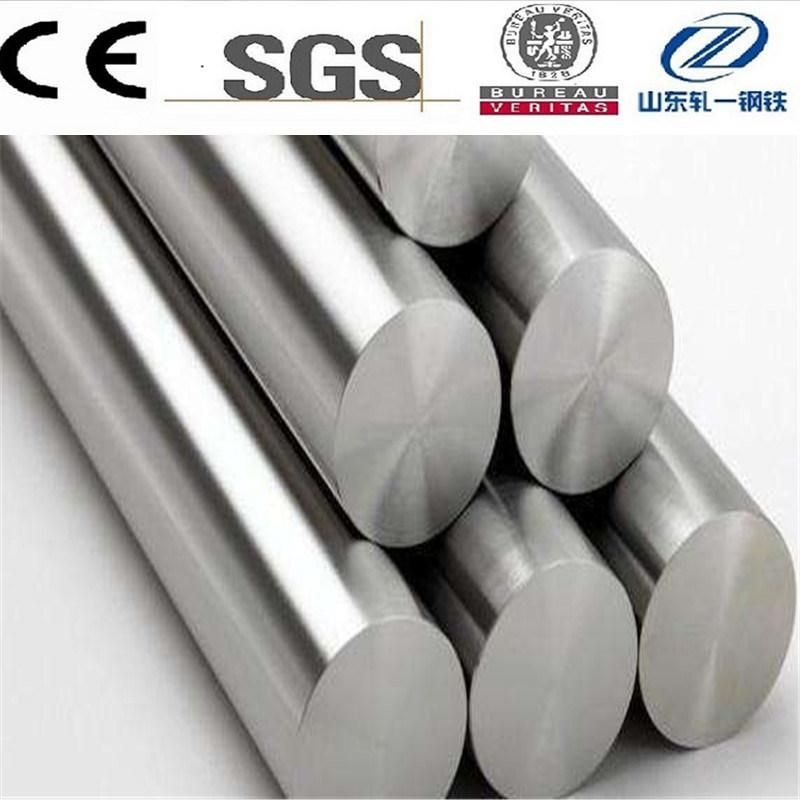

• Model NO.：Inconel 617 alloy bar
• Surface Treatment：Polished
• Transport Package：Export Standard Packing
• Specification：10-200mm
• Trademark：Zayi
• Origin：China
• HS Code：7505120000
• Production Capacity：50000 Pieces Per Month

Basic Info.

Model NO. Inconel 617 alloy bar Surface Treatment Polished Transport Package Export Standard Packing Specification 10-200mm Trademark Zayi Origin China HS Code 7505120000 Production Capacity 50000 Pieces Per Month

Product Description

DESCRIPTION

lnconel 617 is a nickel-chromium-cobalt-molybdenum alloy with an exceptional combination of metallurgical stability, strength, and oxidation resistance at high temperatures. Resistance to oxidation is enhanced by an aluminum addition. The alloy also resists a wide range of corrosive aqueous environments. Used in gas turbines for combustion cans, ducting, and transition liners; for petrochemical processing; for heat-treating equipment. Standard product forms are round, forging stock, extruded section, plate, sheet, strip, pipe, tube, and wire.

CHEMISTRY TYPICAL

Nickel: 44.5 min
Chromium: 20.0-24.0
Cobalt: 10.0-15.0
Molybdenum: 8.0-10.0
Aluminum: 0.8-1.5
Carbon: 0.05-0.15
Iron: 3.0 max
Manganese: 1.0 max
Silicon:m1 .0 max
Sulfur: 0.015 max
Titanium: 0.6 max
Copper: 0.5 max
Boron: 0.006 max

PHYSICAL PROPERTIES OF INCONEL 617

Density: 0.302 lb/in3, 8.36 g/cm3

Electrical Resistivity: ohm-cir-mil/ft (micro-ohm-m):
At 78 ° F (20 ° C): 736 (1.222)
At 200 ° F (100 ° C): 448 (1.245)
At 400 ° F (200 ° C): 757 (1.258)
At 600 ° F (300 ° C): 764 (1.268)
At 800 ° F (400 ° C): 770 (1.278)
At 1000 ° F (500 ° C): 779 (1.290)
At 1200 ° F (600 ° C): 793 (1.308)
At 1400 ° F (700 ° C): 807 (1.332)
At 1600 ° F (800 ° C): 803 (1.342)
At 1800 ° F (900 ° C): 824 (1.338)
At 2000 ° F (1000 °C): - (1.378)

Specific Heat: BTU/lb-° F (J/Kg-° C):
At 78 ° F (20 ° C): 0.100 (419)

Thermal Conductivity: BTU-in/hr-tt2-° F (W/m•° C):
At 78 ° F (20 ° C): 94 ( 13.4) At 200 ° F (100 ° C): 101 (14.7)
At 400 ° F (200 ° C): 113 (16.3)
At 600 ° F (300 ° C): 125 (17.7)
At 800 ° F (400 ° C): 137 (19.3)
At 1000 ° F (500 ° C): 149 (20.9)
At 1200 ° F (600 ° C): 161 (22.5)
At 1400 ° F (700 ° C): 173 (23.9)
At 1600 ° F (800 ° C): 185 (25.5)
At 1800 ° F (900 ° C): 197 (27.1)
At 2000 ° F (1000 °C): 209 (28.7)

Mean Coefficient of Thermal Expansion: µin/in-° F(µm/m-° C):
78 - 200 ° F (20 - 100 ° C): 7.0 (11.6)
78 - 400 ° F (20 - 200 ° C): 7.2 (12.6)
78 - 600 ° F (20 - 300 ° C): 7.49 (13.1)
78 - 800 ° F (20 - 400 ° C): 7.6 (13.6)
78 - 1000 ° F (20 - 500 ° C: 7.7 (13.9)
78 - 1200 ° F (20 - 600 ° C): 8.0 (14.0)
78 - 1400 ° F (20 - 700 ° C): 8.4 (14.8)
78 - 1600 ° F (20 - 800 ° C): 8.7 (15.4)
78 - 1800 ° F (20 - 900 ° C): 9.0 (15.8)
78 - 2000 ° F (20 - 1000 °C): 9.2 (16.3)

Modulus of Elasticity: KSI (MPa):
30.6 x 103 (211 x 103) in tension

Melting Range: 2430 - 2510 ° F (1332 - 1380 ° C)

FORMS

Coil - Sheet, Strip, Foil Wire - Profile, Round, Flat, Square

MECHANICAL PROPERTIES AT ROOM TEMPERATURE

PROPERTIES: ANNEALED TYPICAL

Ultimate Tensile Strength: 95 KSI min (655 MPa min)
Yield Strength: 35 KSI min (241 MPa min )
Elongation: 30% min

PROPERTIES: TEMPERED

lnconel 617 can be cold worked to various tempers. Contact Ulbrich Technical Service for additional information.

F A Q
1. How can I know whether you are a reliable company?
We are engaged in alloy rod over 10 years and have high visibility in domestic. We welcome you to inspect our company at any time.
2. Can you guarantee your products?
Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately.
3. Do you provide samples?
Yes, we can provide most of the product samples. We will charge a little sample fee. But we will return the charge if you place an order. if you asked to use DHL, Blue Dart Express, FedEx, etc. to send samples, you can inform us in advance to prepare.
4. Can I visit your company?
Of course, If you want to order our products and visit our company, please contact us to make an appointment.
5. Can you make sizes according to my request ?
Yes,customization service is available,OEM business is appreciated.
When you place the orders,we arrange the production asap,When finish the orders, we will inform you and also we arrange the shipping in the same time.
6. How much is the freight?
It depends on the number and transport methods. When asked about the freight, we want you to let us know your detailed information , such as the product name and quantity and your favorite mode of transport, as well as your designated port or airport. We thank you for providing us the information to estimate the cost.
