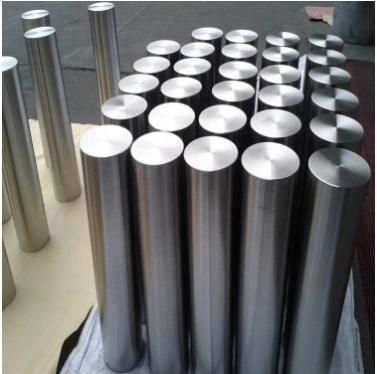

SAE 1045 Carbon Steel Round Bar
Laiwu Xincheng Metal Co., Ltd.- Warranty：24 Months
- Type：Carbon Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Hot Rolled
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
- Surface Treatment：Hot Rolled,Steel Self Black
Base Info
- Model NO.：SAE 1045 Carbon Steel Round Bar
- Alloy：Non-alloy
- Special Use：Mold Steel, Free Cutting Steel, Cold Heading Steel

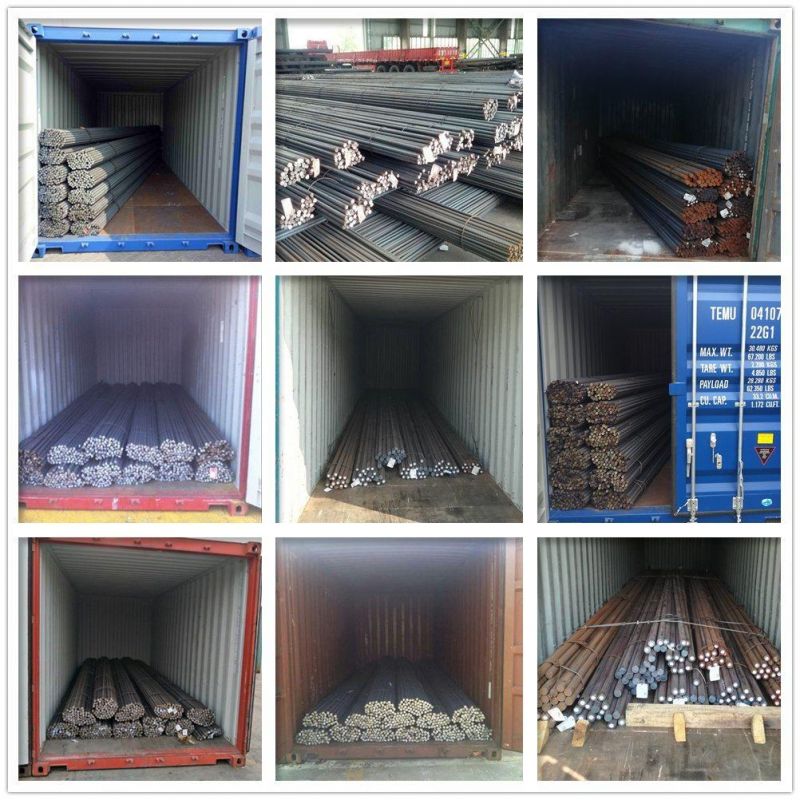

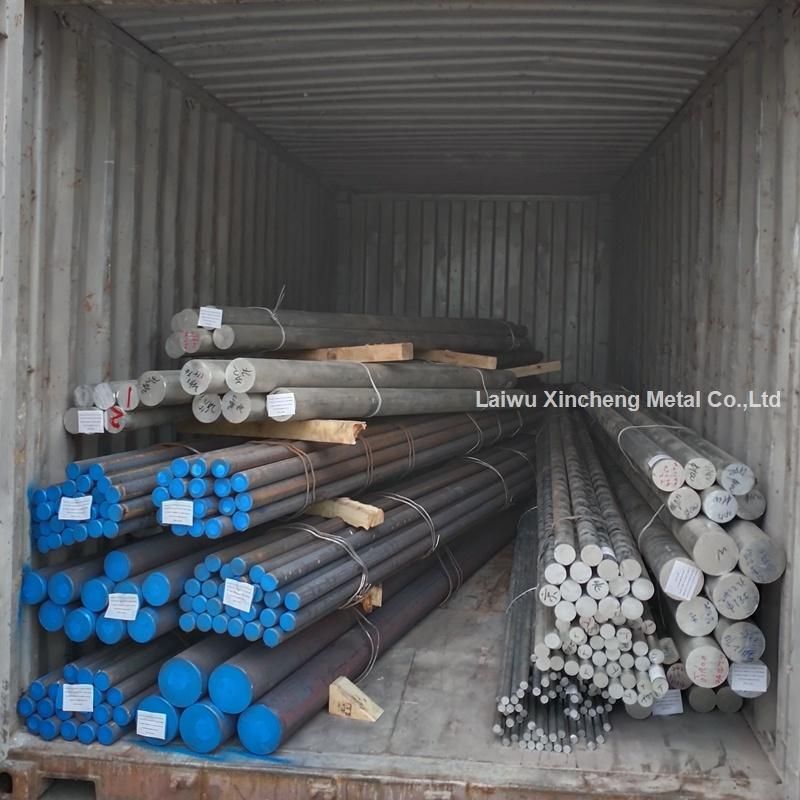

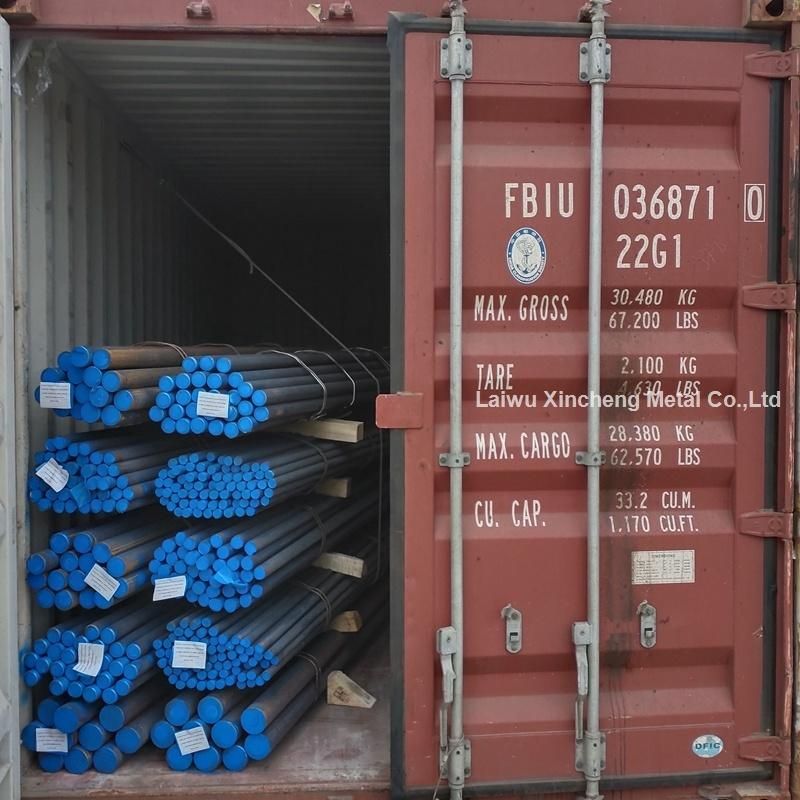

- Transport Package：Standard Dea Worthy
- Specification：M12-M310
- Trademark：Laiwu Xincheng
- Origin：China
- HS Code：72283090
- Production Capacity：10000tons,Month
Description
1045 Steel Equivalent and Chemical CompositionStandard Grade C Si Mn P S GB/T699 45 0.42-0.5 0.17-0.37 0.5-0.8 0.035 0.035 JIS G4051 S45C 0.42-0.48 0.15-0.35 0.6-0.9 0.03 0.035 ASTM A29/A29M 1045 0.43-0.5 0.15-0.35 0.6-0.9 0.04 0.05 EN 10083-2 C45E/1.1191 0.43-0.5 0.4 0.5-0.8 0.03 0.035 Mechanical Properties Metric Imperial Hardness, Brinell 163 163 Hardness, Knoop (Converted from Brinell hardness) 184 184 Hardness, Rockwell B (Converted from Brinell hardness) 84 84 Hardness, Vickers (Converted from Brinell hardness) 170 170 Tensile Strength, Ultimate 565 MPa 81900 psi Tensile Strength, Yield 310 MPa 45000 psi Elongation at Break (in 50 mm) 16.00% 16.00% Reduction of Area 40.00% 40.00% Modulus of Elasticity (Typical for steel) 200 GPa 29000 ksi Bulk Modulus (Typical for steel) 140 GPa 20300 ksi Poissons Ratio (Typical For Steel) 0.29 0.29 Shear Modulus (Typical for steel) 80 GPa 11600 ksi
10.Quality control1.Processing Line:
Iron - hot metal pretreatment - Converter - Refining --VD / RH- - Continuous Casting - Hot Rolling (KOCKS) - heat --UT Check - Processing and Distribution Center
Electric Furnace - Refining --VD / RH- - Continuous Casting - Hot Rolling (KOCKS) - heat --UT Check - Processing and Distribution Center
2.Gas content level:O2 - <20 ppm H2 - <2 ppm N2- <100 ppm
3.Grain Sizes:5-8
4. non-metallic inclusions contorlling level
11.Machining:
AISI 1045 steel has good machinability in normalized as well as the hot rolled condition. Based on the recommendations given by the machine manufacturers, operations like tapping, milling, broaching, drilling, turning and sawing etc. can be carried out on AISI 1045 steel using suitable feeds, tool type and speeds.
12.Applications
AISI 1045 is widely used for all industrial applications requiring more wear resistance and strength. Typical applications of AISI 1045 are as follows:
Gears Pins Rams
Shafts Rolls Sockets
Axles Spindles Worms
Bolts Ratchets Light gears
Studs Crankshafts Guide rods
Connecting rods Torsion bars Hydraulic clamps
SAE 1045 steel round bar 16-310mm /S45C C45 steel round bars,SAE 1045 steel round bar 16-310mm /S45C C45 steel round bars,SAE 1045 steel round bar 16-310mm /S45C C45 steel round bars,SAE 1045 steel round bar 16-310mm /S45C C45 steel round bars,SAE 1045 steel round bar 16-310mm /S45C C45 steel round bars
10.Quality control1.Processing Line:
Iron - hot metal pretreatment - Converter - Refining --VD / RH- - Continuous Casting - Hot Rolling (KOCKS) - heat --UT Check - Processing and Distribution Center
Electric Furnace - Refining --VD / RH- - Continuous Casting - Hot Rolling (KOCKS) - heat --UT Check - Processing and Distribution Center
2.Gas content level:O2 - <20 ppm H2 - <2 ppm N2- <100 ppm
3.Grain Sizes:5-8
4. non-metallic inclusions contorlling level
| A | B | C | D | |
| MAX | MAX | MAX | MAX | |
| Thin | 2 | 2 | 2 | 2 |
| Thick | 1 | 1 | 1 | 1 |
11.Machining:
AISI 1045 steel has good machinability in normalized as well as the hot rolled condition. Based on the recommendations given by the machine manufacturers, operations like tapping, milling, broaching, drilling, turning and sawing etc. can be carried out on AISI 1045 steel using suitable feeds, tool type and speeds.
12.Applications
AISI 1045 is widely used for all industrial applications requiring more wear resistance and strength. Typical applications of AISI 1045 are as follows:
Gears Pins Rams
Shafts Rolls Sockets
Axles Spindles Worms
Bolts Ratchets Light gears
Studs Crankshafts Guide rods
Connecting rods Torsion bars Hydraulic clamps
