- Model NO.：S420NL steel plate
- Special Use：Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
- Stock：Stock
- Material：P460qh
- Thickness：2-200mm
- Width：1200-2500mm
- Length：6-12m
- Transport Package：in Bundles
- Specification：20*2200*8000mm
- Trademark：Zayi
- Origin：Shandong
- HS Code：7225409900
- Production Capacity：5000tons,Month
| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 - 1.7 | max 0.8 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.55 |
S420N material| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 - 1.7 | max 0.8 | max 0.03 | max 0.025 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.52 |
S420NL material:| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 - 1.7 | max 0.8 | max 0.025 | max 0.02 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.52 |
S460NL material:| C | Si | Mn | Ni | P | S | Cr | Mo | V | N | Nb | Ti | Al | Cu | CEV |
| max 0.2 | max 0.6 | 1 - 1.7 | max 0.8 | max 0.025 | max 0.02 | max 0.3 | max 0.1 | max 0.2 | max 0.025 | max 0.05 | max 0.05 | max 0.02 | max 0.55 | max 0.55 |
Mechanical properties:S460N material| Nominal thickness (mm): | to 100 | 100 - 200 |
|
| Rm - Tensile strength (MPa) | 540-720 | 530-710 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
|
| ReH - Minimum yield strength (MPa) | 460 | 440 | 430 | 410 | 400 | 380 | 370 |
|
| KV - Impact energy (J) longitud., (+N) | +20°
55 | 0°
47 | -10°
43 | -20°
40 |
|
| KV - Impact energy (J) transverse, (+N) | +20°
31 | 0°
27 | -10°
24 | -20°
20 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 |
|
| A - Min. elongation Lo = 5,65 √ So (%) | 17 | 17 | 17 | 17 | 17 |
S420N material:| Nominal thickness (mm): | to 100 | 100 - 200 | 200 - 250 |
|
| Rm - Tensile strength (MPa) | 520-680 | 500-650 | 500-650 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
|
| ReH - Minimum yield strength (MPa) | 420 | 400 | 390 | 370 | 360 | 340 | 330 | 320 |
|
| KV - Impact energy (J) longitud., (+N) | +20°
55 | 0°
47 | -10°
43 | -20°
40 |
|
| KV - Impact energy (J) transverse, (+N) | +20°
31 | 0°
27 | -10°
24 | -20°
20 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 | 200 - 250 |
|
| A - Min. elongation Lo = 5,65 √ So (%) | 19 | 19 | 19 | 18 | 18 | 18 |
S420NL material:| Nominal thickness (mm): | to 100 | 100 - 200 | 200 - 250 |
|
| Rm - Tensile strength (MPa) | 520-680 | 500-650 | 500-650 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
|
| ReH - Minimum yield strength (MPa) | 420 | 400 | 390 | 370 | 360 | 340 | 330 | 320 |
|
| KV - Impact energy (J) longitud., (+N) | +20°
63 | 0°
55 | -10°
51 | -20°
47 | -30°
40 | -40°
31 | -50°
27 |
|
| KV - Impact energy (J) transverse, (+N) | +20°
40 | 0°
34 | -10°
30 | -20°
27 | -30°
23 | -40°
20 | -50°
16 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 | 200 - 250 |
|
| A - Min. elongation Lo = 5,65 √ So (%) | 19 | 19 | 19 | 18 | 18 | 18 |
S460NL material:| Nominal thickness (mm): | to 100 | 100 - 200 |
|
| Rm - Tensile strength (MPa) | 540-720 | 530-710 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 |
|
| ReH - Minimum yield strength (MPa) | 460 | 440 | 430 | 410 | 400 | 380 | 370 |
|
| KV - Impact energy (J) longitud., (+N) | +20°
63 | 0°
55 | -10°
51 | -20°
47 | -30°
40 | -40°
31 | -50°
27 |
|
| KV - Impact energy (J) transverse, (+N) | +20°
40 | 0°
34 | -10°
30 | -20°
27 | -30°
23 | -40°
20 | -50°
16 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 200 |
|
| A - Min. elongation Lo = 5,65 √ So (%) | 17 | 17 | 17 | 17 | 17 |

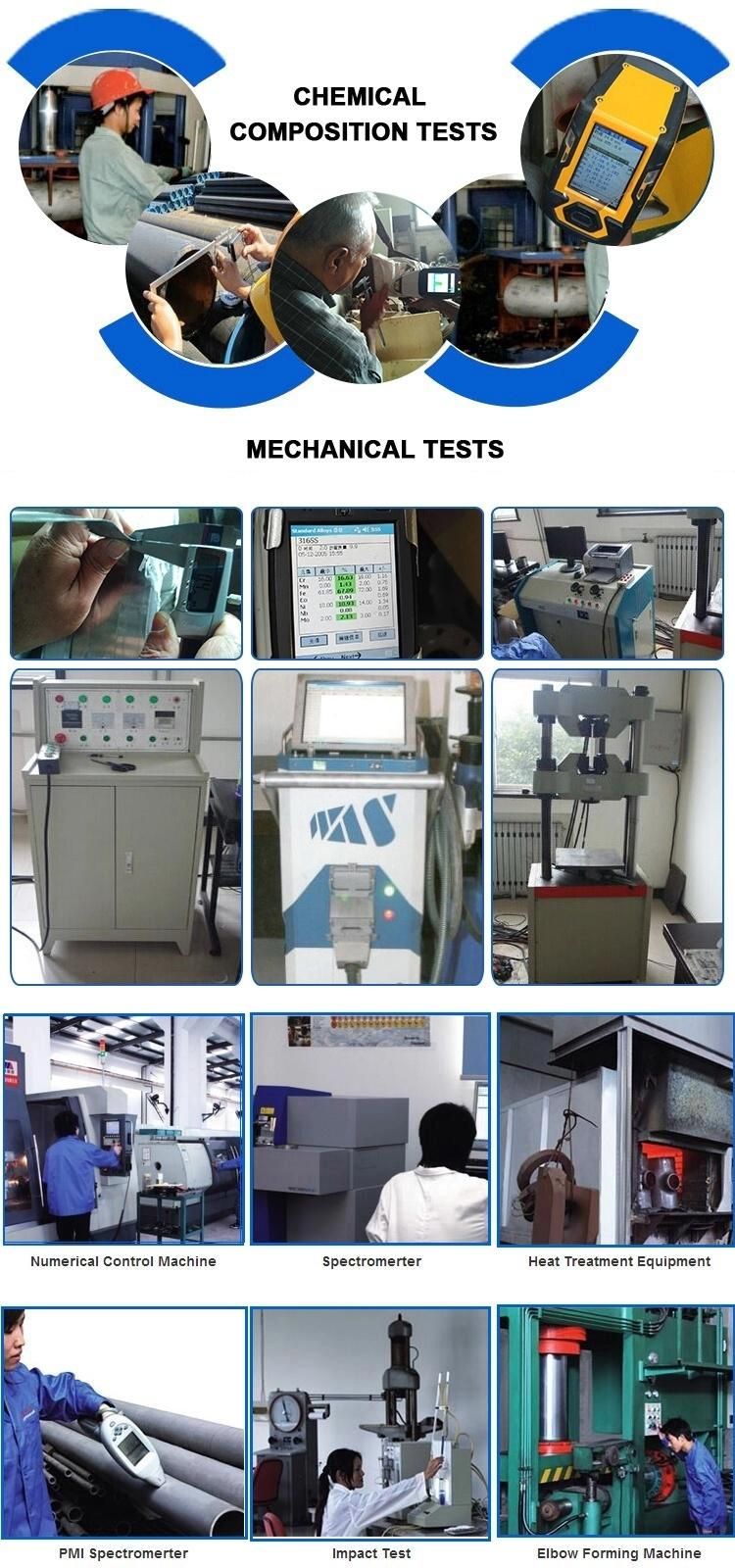

Inspection:

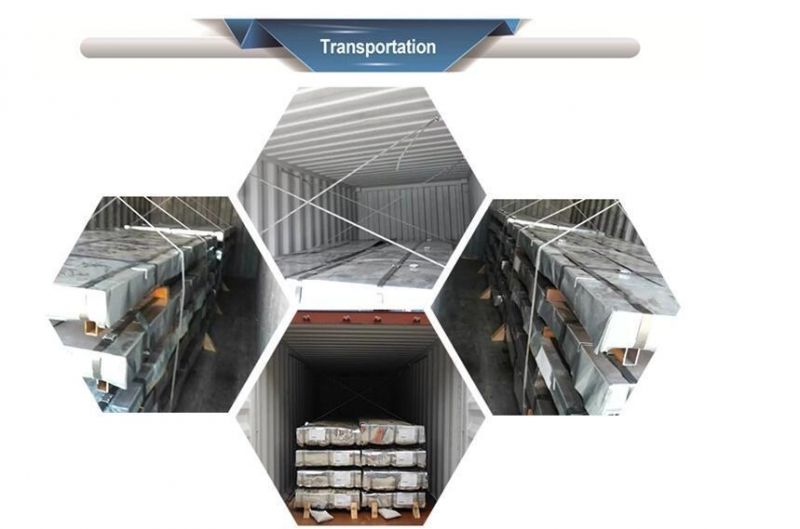

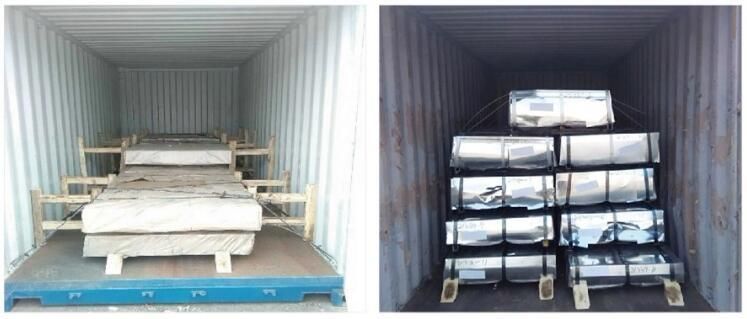

Packing and transportation:

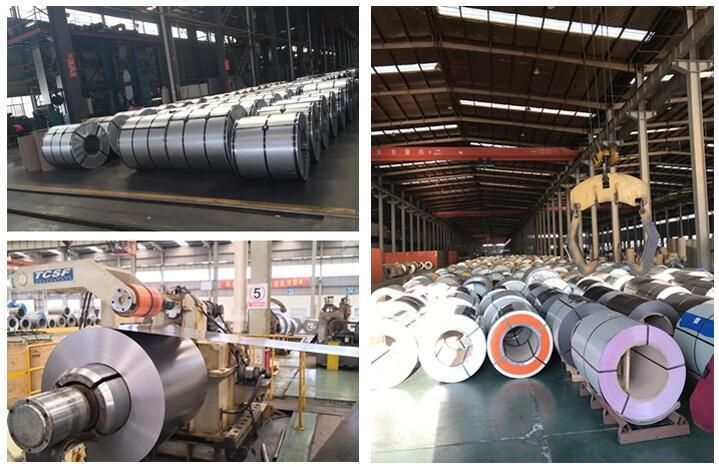

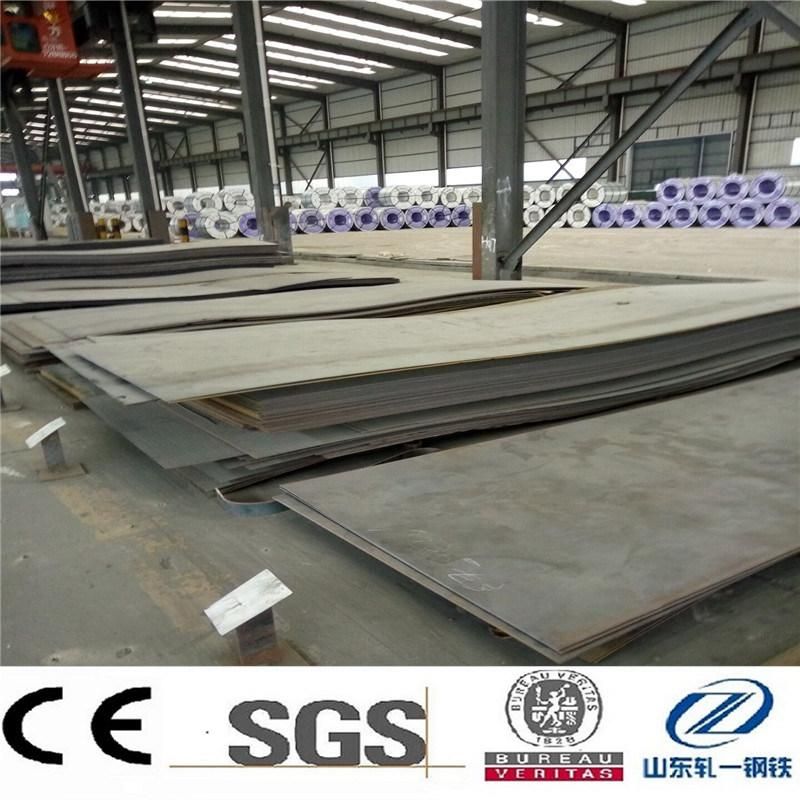

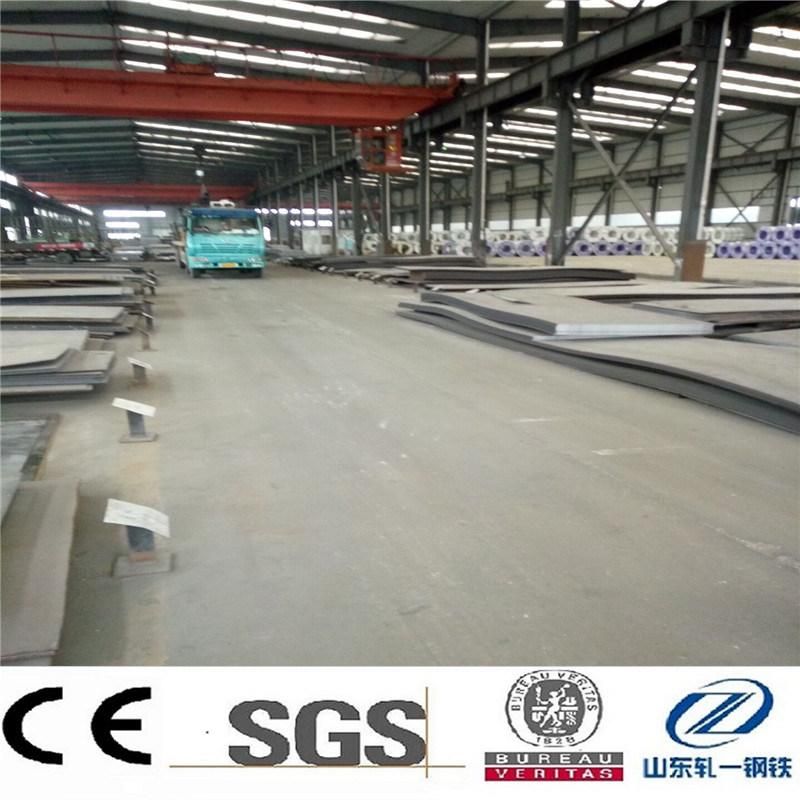

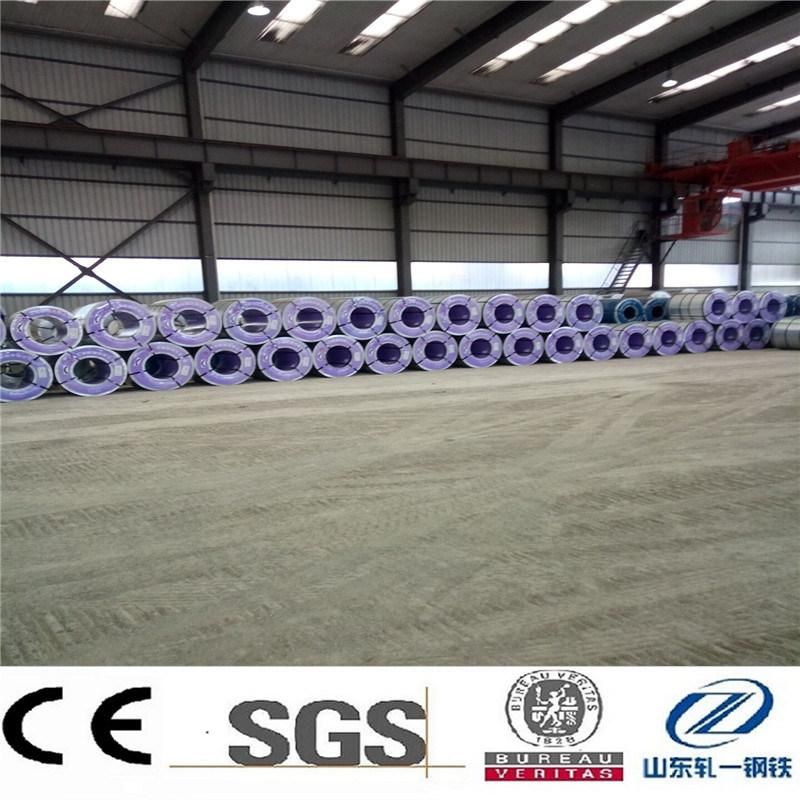

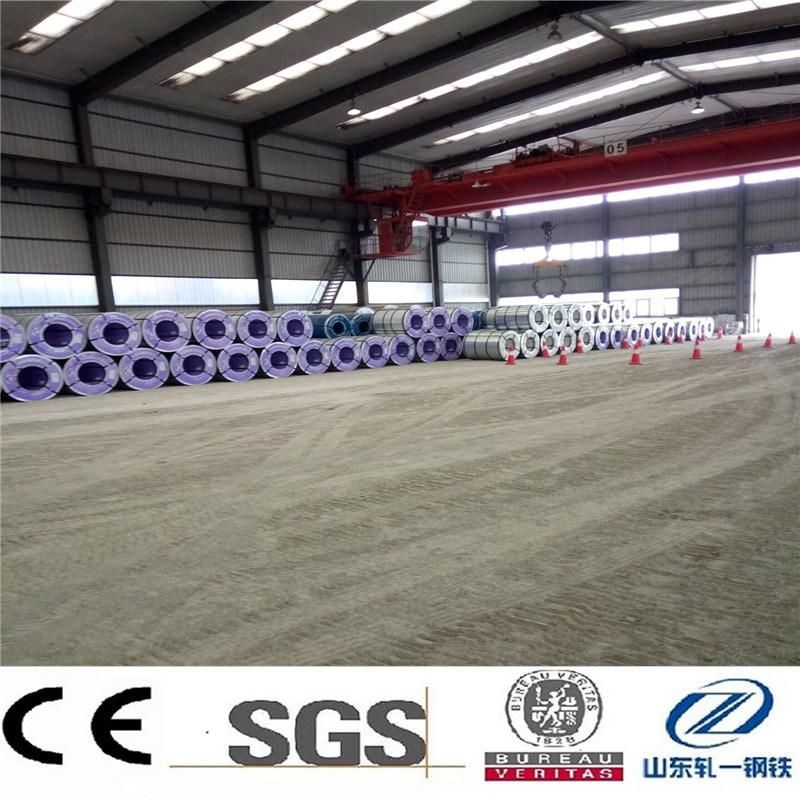

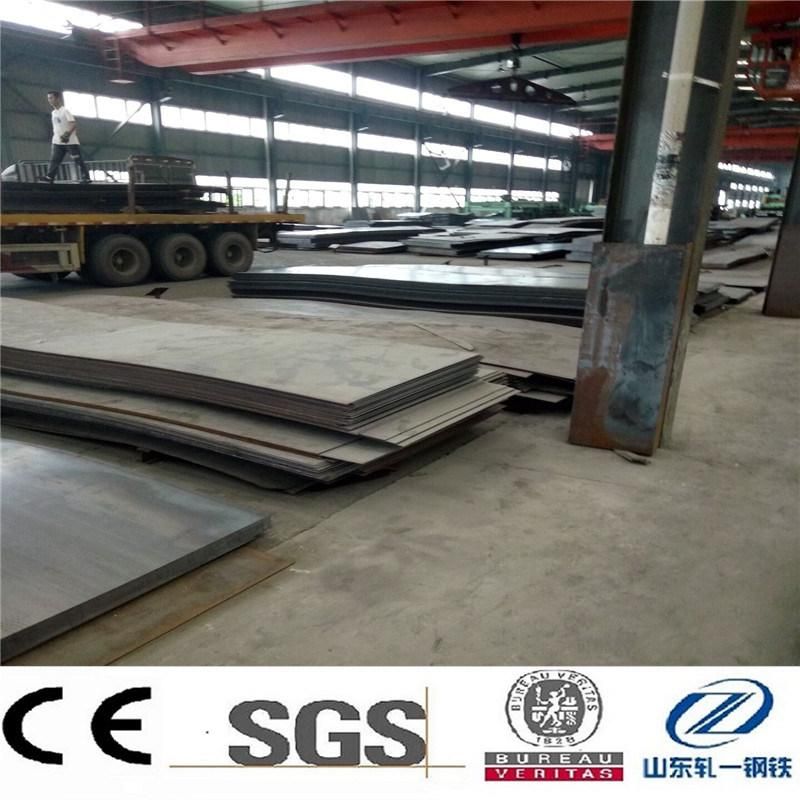

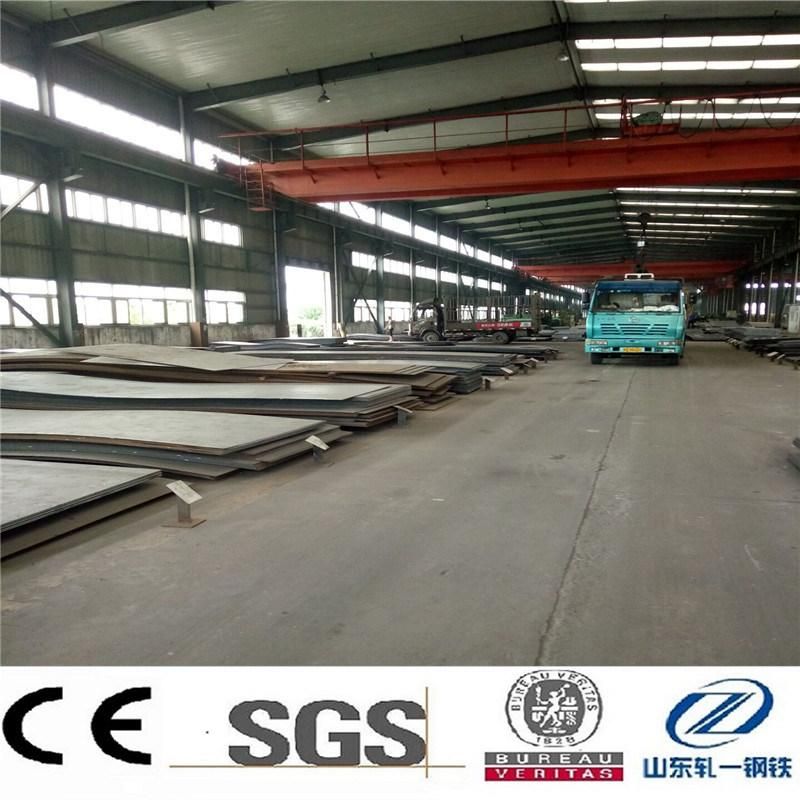

Corner of warehouse:

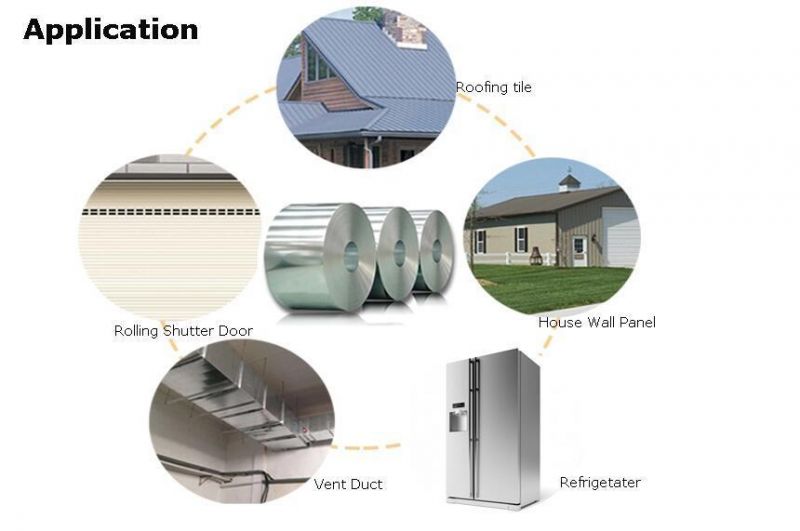

Usage:

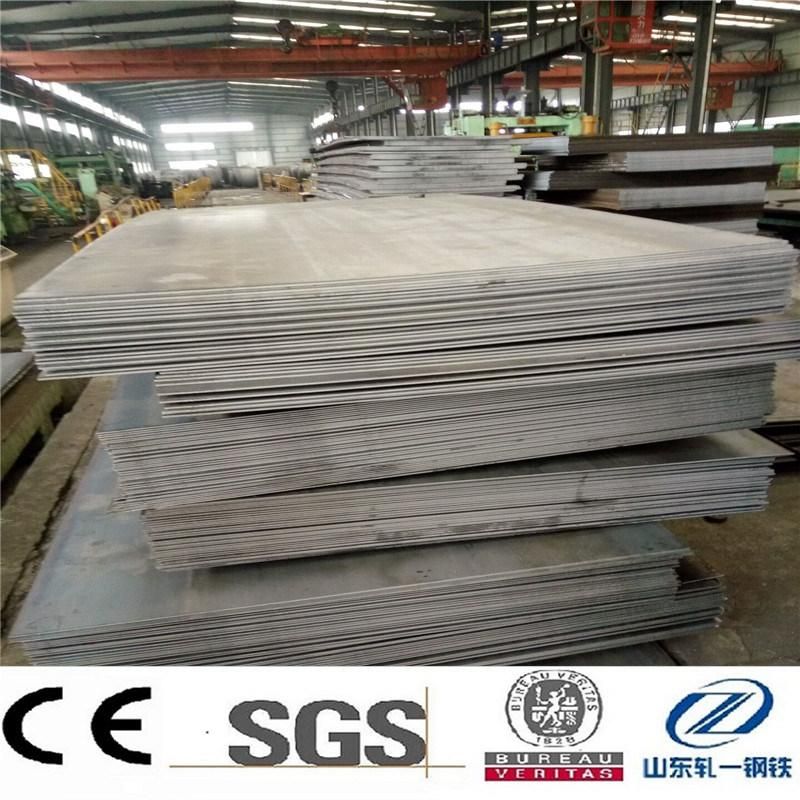

Detail of steel plate:
