Galvanized Steel Coil - Spangle
CHANGZHOU DINGANG METAL MATERIAL CO., LTD.- Type：Steel Plate
- Standard：ASTM, AISI, GB, JIS, DIN, BS
- Certification：ISO, RoHS, IBR
- Surface Treatment：Galvanized
- Technique：Hot Rolled
- Application：Mold & Dies
Base Info
- Model NO.：dx51d
- Special Use：Wear Resistant Steel
- Thickness：0.16-1.5mm
- Width：as to Your Order
- Length：as to Your Order
- Transport Package：Sea Wothy Packing
- Specification：0.14-3.0mm
- Trademark：DINGANG
- Origin：China
- HS Code：72104900
- Production Capacity：1000ton,Mouth
Description
Basic Info.
Model NO. dx51d Special Use Wear Resistant Steel Thickness 0.16-1.5mm Width as to Your Order Length as to Your Order Transport Package Sea Wothy Packing Specification 0.14-3.0mm Trademark DINGANG Origin China HS Code 72104900 Production Capacity 1000ton/MouthProduct Description
The Feature of Hot dipped galvanized sheet (HDGI):1). Standard: JIS G3302 or EN 10327
2). Thickness range of the HDGI: 0.15mm to 3.0mm
Tolerance of thickness of The Galvanized Steel Roll: +/-0.03mm
3). Width range: 700mm to 1250mm
Tolerance of width: +/-3.00mm (aiming to +/-2.00mm)
4) Grade: SGCC or DX51D, other grade can be available
5). Zinc coating: Z60-Z275

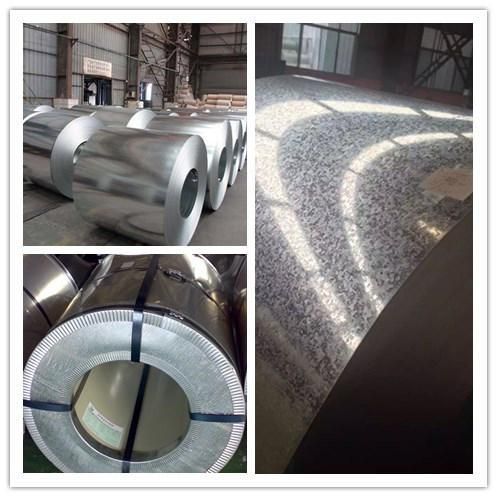

6). Surface: Regular spangle, min spangle etc
7). Coil weight: 4-5 tons
8). Coil ID: 508 mm

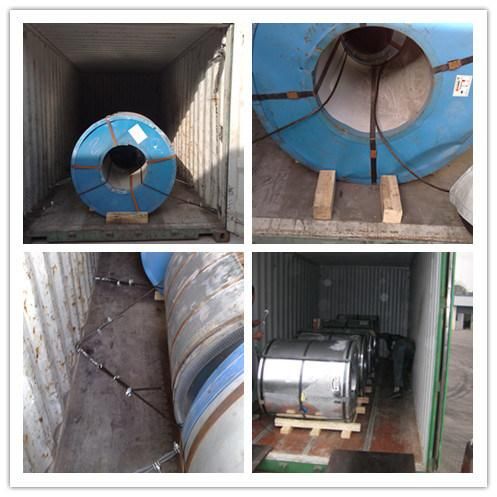

9) Packing: Seaworthy, in container
10). Applications of galvanized steel coil: Widely used for roofs, outer walls, ovens,
Explosive-proof steel, electrically controlled cabinets, and industrial freezers in the
Residential and industrial buildings.
