China Supplier High Tension Low Carbon 4.0mm Diameter Gi Steel Wire Q195 Hot Dipped Galvanized Steel Wire
ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD.- Certification：ISO, CCC, CE
- Surface：Smooth
- Technique：Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Construction, Steel Cable
- Alloy or Not：Non-alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Samples：Free Samples
- MOQ：1 Ton
- Transport Package：Coil Packing, Z2 Packing, Wooden Reel Packing
- Specification：3.18-19.05MM
- Trademark：yunhe
- Origin：China
- HS Code：7217200000
- Production Capacity：12000 Per Month
Description
Galvanized steel wire strand In (mm)
Dia No of wire In (mm)
Wire Dia Weight lb/1000ft
(kg/km) Common Grade lbf (KN) Siemens Martin
Grade
lbf (KN) High Strength
Grade
lbf (KN) Extra High Strength Grade
lbf (KN) Zinc Coating Mass (g/m2) 1/8 (3.18) 7 0.041 (1.04) 32(48) 540 (2.402) 910 (4.048) 1330 (5.916) 1830 (8.140) 122 5/32 (3.97) 7 0.052 (1.32) 51 (76) 870 (3.870) 1470 (6.539) 2140 (9.519) 2940 (13.078) 122 3/16 (4.76) 7 0.062 (1.57) 73 (109) 1150 (5.115) 1900 (8.452) 2850 (12.677) 3990 (17.748) 153 7/32 (5.56) 3 0.104 (2.64) 88 (131) 1400 (6.228) 2340 (10.409) 3500 (15.569) 4900 (21.796) 244 7/32 (5.56) 7 0.072 (1.83) 98 (146) 1540 (6.850) 2560 (11.387) 3850 (17.126) 5400 (24.020) 153 1/4 (6.35) 3 0.120 (3.05) 117 (174) 1860 (8.274) 3040 (13.523) 4730 (21.040) 6740 (29.981) 259 1/4 (6.35) 7 0.08 (2.03) 121 (180) 1900 (8.452) 3150 (14.012) 4750 (21.129) 6650 (29.581) 183 9/32 (7.14) 3 0.130 (3.30) 137 (204) 2080 (9.252) 3380 (15.035) 5260 (23.398) 7500 (33.362) 259 9/32 (7.14) 7 0.093 (2.36) 164 (244) 2570 (11.432) 4250 (18.905) 6400 (28.469) 8950 (39.812) 214 5/16 (7.94) 3 0.145 (3.68) 171 (255) 2490 (11.076) 4090 (18.193) 6350 (28.246) 9100 (40.479) 275 5/16 (7.94) 7 0.104 (2.64) 205 (305) 3200(14.234) 5350 (23.798) 8000 (35.586) 11200 (49.820) 244 3/8 (9.52) 3 0.165 (4.19) 220 (328) 3330 (14.813) 5569 (24.732) 8360 (37.187) 11800 (52.489) 275 3/8 (9.52) 7 0.120 (3.05) 273 (407) 4250 (18.905) 6950 (30.915) 10800 (48.040) 15400 (68.503) 259 7/16 (11.11) 7 0.145 (3.68) 399 (595) 5700 (25.355) 9350 (41.591) 14500 (64.499) 20800 (92.523) 275 9/16 (14.29) 7 0.188 (4.78) 671 (1000) 9600 (42.703) 15700 (69.837) 24500 (108.981) 35000 (155.688) 305 9/16 (14.29) 19 0.113 (2.87) 637 (949) 9640 (42.881) 16100 (71.616) 24100 (107.202) 33700 (149.905) 244 5/8 (15.88) 19 0.125 (3.18) 796 (1186) 11000 (49.930) 18100 (80.513) 28100 (124.995) 40200 (178.819) 259 3/4 (19.05) 19 0.150 (3.81) 1155 (1721) 16000 (71.172) 26200 (116.543) 40800 (181.487) 58300 (259.331) 275
Dia
Wire Dia
(kg/km)
Grade
lbf (KN)
Grade
lbf (KN)
lbf (KN)

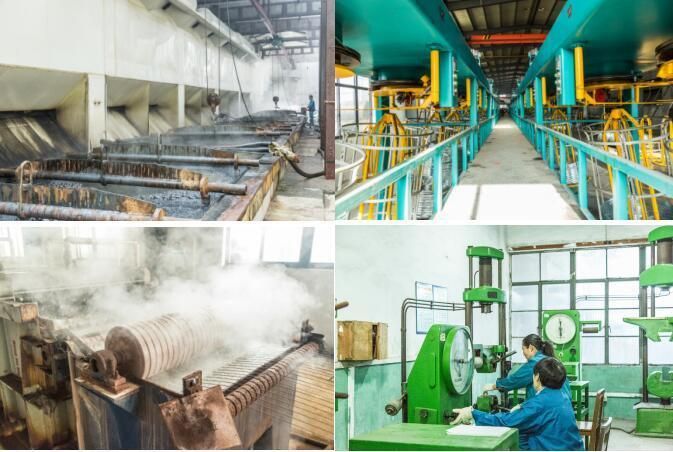

The factory was set up in 1958. Registered ZHEJIANG WANSHENG YUNHE STEEL CABLE CO., LTD in 2006. Nowadays it has became an enterprise which specially produce brand "Yunhe" metal product series in metallurgical industry. Also it is national key supporting hightech enterprise. We now have a registered capital of 200 million RMB and covering an area of 30 thousand square meters. Our company has attained ISO9001 quality management system certification and ISO 14001 quality system certification.
We are well recognized and praised by numerous customers both home and abroad because of our first-class quality, in-time delivery and high-efficiency service.
| Zinc coating | EN10257 |
| Material | Q195/Q235/SAE1006/SAE1008 45# 60# 65# 70# 80# 72A 72B 82B |
| Key word | Hard Drawn Steel Wire |
| Diameter | 0.3mm -13mm |
| Surface treatment | hot-dipped/electric /ungalvanized /phosphate galvanized |
| Price Term | FOB, CFR, CIF,LC |
| Package | Standard export packing. In coils, water-proof cloth. Or according to customer's needs. |
| Tensile strength | 300-550Mpa TO Galvanzied Steel Hard Drawn Steel Wire |
| Surface | hot-dipped/electric /ungalvanized /phosphate galvanized TO Low Caron Hard Drawn Steel Wire |
| Port of loading | zhejiang,China |
| Usage | Cable , agriculture ,ACSR , gabion , |
