Good Price Stainless Steel Precision Tubes for Textile Spinning Flyers
Zhangjiagang Maitan Metal Products Co., Limited- Type：Stainless Steel Precision Tube
- Standard：ASTM, AISI, GB, DIN, EN
- Grade：300 Series
- Certification：ISO, AISI, ASTM, GB, EN, DIN
- Shape：Round
- Technique：Cold Rolled
Base Info
- Model NO.：TP 304, 304L, 316, 316L
- Surface Treatment：Bright
- Sizes：Od 3 to 65 Mm
- Transport Package：Wooden Cases
- Specification：OD 3 mm up to 65 mm
- Trademark：TONGJI ENGINEERING
- Origin：China
- HS Code：7404419000
- Production Capacity：40 Tons, Month
Description
Basic Info.
Model NO. TP 304, 304L, 316, 316L Surface Treatment Bright Sizes Od 3 to 65 Mm Transport Package Wooden Cases Specification OD 3 mm up to 65 mm Trademark TONGJI ENGINEERING Origin China HS Code 7404419000 Production Capacity 40 Tons/ MonthProduct Description

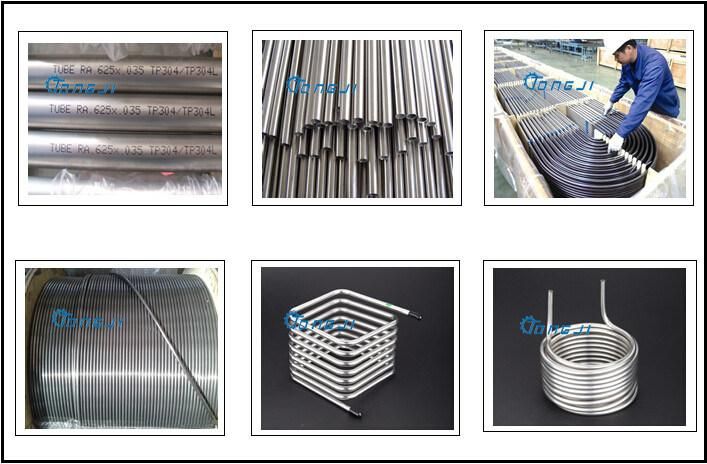

Stainless Steel Precision TubeSpecification: ASTM A213,A269,A511,A312,A270
Grades:TP304,304L,316,316L,317L,310S,321,347,S30813
Excellent Dimensional Accuracy and consistency In OD ,
OD range OD 3 mm up to 65 mm
WT range: 0.2mm up to 4 mm
Tough tolerance in Dimension for customers critical needs.
Finish Condition: Bright Annealed, Polishing, Mirror.
Inner Surface Roughness control Ra 0.4 Max at any point along full length, Min Ra 0.15 um.
Excellent Straightness meets customers critical needs.
Application: Medical Treatment, Pneumatic Cylinders,Automotive & Heating, Textile spinning flyers, Electronical components, Medical instruments.
| Products (mm) | Inside (mm) | Outside (mm) | Coaxiality (mm) | Cylindricity (mm) |
| ID6(7x0.5) | ID6(+0.04/-0) | OD7(+0.03/-0.03) | 0.02 | 0.04 |
| ID8(9x0.5) | ID8(+0.04/-0) | OD9(+0.03/-0.03) | 0.02 | 0.04 |
| ID10(11x0.5) | ID10(+0.04/-0) | OD11(+0.03/-0.03) | 0.02 | 0.04 |
| ID12(13.4x0.7) | ID12(+0.05/-0) | OD13.4(+0.05/-0) | 0.02 | 0.05 |
| ID16(17.4x0.7) | ID16(+0.05/-0) | OD17.4(+0.05/-0) | 0.02 | 0.05 |
| ID20(21.4x0.7) | ID20(+0.05/-0) | OD21.4(+0.05/-0) | 0.025 | 0.05 |
| ID25(26.4x0.7) | ID25(+0.05/-0) | OD26.4(+0.05/-0) | 0.025 | 0.05 |
| ID32(33.6x0.8) | ID32(+0.06/-0) | OD33.6(+0/-0.05) | 0.03 | 0.06 |
| ID40(41.6x0.8) | ID40(+0.06/-0) | OD41.6(+0/-0.05) | 0.03 | 0.06 |
| ID50(52x1) | ID50(+0.1/-0) | OD52(+0.1/-0.1) | 0.04 | 0.07 |
| ID63(65x1) | ID63(+0.1/-0) | OD65(+0.1/-0.1) | 0.04 | 0.07 |
