AISI 1045 Carbon Steel Forging / SAE 1045 S45c C45 Forged Steel Round Bars
Laiwu Xincheng Metal Co., Ltd.- Type：Carbon Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Forged
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
- Alloy：Non-alloy
- Delivery Condition：Forged , Forged+Rough Turned
Base Info
- Model NO.：SAE 1045 S45C C45
- Heat Treatment：Annealed, Normalized, Qt
- MOQ：One Piece
- Grades：SAE 1045 S45c C45 Ck45 1.1191
- Products：SAE 1045 S45c Forged Steel Round Bar
- Ut Standard：Sep 1921 C,C D,D E,E

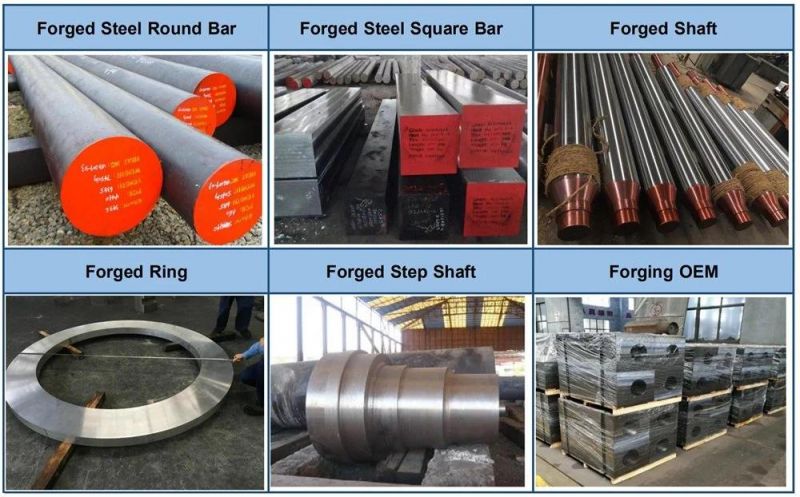

- Types：Forged Steel Round Bar, Square Bar,Rings

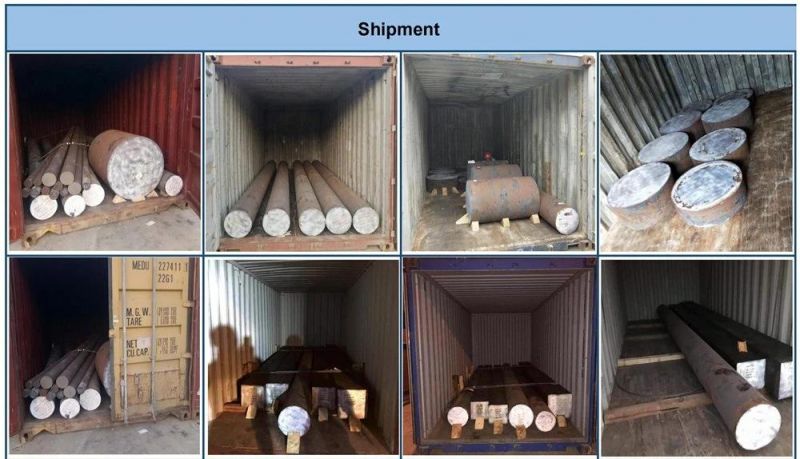

- Transport Package：Standard Sea Worthy
- Specification：200-1200mm
- Origin：China
- Production Capacity：3000tons,Month
Description
Basic Info.
Model NO. SAE 1045 S45C C45 Heat Treatment Annealed, Normalized, Qt MOQ One Piece Grades SAE 1045 S45c C45 Ck45 1.1191 Products SAE 1045 S45c Forged Steel Round Bar Ut Standard Sep 1921 C/C D/D E/E Types Forged Steel Round Bar, Square Bar,Rings Transport Package Standard Sea Worthy Specification 200-1200mm Origin China Production Capacity 3000tons/MonthProduct Description
AISI 1045 Carbon Steel Forging / SAE 1045 S45C C45 Forged Steel Round Bars
1.SAE 1045 S45C forged steel bar sizes we can offer;
Round bar: 200-1200mm
Square bar:150×150-700×700mm
Rings and other special profile : as per drawing
2.Supply condition for 1045 Forged steel bars:Black /Rough Machined /Rough turned
3.Futhur heat treatment for forged steel :
Normalized
Annealed
Q&T(Quenched&Tempered)
4.Forged Steel round bar tolerance:
Black surface
Forged sizes up to 500mm (-0/+5mm)
Forged sizes above 500mm in diameter (-0/+8mm)
Machined surface to all sizes (-0/+3mm)
5.1045 forged steel bar Equivalent and chemical composition
| Standard | Grade | C | Si | Mn | P | S |
| GB/T699 | 45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | 0.035 | 0.035 |
| JIS G4051 | S45C | 0.42-0.48 | 0.15-0.35 | 0.6-0.9 | 0.03 | 0.035 |
| ASTM A29/A29M | 1045 | 0.43-0.5 | 0.15-0.35 | 0.6-0.9 | 0.04 | 0.05 |
| EN 10083-2 | C45E/1.1191 | 0.43-0.5 | 0.4 | 0.5-0.8 | 0.03 | 0.035 |
6.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d
7.MOQ: one piece per size/grade
8.Payment term: FOB CIF CFR EXW and so on
9.Delivery time : 7 to 30 days after deposit received.
SAE 1045 S45C Carbon Steel Forged Round Bar 200mm to 1200mm
