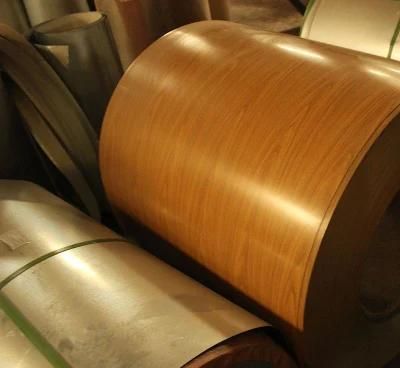

Wooden Grain PPGI /PPGL

Stiron (Shanghai) Industrial Co., Ltd
  • After-sales Service：Once Delivered and Checked
  • Warranty：Once Delivered and Checked
  • Standard：ASTM, JIS, GB, AISI, DIN, BS
  • Certification：ISO, RoHS, IBR
  • Surface Treatment：Coated
  • Technique：Cold Rolled

Base Info

  • Model NO.：PPGI,PPGL
  • Application：Construction
  • Edge：Slit edge
  • Stock：Stock
  • Colors：as Per Customer Requirement
  • Transport Package：Export Standard Package or as Request
  • Specification：0.14-0.6mm x 750-1550mm
  • Trademark：STIRON
  • Origin：Shandong Province, China
  • HS Code：72107010
  • Production Capacity：700, 000 Tons Per Year

Description

GradeSGCC, CGCC, SGCH, DX51D+Z/DX53D+Z/S220GD-550GDThickness0.13-0.80mmWidthMax1250mmLengthBy coilBase materialGI/GLPainting ThicknessTop side: 10-25microns; Back side: 3-20micronsColourRAL NO./Your sampleCoil ID508mmPackingWaterproof paper+plastic film+iron packing+bundling, or as per customers request.ApplicationCorrugated steel sheet, Ceiling channel, industrial refrigeration, cold storage, door panel, sandwich panel, PU panel.Primer coating (Top)It is helpful to strengthen the adhesion to the substrate so that the paint is not easy to desorb after the paint film is permeated, and it will also improve the corrosion resistance because the primer contains corrosion inhibitors, such as chromate pigments, which make the anode passivation. To improve corrosion resistance.Front coatingIt shields sunlight and prevents ultraviolet rays from damaging the coating; when the primer coating (Top) reaches the specified thickness, it can form a dense shielding coating, reducing water and oxygen permeability.Primer coating (Back)The effect is to prevent corrosion of steel plates from the inside.Zinc coatingGenerally use galvanized or galvalume steel, this part of the product's service life has the greatest impact, the thicker the coating corrosion resistance performance is better.PackageWaterproof paper+plastic film+iron packing+bundling, or as per customers request.RemarksInsurance is all risks and accepts the third-party testLoading PortTianjin/Qingdao port   Wooden Grain PPGI /PPGL
