• Model NO.：304 316 321 310S S32205 S32760,32750 Alloy601 69
• Transport Package：Wooden Case,Plywood Case,Other Seaworthy Packing
• Specification：ASTM AISI JIS GB DIN EN
• Trademark：ZJDP
• Origin：Zhejiang, China
• Production Capacity：5000 Tons

Basic Info.

Model NO. 304 316 321 310S S32205 S32760/32750 Alloy601 69 Transport Package Wooden Case,Plywood Case,Other Seaworthy Packing Specification ASTM AISI JIS GB DIN EN Trademark ZJDP Origin Zhejiang, China Production Capacity 5000 Tons

Product Description

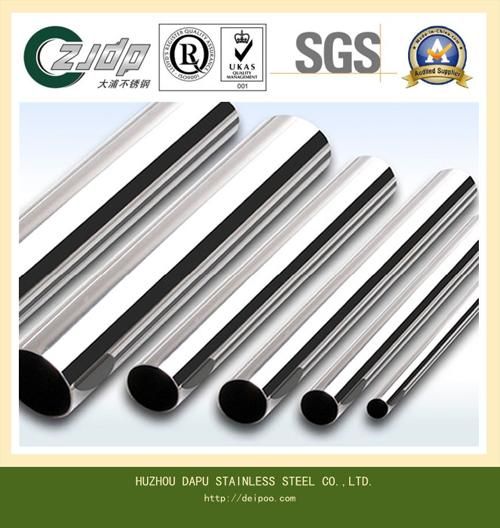

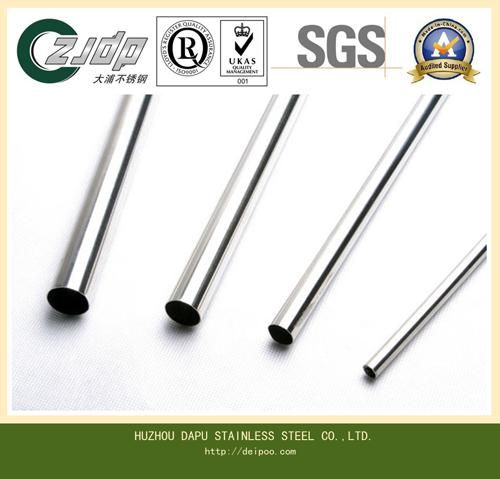

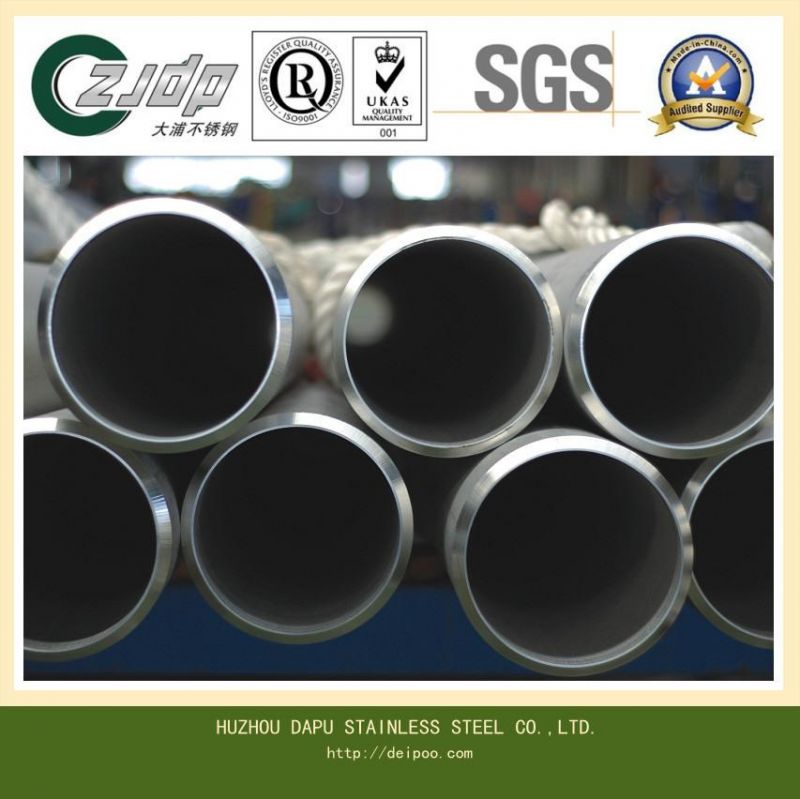

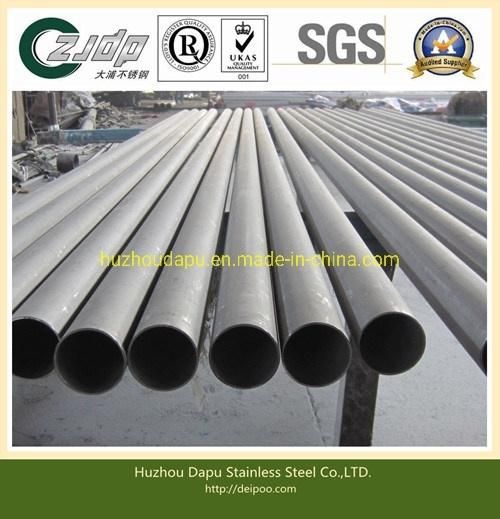

A270 304 stainless steel sanitary tubing

Chemical  Composition:

   UNS               Type       C              Mn          Si          P            S             Cr            Ni          Mo       Nax
   Designation                 MMax        Max       Max       Max

    S30400          304       ≤0.08     ≤2.00       ≤1.00    ≤0.45    ≤0.03     18-20      8-11       /           /



Mechanical Properties:

  UNS             Type          Tensile,   min         Yield,min              Elongation,min          Hardness,max
                                                                                                            2 inch or 50mm
Designation                      Kis     Mpa             Kis      Mpa              min   %                      Rockwell B

 S30400        304              75     515                30       205               40                               92


Surfasce Treatment

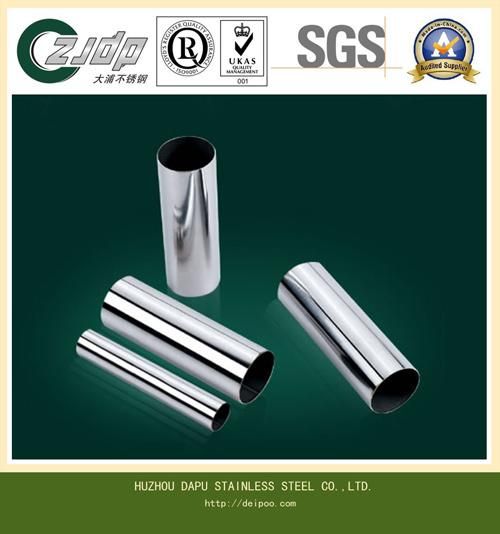

mirror finish,Bright Annealing,and so on

Size:
Outer diameter:6mm-273mm
Wall thickness:0.6mm-20mm
Length:1-12 meters as you requirement

Usage:
dairy tube,food making,drink produce equipment or container,pharmaceutical producing equipment.
