• Model NO.：LD-SS-001
• Purlines：C-Section Steel
• Sandwich Panel：EPS,Fiber Glass,Rock Wool, PU
• Material：Steel Structure, Sandwich Panel
• Usage：Warehouse, Workshop
• Keyword：Steel Structure Warehouse
• Design：Free
• Service Life：Permanent Building
• Color：Customized
• Structure Surface Treatment：Painting,Hot-DIP Galvanization
• Door：Rolling Shutter Door,Sliding Door
• Steel Column/Bean：H Section Steel
• Transport Package：Bulk Packing
• Specification：ISO 9001, 2000 CE, BV, SGS
• Trademark：LIDA
• Origin：China
• HS Code：9406000090
• Production Capacity：50000 Square Meter Per Month

Basic Info.

Model NO. LD-SS-001 Purlines C-Section Steel Sandwich Panel EPS/Fiber Glass/Rock Wool/ PU Material Steel Structure, Sandwich Panel Usage Warehouse, Workshop Keyword Steel Structure Warehouse Design Free Service Life Permanent Building Color Customized Structure Surface Treatment Painting,Hot-DIP Galvanization Door Rolling Shutter Door/Sliding Door Steel Column/Bean H Section Steel Transport Package Bulk Packing Specification ISO 9001, 2000 CE, BV, SGS Trademark LIDA Origin China HS Code 9406000090 Production Capacity 50000 Square Meter Per Month

Product Description

 1. Introduction:

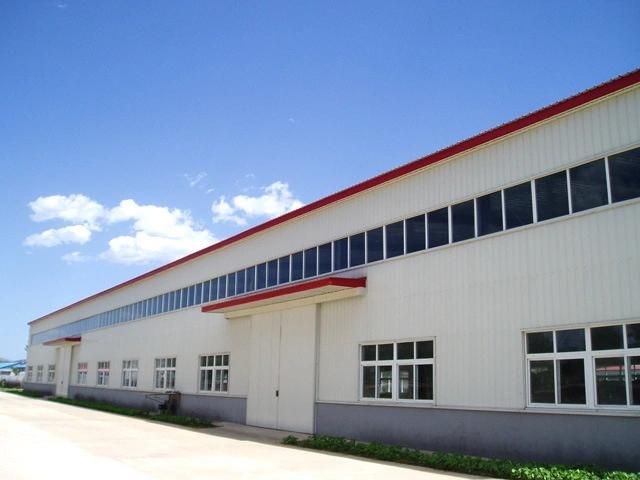

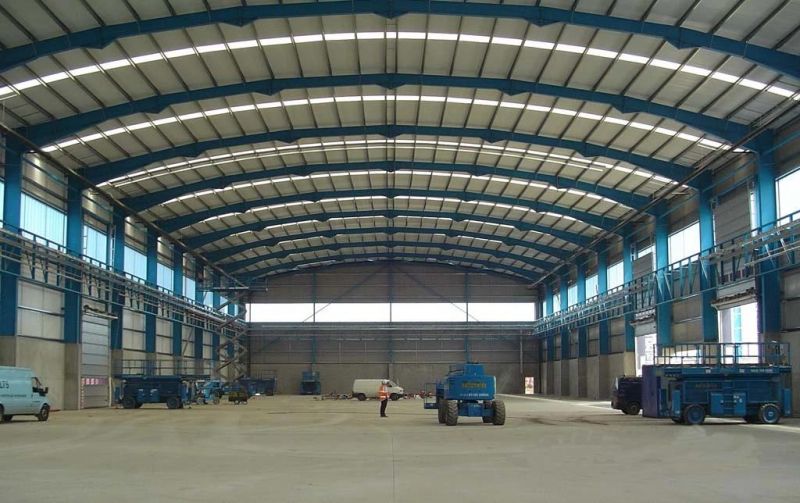

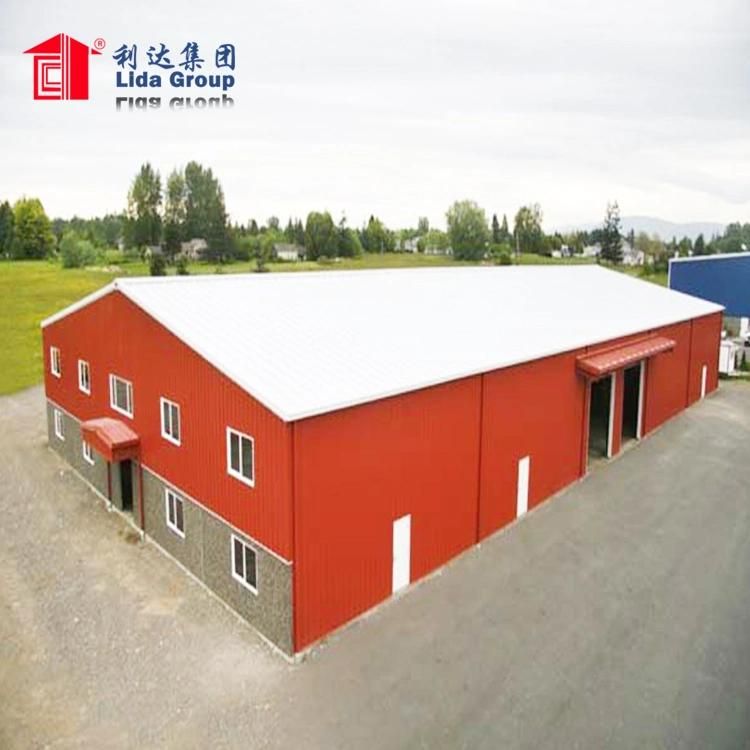

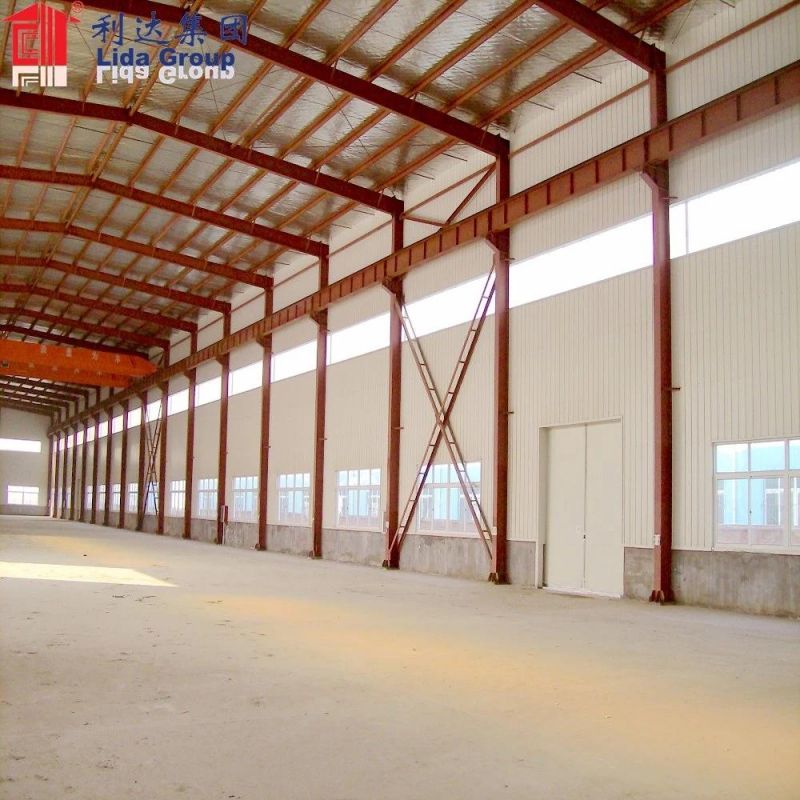

Steel structure building is widely used as large factory, warehouse, workshops, bridges, stadiums and other buildings. Light steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors




2. Characteristics:
1.Wide span: single span or multiple spans, the max span is 36m without middle column
2.Low cost: unit price range from USD35/m2 to USD70/m2 according to customers request
3. Fast construction and easy installation
4. Long using lifespan: up to 50 years
5.Others: environmental protection, stable structure, earthquake resistance, water proofing, and energy conserving.

Material	Specification
Length	With customer's requirement
Width	Single span, double-span, Multi-span
Height	With customer's requirement
Column	Q235, Q345 welded H section steel
Beam	Q235, Q345 welded H section steel
Purlin	Q235 C channel or Z channel
Knee brace	Q235 angle steel
Vertical and transversal support	Q235 angle steel, round bar or steel pipe
Tie bar	Q235 steel pipe
Brace	Q235 round bar
Cladding system	EPS, PU, Fiber Glass and Rock Wool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in Diferent colors&gauges

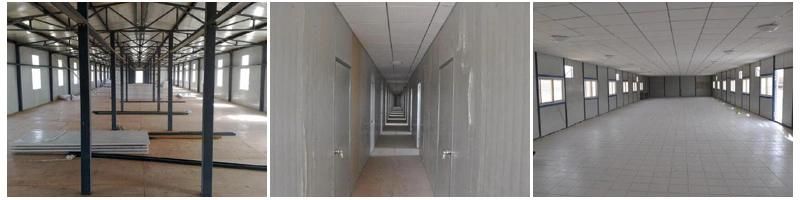

Partition wall	sandwich panels (EPS, PU, Fiber glass, Rock Wool etc.) available in Different colors&gauges
Door	sandwich panel sliding door or roller door
Gutter	stainless steel or color steel sheet
Rainspout:	PVC
Live load on roof	In 120kg/Sqm (Color steel panel surrounded)
Wind resistance grade	12 grades
Earthquake-resistance	8 grades
Structure usage	Up to 50 years
Finishing options	vast array of colors and textures available
Paint Options	Alkyd paiting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.

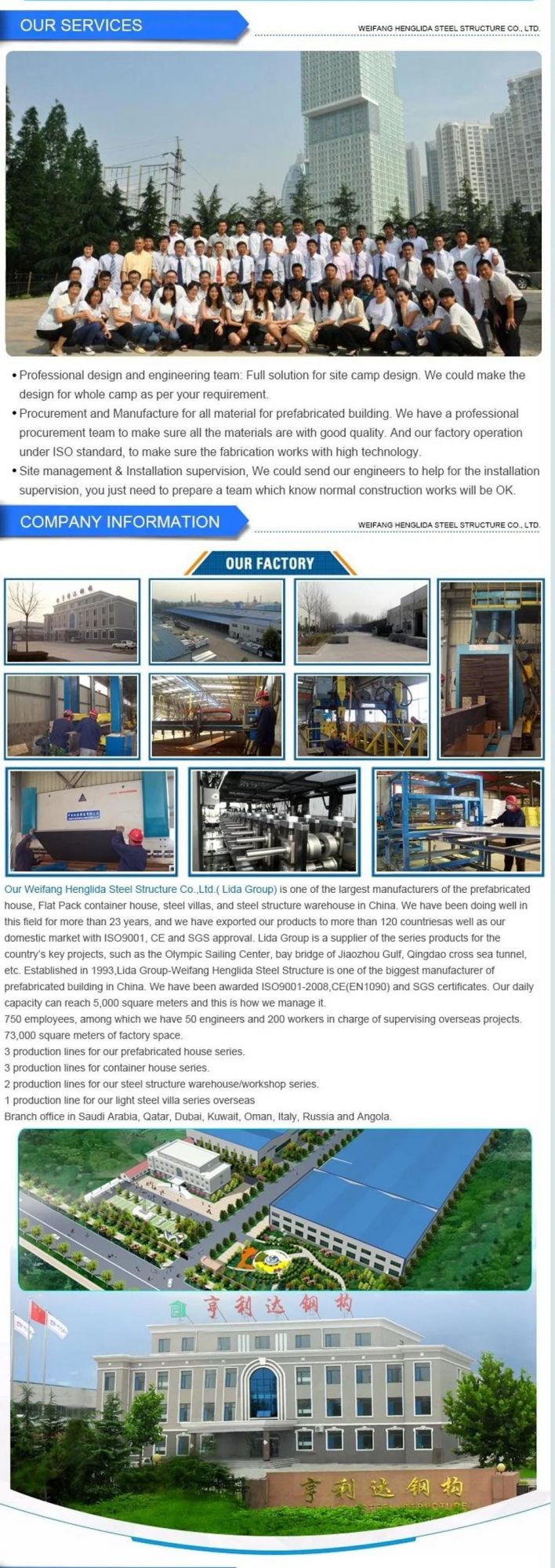

3. Our services
(1). Professional design and engineering team: Full solution for site camp design. We could make the design for whole camp as per your requirement.
(2). Procurement and Manufacture for all material for prefabricated building. We have a professional procurement team to make sure all the materials are with good quality. And our factory operation under ISO/CE/SGS standard, to make sure the fabrication works with high technology.

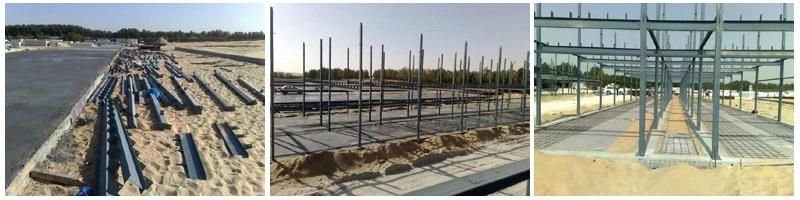

(3). Site management & Installation supervision, We could send our engineers to help for the installation supervision, you just need to prepare a team which know normal construction works will be OK.
