• Model NO.：SAE5140,1.7035,SCr440,40Cr
• Production Process：Eaf(Ebt) + Lf + Vd + Continuous Casting + Hot Roll
• Hardness：Prehardened to Hb179-240
• Tempering Temperature：850-870 Degree
• Test：ISO,Mill Certificate
• Transport Package：Normal Package&Customers′ Demand
• Specification：Dia: 16mm-310mm Length: 2-10 m
• Trademark：CF STEEL
• Origin：China
• HS Code：7228300000
• Production Capacity：1000t,Month

Basic Info.

Model NO. SAE5140/1.7035/SCr440/40Cr Production Process Eaf(Ebt) + Lf + Vd + Continuous Casting + Hot Roll Hardness Prehardened to Hb179-240 Tempering Temperature 850-870 Degree Test ISO/Mill Certificate Transport Package Normal Package&Customers′ Demand Specification Dia: 16mm-310mm Length: 2-10 m Trademark CF STEEL Origin China HS Code 7228300000 Production Capacity 1000t/Month

Product Description

SAE5140/40Cr/1.7035/SCr440 alloy steel for mechanical

Chemical composition(%):

Si	Mn	S	P	Cr	Ni	Cu
0.17-0.37	0.70-0.90	<=0.040	<=0.035	0.70-0.90	<=0.30	<=0.30

Application:
ASTM5140 is the most commonly used alloy structural steel, tensile strength, yield strength and hardenability are higher than the 40 steel, but the weldability is limited, there is a tendency to crack.
ASTM5140 is used for more important quenching and tempering parts, such as parts under variable load, medium speed and medium load.

Properties:
5140 is medium carbon tempered steel, cold heading die steel.
The steel is moderate in price and easy to process. It can obtain a certain toughness, plasticity and wear resistance after proper heat treatment.
Normalizing can promote the spheroidization, improve the cutting performance of hardness less than 160HBS of blank.
The steel has the best comprehensive mechanical properties at the temperature of 550~570.
The steel is a high degree of quenching, suitable for high frequency quenching, flame hardening and other surface hardening treatment.

Heat treatment specification:
quenching 850 degree, oil cooling; tempering at 520 degrees C, water cooling, oil cooling.

Delivery condition:
Hot rolled or forged/ peeled or black surface/annealed or Q+T.

Delivery time:
For abundant stock, 15-20 days.For customized products, 30-50 days.


All the sizes as require can be customerized as fresh production with MOQ,products of required specifications can be developed/produced per international, chinese or industry standards,
or based on agreements with customers.

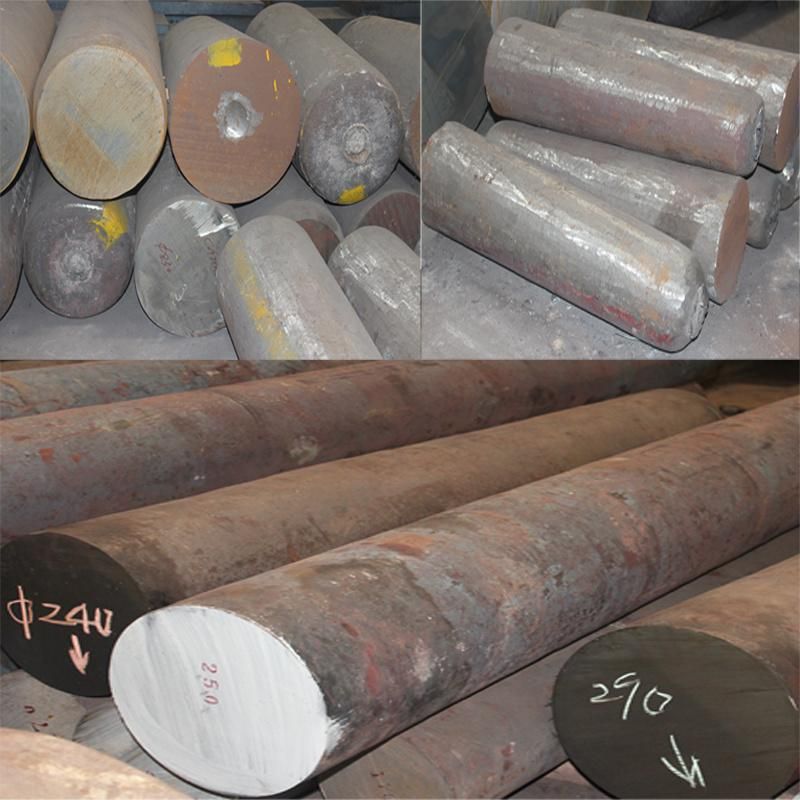

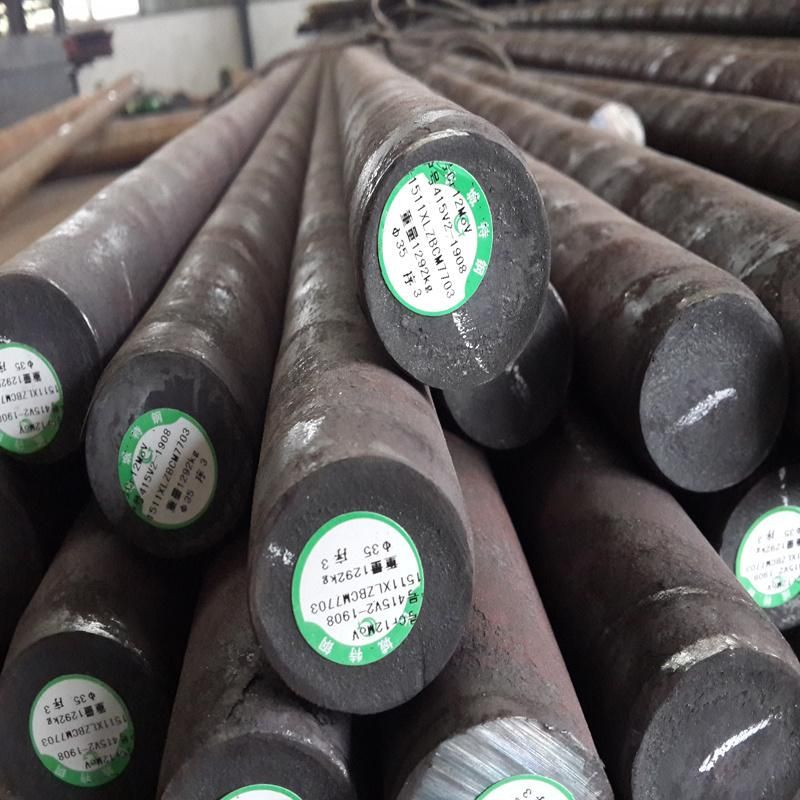

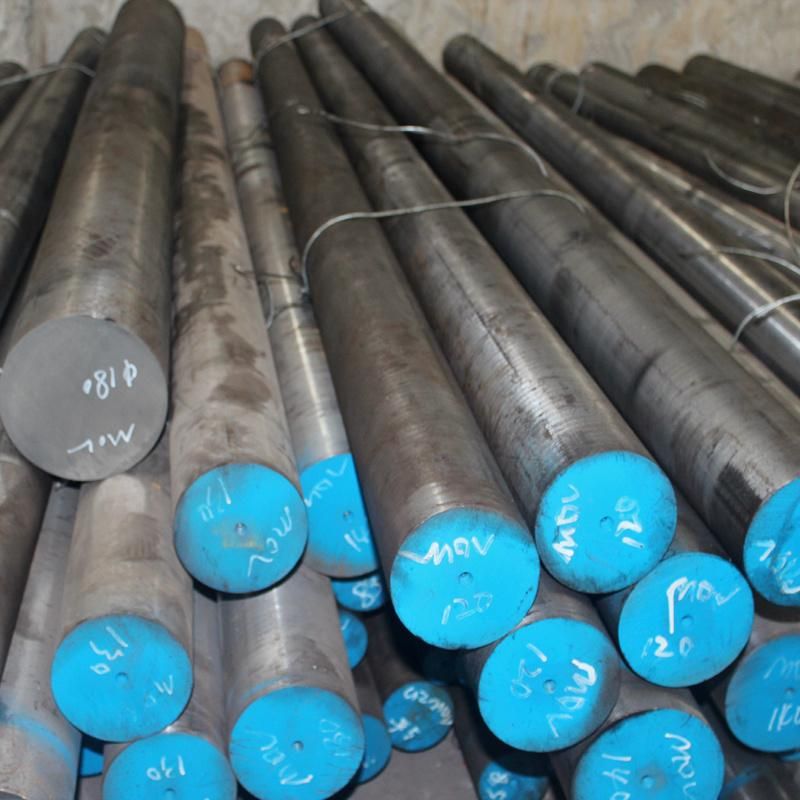

Product pictures:
