• Model NO.：C45 1045 Carbon Steel Square Bar
• Products：1045,S45c Hot Rolled Steel Square Bar
• Sizes：10X10-150X150mm
• Surface：Hot Rolled Black
• MOQ：5tons Per Size
• Delivery Time：7-25 Days
• S45c Hot Rolled Steel Square Bar：SAE 1045 Steel Square Bar
• C45 Hot Rolled Steel Square Bar：Laiwu Xincheng Metal
• Transport Package：Standard Sea Worthy
• Specification：5*5mm-150*150mm
• Origin：China
• Production Capacity：3000tons,Month

Basic Info.

Model NO. C45 1045 Carbon Steel Square Bar Products 1045/S45c Hot Rolled Steel Square Bar Sizes 10X10-150X150mm Surface Hot Rolled Black MOQ 5tons Per Size Delivery Time 7-25 Days S45c Hot Rolled Steel Square Bar SAE 1045 Steel Square Bar C45 Hot Rolled Steel Square Bar Laiwu Xincheng Metal Transport Package Standard Sea Worthy Specification 5*5mm-150*150mm Origin China Production Capacity 3000tons/Month

Product Description

C45 1045 Carbon Steel Square Bar

1.Hot rolled steel square bar Sizes we can offer:
1)Side sizes:10X10 to 150X150 MM
2)Length:1-8Metal or as required
3)R corner: Sharo or round corner as per requirements
4)Straightness: max 3mm/m

2.Application of the hot rolled steel square bar
1): Can be used in many fields such as building, automobile, shipbuilding, petrochemical, machinery, medicine, food, electric power, energy, space, building and decoration, etc.
2): Can be made into mould template, mortise pin, column
3): This kind of steel have good mechanical property, is widely used in structural parts which may support stress alternation, especially made into some connecting rods, bolts, wheel gear...
4): This kind of steel is the most common blanks and materials of shaft parts.

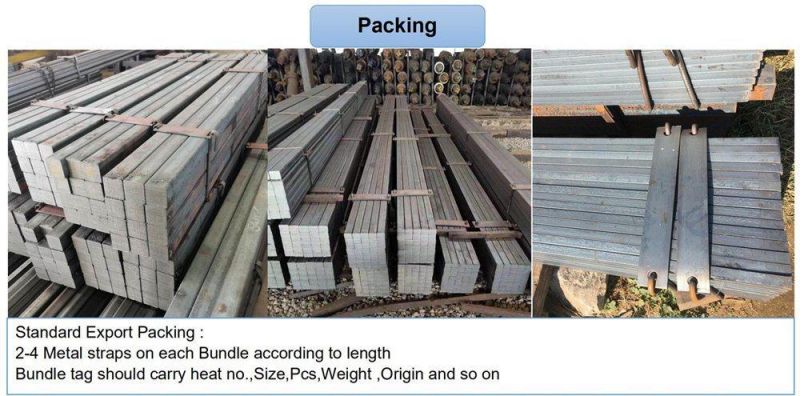

3.Packing :
1): Paint oil on the surface to protect steel bars from rusting.
2): Bundle packing by Iron Strips.
3): Bundle weight is from 2mt to 3 mt.
4): Two or three tags will be attached on each bundle.


4.Equivalent grade and chemical composition to SAE 1045,S45C

Standard	Grade	C	Si	Mn	P	S
GB/T699	45	0.42-0.5	0.17-0.37	0.5-0.8	0.035	0.035
JIS G4051	S45C	0.42-0.48	0.15-0.35	0.6-0.9	0.03	0.035
ASTM A29/A29M	1045	0.43-0.5	0.15-0.35	0.6-0.9	0.04	0.05
EN 10083-2	C45E/1.1191	0.43-0.5	0.4	0.5-0.8	0.03	0.035

5.Mechanical property of SAE 1045,S45C steel square bar

Tensile Strength(Mpa)	600 (min)
Yield Strength(Mpa)	355 (min)
Elongation	16 (min)
Shrinkage	40 (min)
Akv(J)	39 (min)

6.Payment terms: T/T or L/ C
(1)30% paid by T/T and rest 70% by T/T upon the copy of B/B.
(2)100% irrevocable L/C at sight
7.MOQ:5tons
8.Delivery time:7-30 days upon to the order details
9.Trade term: FOB CFR CIF EXW and so on
10.. Mark: including steel material, heat No., pieces, weight, date and so on.
