• Model NO.：Stainless Steel 17-4ph
• Surface Treatment：Bright
• as Per The Drawing：as Per The Drawing
• ISO 9001：ISO 14001
• Ohsas：Ohsms 18001
• Powder：as Per The Drawing
• Transport Package：Wooden or Steel Frame Crate Packing
• Specification：CE
• Trademark：LY
• Origin：Jiangyin
• HS Code：722840000
• Production Capacity：5000000PCS,Year

Basic Info.

Model NO. Stainless Steel 17-4ph Surface Treatment Bright as Per The Drawing as Per The Drawing ISO 9001 ISO 14001 Ohsas Ohsms 18001 Powder as Per The Drawing Transport Package Wooden or Steel Frame Crate Packing Specification CE Trademark LY Origin Jiangyin HS Code 722840000 Production Capacity 5000000PCS/Year

Product Description

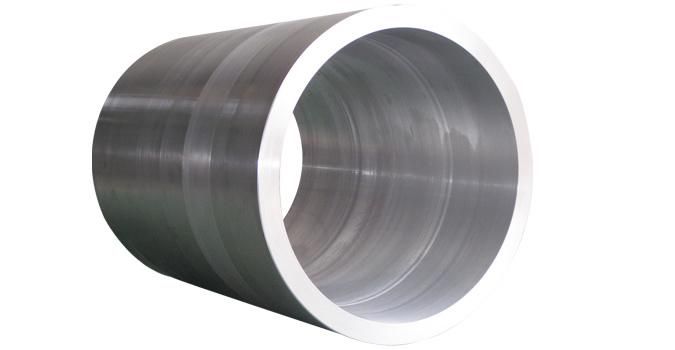

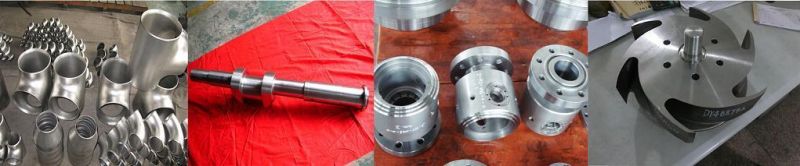

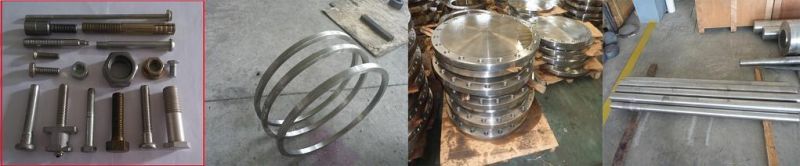

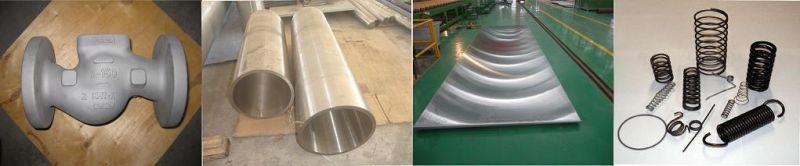

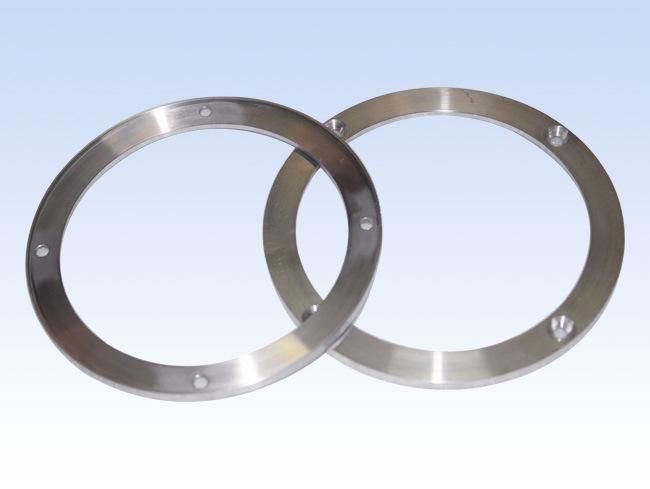

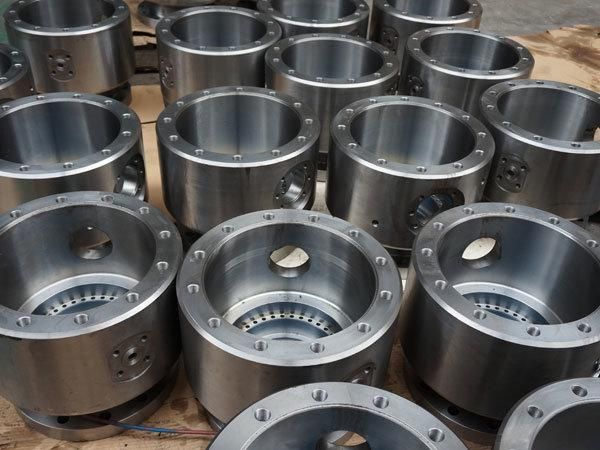

We are professional Stainless Steel 17-4pH (1.4542,X5crnicunb16-4,AISI 630,SUS 630,UNS S17400,Z6CNU17-04,X5CrNiCuNb16.4,17/4pH, 17-4 pH,) material factory from chinaWe could supply Stainless Steel 17-4pH (1.4542,X5crnicunb16-4,AISI 630,SUS 630,UNS S17400,Z6CNU17-04,X5CrNiCuNb16.4,17/4pH, 17-4 pH,)material in the forms of Forging parts,Forged Rings,Rolled Rings,forged shafts, hollow bars,tube sheets, forged discs,forged sleeves,round Bars,rods,flanges, Casting Parts,Pipe Fittings,elbows, reducer, tee, seamless pipe,Weled Pipes,tubings,gaskets,Plates,Sheets,Strips,Coils Wires,spring ,Fasteners,Machining Parts, and so on
17-4ph is a precipitation hardening martensitic stainless steel. Typical usage is seen in applications requiring high strength and a modest level of corrosion resistance. Strength and toughness desired can be manipulated by temperate range in the heat treatment process.17-4 PH stainless steel can be used for a variety of applications including: pump shafts, oil path, mechanical seals, and within the aerospace industry. Its composition is carbon, chromium, columbian + tantalum, copper, manganese, nickel, phosphorous, silicon, and sulfur. We own one workshop of more than 8000 square meters, with a vacuum melting, electroslag remelting, forging, heat treatment, machining, quality inspecting machines and a full-line of production systemWe will do following inspections for our 17-4ph material:Charpy Impact Testing,Tensile Testing,Chemical Analysis,Metallurgical Evaluation,Failure Analysis,Hardness Testing,Macrostructure Testing,Stress Rupture Testing as per the needs of the clientsWelcome the inquiry




Material Type	Condition	Ultimate Tensile Strength (PSI)	0.2% Yield Strength (PSI)	Elongation (% In 2in.)	Reduction Of Area (%)	Hardness Brinell	Hardness Rockwell
17-4 PH	H900	190,000	170,000	10	40	388	C40
	H1025	155,000	145,000	12	45	331	C35
	H1075	145,000	125,000	13	45	311	C32
	H1150	135,000	105,000	16	50	277	C28
	H1150-M	115,000	75,000	18	55	255	C24
	H1150-D	125,000	105,000	16	50	255 min - 311 max	C24 - 33
