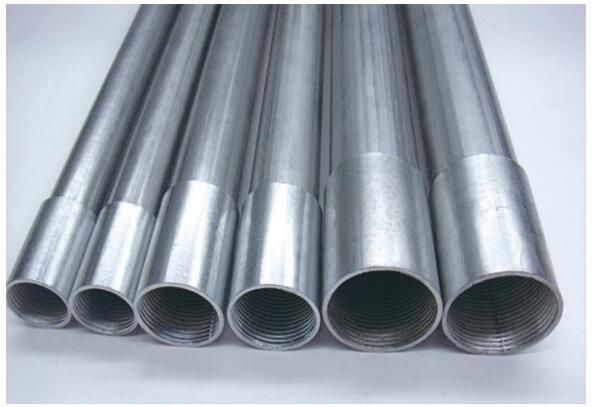

Conduit Pipe
Guangzhou Kingmetal Steel Industry Co., Ltd.- Type：Welded
- Technique：ERW
- Material：Carbon Steel
- Surface Treatment：Galvanized
- Usage：Pipeline Transport, Construction & Decoration, Special Purpose, Conduit Pipe
- Section Shape：Round
Base Info
- Model NO.：KM-20200508
- Od：20mm-355mm
- Wt：0.5mm-12mm
- Steel Grade：Gr.B,Ss400, Q195, Q235,Q345,S235jr,S355jr,St37
- Production Standard：ASTM A53, BS1387
- Galvanized：Hot-DIP Galvanized, Cold Galvanized,Pre-Galvanized
- MOQ：10 Tons
- Shape：Round, Rectangular, Square
- Business Type：China Manufacturer, Supplier & Exporter
- Transport Package：in Bundle or as Customers′ Requirement
- Specification：ASTM, BS, DIN etc.
- Trademark：Kingmetal
- Origin：Made in China
- HS Code：73063090
- Production Capacity：3000 Tons,Month
Description
SizeOutside Diameter Wall Thickness Length MIN MAX 1 2 20mm 19.7mm 20.0mm 1.6mm 1.35mm 3.75m 25mm 24.6mm 25.0mm 1.6mm 1.35mm 3.75m 32mm 31.6mm 32.0mm 1.6mm 1.35mm 3.75m Notes: Available on both Class 3 and Class 4. BS31:1940 Size Outside Diameter Wall Thickness Length MIN MAX 1 2 3/4" 18.8mm 19.1mm 1.6mm 1.35mm 3.75m 1" 25.1mm 25.4mm 1.6mm 1.35mm 3.75m 1-1/4" 31.5mm 31.8mm 1.6mm 1.35mm 3.75m
Standard: BS 4568:1970, BS31:1940
Grade/Material: 10#, 20#, 45#, Q195, Q235, Q345, 16Mn, ST 37.4, etc.
Alloy or not: Non-alloy
Secondary or not: Non-secondary
Production capacity: 3500 ton/week
Section shape: Round
Outer diameter: 20-32mm
Wall thickness: 0.5-20mm
Length: 3.05 or 3.75m
Technique tolerance: OD+/-0.5mm, WT +/-0.03mm, L+/-5mm
Surface treatment: Galvanized, painted, oiled, printed or powder coated
Zinc coated: class 3, 80-120 g/m2; class 4, 275-500 g/m2
Color: Silver, black or painted as request
Ends of pipe: One side threaded with coupling, one side with plastic cap
Minimum quantity or order: 10Mt
Trade term: FOB Tianjin China, C&F
Payment term: T/T or L/C
Loading Port: Tianjin Xingang Port, China
Package: 1.Big OD: in bulk; 2.Small OD: in bundles, packed by steel strips; 3. Waterproof package with plastic cloth; 4.Standard export package; 5.According to customers' requirements.
Delivery: Within 20-30 days after receiving T/T deposit or L/C
Our products spread all over the world, such as Germany,Romania, Italy, Turkey, Ukraine, South Africa, Mexico, Brazil ,Chile, Thailand ,Indonesia,Singapore, Philippines,Pakistan,India ,Dubai,Iran,Saudi Arabia,Kuwait......
Applications:
Conduit pipe is generally installed by electricians at the site of installation of electrical equipment. It is used to protect and route electrical wiring in a building or nonbuilding structure.
Competitive Advantage:
Standard: BS 4568:1970, BS31:1940
Grade/Material: 10#, 20#, 45#, Q195, Q235, Q345, 16Mn, ST 37.4, etc.
Alloy or not: Non-alloy
Secondary or not: Non-secondary
Production capacity: 3500 ton/week
Section shape: Round
Outer diameter: 20-32mm
Wall thickness: 0.5-20mm
Length: 3.05 or 3.75m
Technique tolerance: OD+/-0.5mm, WT +/-0.03mm, L+/-5mm
Surface treatment: Galvanized, painted, oiled, printed or powder coated
Zinc coated: class 3, 80-120 g/m2; class 4, 275-500 g/m2
Color: Silver, black or painted as request
Ends of pipe: One side threaded with coupling, one side with plastic cap
Minimum quantity or order: 10Mt
Trade term: FOB Tianjin China, C&F
Payment term: T/T or L/C
Loading Port: Tianjin Xingang Port, China
Package: 1.Big OD: in bulk; 2.Small OD: in bundles, packed by steel strips; 3. Waterproof package with plastic cloth; 4.Standard export package; 5.According to customers' requirements.
Delivery: Within 20-30 days after receiving T/T deposit or L/C
Our products spread all over the world, such as Germany,Romania, Italy, Turkey, Ukraine, South Africa, Mexico, Brazil ,Chile, Thailand ,Indonesia,Singapore, Philippines,Pakistan,India ,Dubai,Iran,Saudi Arabia,Kuwait......
Applications:
Conduit pipe is generally installed by electricians at the site of installation of electrical equipment. It is used to protect and route electrical wiring in a building or nonbuilding structure.
Competitive Advantage:
- High quality,
- Competitive price,
- Short delivery time,
- Satisfied service,
- Can be manufactured according to different standards.
