7X19 White Vinyl Coated Wire Rope
Chongqing Geyo Machinery Co., Ltd.- Certification：ISO, CE, ISO, CE, TUV
- Surface：Galvanized,Ungalvanized,Stainless Steel, Smooth
- Technique：Galvanized, Galvanized
- Application：Rope, Packaging, Netting, Manufacturing, Fencing, Rope, Construction
- Alloy or Not：Non-alloy, Non-Alloy
- Standard：BS, JIS, GB, ASTM, DIN, AISI, BS, JIS, GB, ASTM, DIN, AISI
Base Info
- Structure：7*19
- Tensile Strength：1570-1960MPa
- Diameter：as Customer′s Request
- Steel Grade：High Carbon Wire Rod
- Transport Package：in Wooden Reel
- Specification：0.2-52mm
- Trademark：GEYO
- Origin：China
- HS Code：7312100000
- Production Capacity：10000meters,Month
Description
Basic Info.
Structure 7*19 Tensile Strength 1570-1960MPa Diameter as Customer′s Request Steel Grade High Carbon Wire Rod Transport Package in Wooden Reel Specification 0.2-52mm Trademark GEYO Origin China HS Code 7312100000 Production Capacity 10000meters/MonthProduct Description

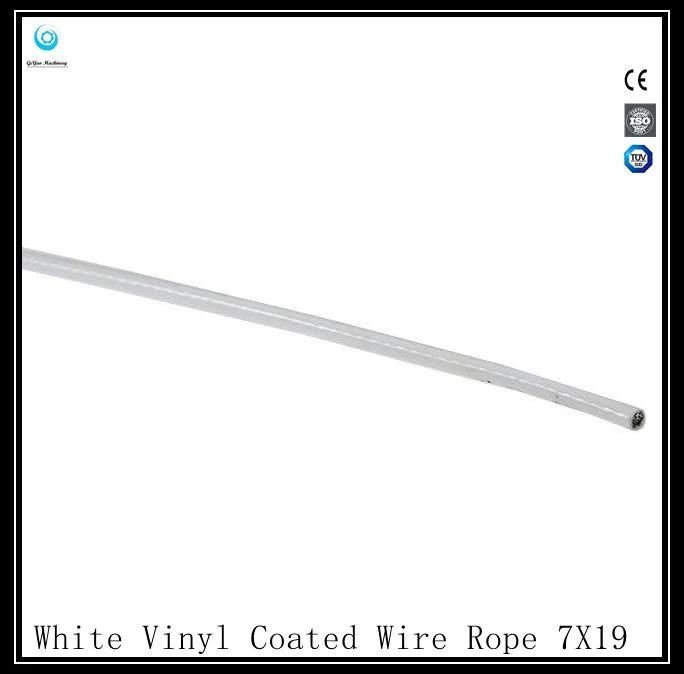

7x19 White Vinyl Coated Wire Rope
Features1.Superior Corrosion Resistant, Flexible and Wear Resistant.
2.Used with Winch Lines, Garage Door Cable, Exercise Equipment, and Railings.
Brief Description
1.White vinyl-coated 7x19 wire rope is ideal for use with event tents and canopies, and is often used to create an extra supporting structure to increase tension.
2.The weather-resistant coating adds a layer of protection and helps to maintain a professionally-looking aesthetic.
3.See our See our wire rope category for additional sizes and styles, and a variety of wire rope clips and wire rope thimbles.
Specification
| Diameter | Diameter w/ coating | Class | Material | Quantity | Break strength |
| 1/8" | 3/16" | 7x19 | White Vinyl coated Galvanized Steel | Ordered in lineal foot | 2000lbs |
| 3/16" | 1/4" | 7x19 | White Vinyl coated Galvanized Steel | Ordered in lineal foot | 4200lbs |
| 3/8" | 7/16" | 7x19 | White Vinyl coated Galvanized Steel | Ordered in lineal foot | 7000lbs |
Also known as aircraft cable, this 7 x 19 wire rope should not be used for aircraft purposes. A 7 strands with 19 wires per strand construction in galvanized steel results in a cable that's both flexible and creates excellent resistance to corrosion. A vinyl coating adds a layer of protection to shield the wire from grit, dirt, moisture and other abrasions. The tough yet flexible layer also seals in lubricant, to reduce wear on pulleys and sheaves. A PVC coated wire rope is also easier to handle.
This general purpose coated wire rope is ideal for use in fences and railings, sailboat rigging, winch lines, garage door cables, exercise equipment, etc. Plastic coated cable is also easier to handle than non coated steel cable.

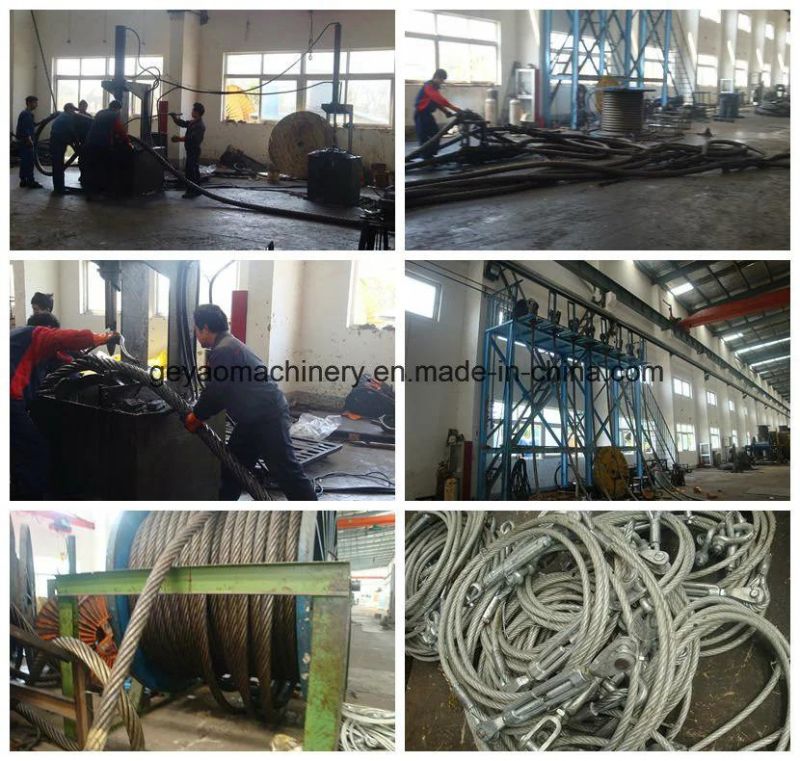

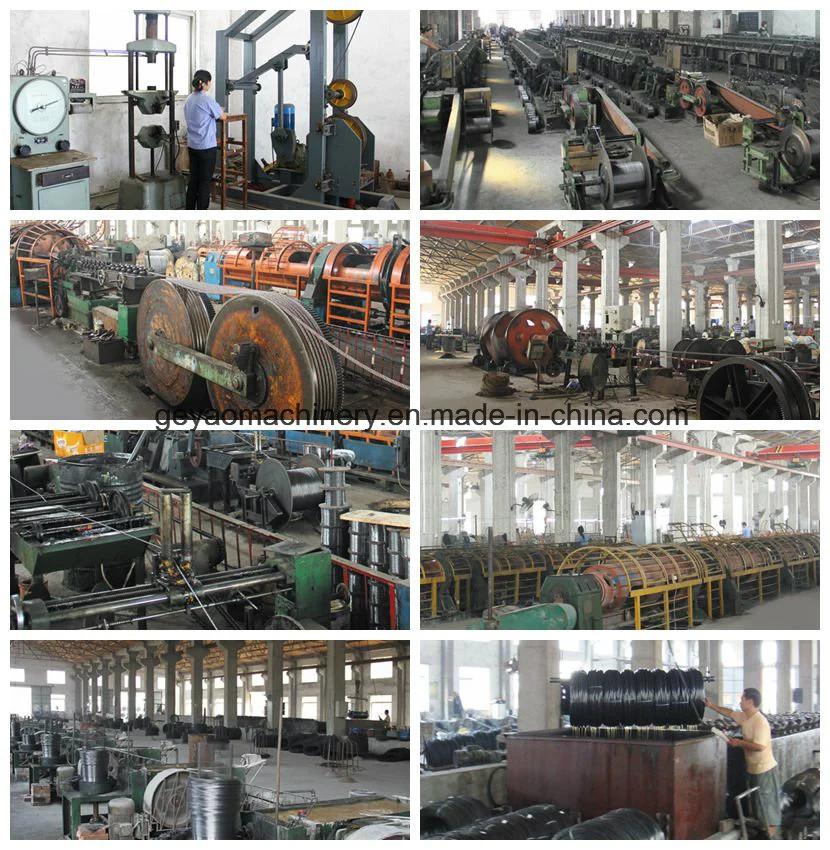

Please note: commercial grade PVC coated cable cannot be used for aircraft controls.PRODUCTION

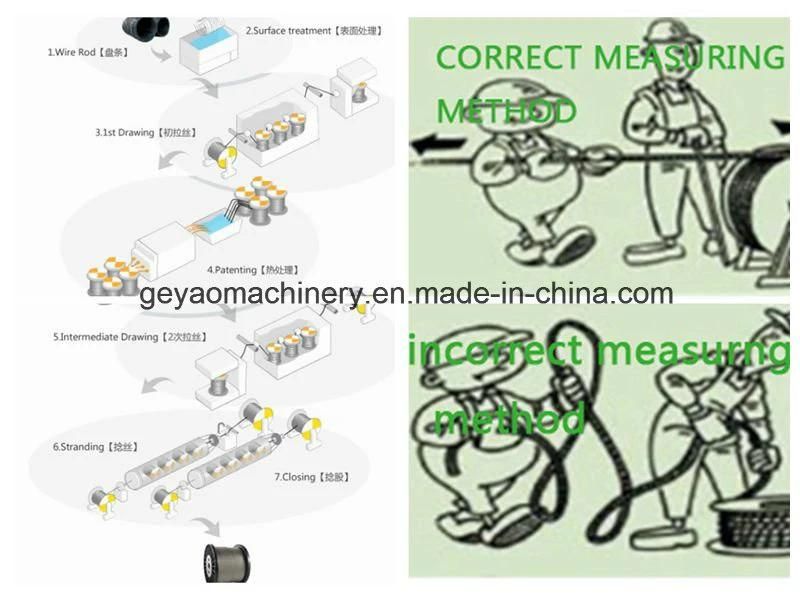

PRODUCTION FLOW AND MEASURING METHOD OF WIRE ROPE

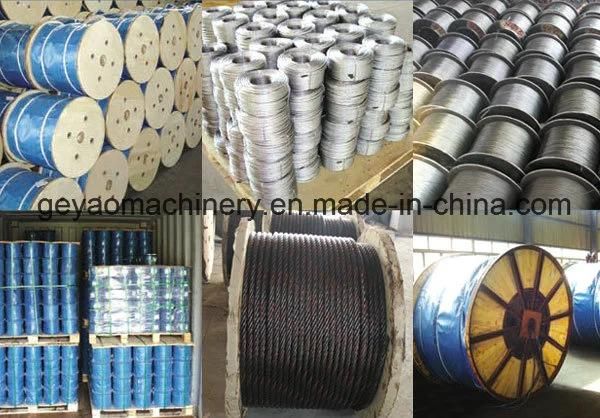

STORAGE

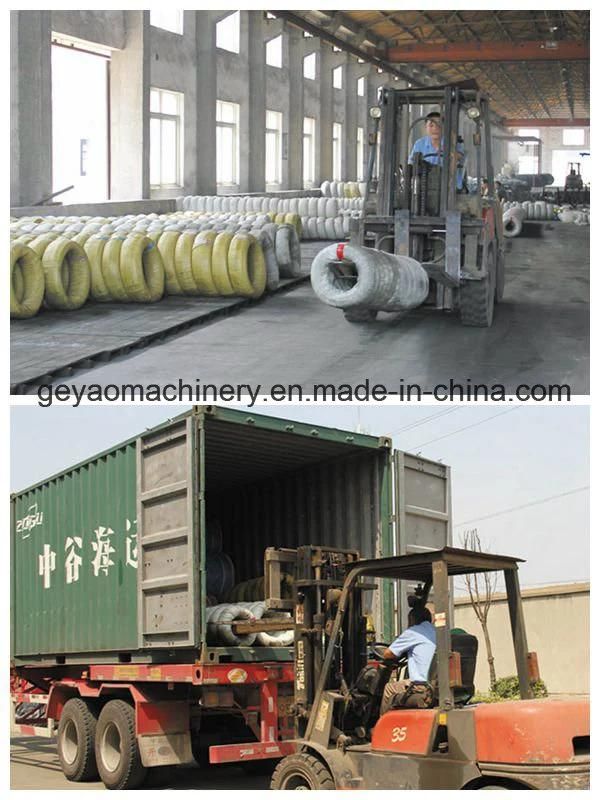

TRANSPORTATION OR LOADING
For enquiry,please kindly advise below information to us.
1.Application: For which rope will be used.
2.Size: Diameter of the rope in millimeter or inches.
3.Construction: Number of strands, number of wires per strand and type of strand construction.
4.Type of Core: Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC).
5.Lay: Right regular lay,left regular lay,right lang lay,left lang lay.
6.Lubrication:Preformed or not.
7.Material: Bright(un-galvanized),galvanized or stainless steel
8.Grade of wire: Tensile strength of wires
9.Breaking Load: Minium or calculated breaking load in tones or pounds.
10.Length: Length of wire rope.
11.Packing: In coils wrapped with oil paper and hessian(orp.p)cloth, or on wooden reels.
12.Quantity: By number of coils or reels,by length or weight
13.Specification: Any recognized specification, if necessary.
14.Certification: Mill sheet and/or a third party's inspection,if necessary.
15.Remarks: Shipping marks and any other special requirements.
