• Model NO.：Dingang
• Stock：Not Stock
• Thickness：0.16-3.0mm
• Width：as to Your Order
• Length：as to Your Order

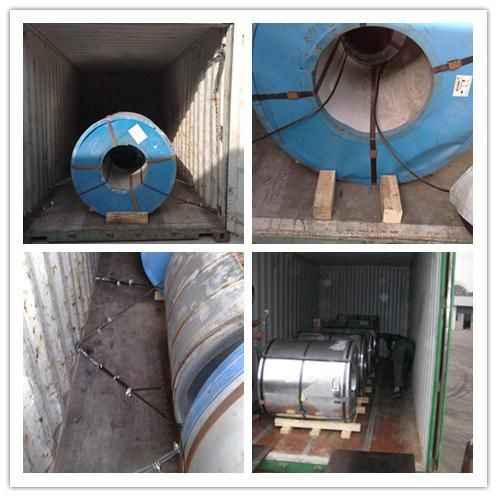

• Transport Package：Strandard Export Packing
• Specification：ISO9001 ;QS 9000
• Trademark：Dingang
• Origin：China
• HS Code：72107000
• Production Capacity：30million ton,year

Basic Info.

Model NO. Dingang Stock Not Stock Thickness 0.16-3.0mm Width as to Your Order Length as to Your Order Transport Package Strandard Export Packing Specification ISO9001 ;QS 9000 Trademark Dingang Origin China HS Code 72107000 Production Capacity 30million ton/year

Product Description

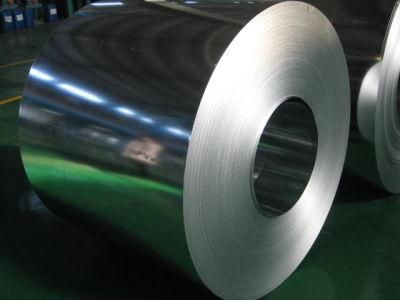

Galvanized Coil with normal spangle

1)Thickness range of the galvanized coil: 0.3mm-1.5mm
2)Thickness tolerance of Galvanized Coil: +/-0.03mm
3)Width range of the galvanized coil: 800-1250mm
4)Width tolerance: +/-0.15mm
5)Zinc coating: 60gsm-250gsm
6)Surface treatment of the Galvanized Coil: Chromated, unoiled/oiled, minimum or regular spangle

7)Quality of the galvanized coil: Commercial quality (soft and hard), lock forming quality, drawing Quality, structural quality as per JIS G 3302,
Standard: GB/T2518-2004 (Equivalent to ASTM A653, EN10142, JIS G3302)
Steel Grade: Q195(Equivalent to SGCC, DX51D+Z)

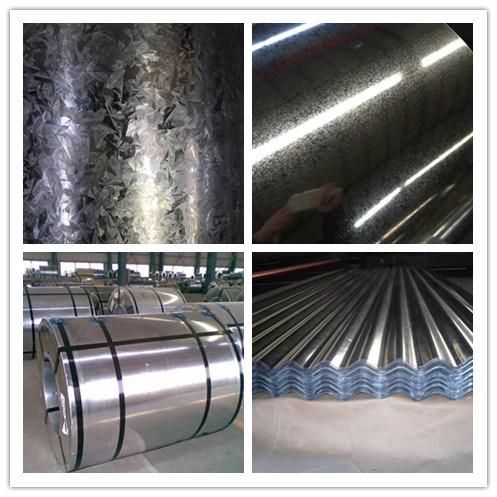

8) Surface finish of the Galvanized Coil: Regular spangle, minimized spangle, zero spangle, galvannealed
9) Surface treatment: Chromated, non-treated (dry), organic
10) Oiling of the Galvanized Steel Coil: Unoiled or oiled
11)Internal Diameter of the Galvanized Coil: 508 mm.

Standard	AISI, ASTM, BS, DIN, GB, JIS, etc
Grade	SGCC, DX51D, DX53D, DX54D, etc
Thickness	0.15-1.2mm
Effective Width	After Briquetting:  790-1025mm
Waves	8-15
Length	1000-6000mm
Zinc Coating	60g/m 2 -180g/m 2
Spangle State	regular spangle, small spangle, big spangle, non-spangle
Color	According to your requirements.
