ASTM B622 Nickel Alloy C22 Steel Pipes
Guangzhou Kingmetal Steel Industry Co., Ltd.- Type：Seamless
- Technique：Hot Rolled
- Material：Alloy Steel
- Surface Treatment：Oiled
- Usage：Boiler Pipe
- Section Shape：Round
Base Info
- Model NO.：wWAN279
- Length：5.8-11.8
- Size：1,2"-8"
- Name：Steam Boiler Pipe
- Product Material：15NiCuMoNb5,Wb36,1.6368
- Keyword：Alloy C22, Hastelloy C-22
- Tag：Alloy Pipes
- MOQ：200kg
- Transport Package：Bundles with Steel Strips and Wooden Frame
- Specification：1,8"-2"
- Trademark：KINGMETAL
- Origin：China
- HS Code：73060000
- Production Capacity：100000tons,Month
Description
Basic Info.
Model NO. wWAN279 Length 5.8-11.8 Size 1/2"-8" Name Steam Boiler Pipe Product Material 15NiCuMoNb5/Wb36/1.6368 Keyword Alloy C22, Hastelloy C-22 Tag Alloy Pipes MOQ 200kg Transport Package Bundles with Steel Strips and Wooden Frame Specification 1/8"-2" Trademark KINGMETAL Origin China HS Code 73060000 Production Capacity 100000tons/MonthProduct Description

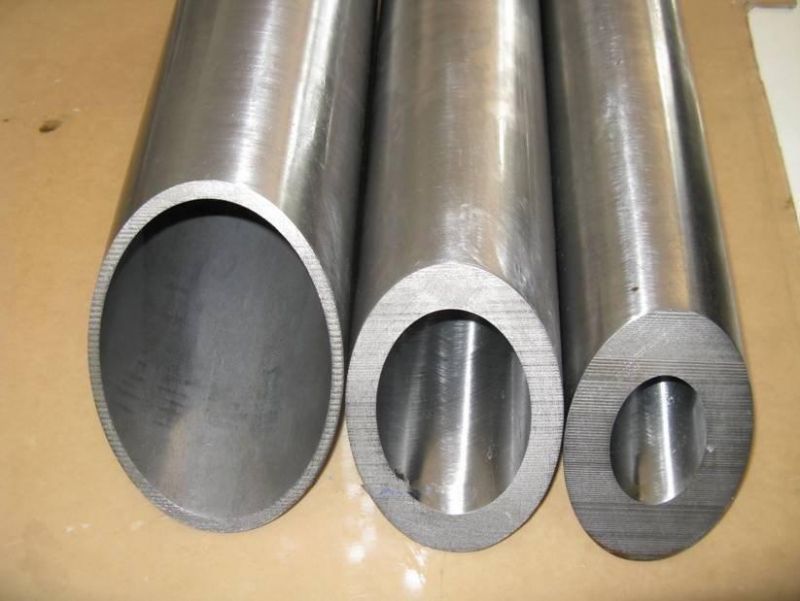

ASTM B 622 UNS N06022 STEEL PIPE ...
Other common names: HASTELLOY C-22 STEEL PIPE , alloy C22 steel pipes
seamless steel pipe Outer Diameter: 10mm-273.1mmpipe Wall Thickness: 1mm to 14mm
Other material besides Alloy C22 Steel Pipes we can do :
Incoloy800/800H/800HT(UNS N08800/N08810/N08811),Incoloy825(UNS N08825/2.4858),Inconel600/601/625(UNS N06600/N06601/N06625),Inconel725(N07725),Incoloy901/925/926(N09901/N08925/N08926),GH3030(80Ni20Cr),Monel400(N04400/2.4360)Nickel200(N02200/2.4060),Hastelloy C-276(N10276/2.4819)Alloy C22 PipesSTEEL PIPE PRODUCT SHOW
What are the characteristics of Hastelloy C22 steel pipe ?
- Resistant to pitting, crevice corrosion and stress corrosion cracking
- Outstanding resistance to both reducing and oxidizing media
- Excellent resistance to oxidizing aqueous media
- Exceptional resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, and seawater and brine solutions
- Resists the formation of grain-boundary precipitates in the weld heat-affected zone
- Excellent weldability
C22 steel pipe Chemical Composition, %
| C | Cr | Co | Fe | Mn | Mo | Ni | P |
|---|---|---|---|---|---|---|---|
| .010 max | 20-22.5 | 2.5 max | 2.0-6.0 | .50 max | 12.5-14.5 | Balance | .02 max |
| Si | S | W | V | ||||
| .08 max | .02 max | 2.5-3.5 | .35 max |
ASTM Specifications
| Pipe Smls | Pipe Welded | Tube Smls | Tube Welded | Sheet/Plate | Bar | Forging | Fitting |
|---|---|---|---|---|---|---|---|
| B622 | B619 | B622 | B626 | B575 | B574 | B564 | B366 |
what we do besides C22 steel pipe?
