• Model NO.：Galvanized Steel Coil
• Edge：Mill
• Stock：Stock
• Transport Package：International Standard
• Specification：1000, 1219, 1250, 1500, 1800, 2000, 2500
• Trademark：ZHONG YI STEEL
• Origin：China
• HS Code：7210410000
• Production Capacity：400000 Ton Per Year

Basic Info.

Model NO. Galvanized Steel Coil Edge Mill Stock Stock Transport Package International Standard Specification 1000, 1219, 1250, 1500, 1800, 2000, 2500 Trademark ZHONG YI STEEL Origin China HS Code 7210410000 Production Capacity 400000 Ton Per Year

Product Description

Product Description

CORRUGATED ROOFING STEEL SHEET
1. Description
  Thickness: 0.2-0.8mm
  Width: 665-1050mm
  Packing: Waterproof packing
  Commodity Galvanized corrugated sheet
  665-1050mm
  Wall thickness 0.2-0.8mm
  Length any length
  Standard SGCC

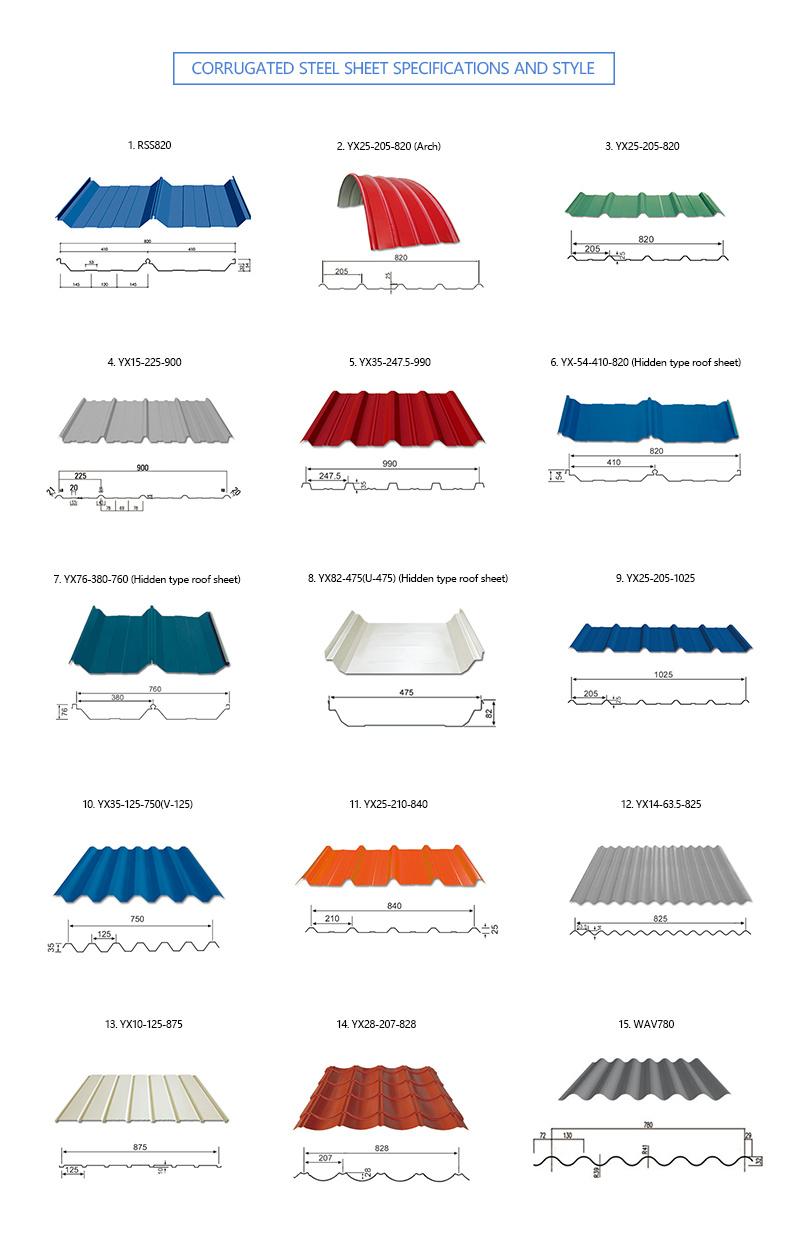

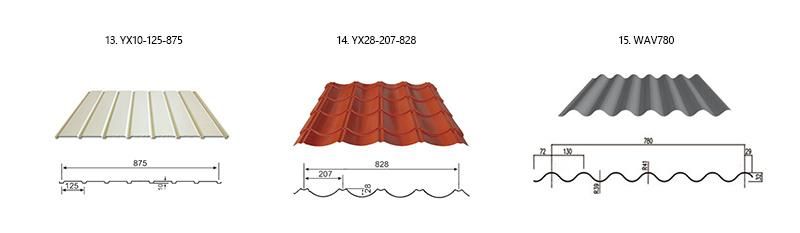

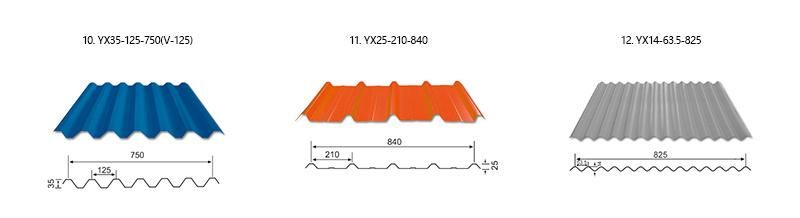

2. Common Forms
    Common Size as followings:
    762mm to 665mm(after corrugated) and 9 waves
    914mm to 750mm (after corrugated) and 12 waves
    1000mm to 890mm or 900mm(after corrugated) and 12 or 14 waves
     We can produce according to the client's requirement

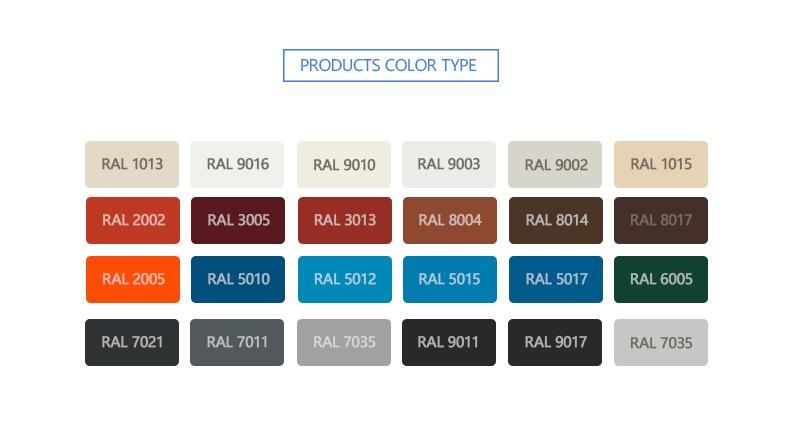

3. A feature of galvanized color coated corrugated roofing sheets as followed roofing sheet
1) Outlook Beautiful and novel, rich colors, flexible combination, can be used in different building  to express special original architectural styles in life
2) The surface has been treated as galvanized and color coated.so it can anti-rain,anti-fire,anti-quake, So it has a long-term life as 20-30 year and color just not fade.
3) Lightweight: easy to transport the material, short the time to finish the building, reduce worker's hard work, save much time and energy for human beings
4) Smooth surface treatment, the dust will be easily taken off by the rain
5) The environmental material can be used many times, will do no hard to our environment.
(6) 1000 width, and 880 effective widths or as your requirement, for easy setup.
(7) Prime anti-fire application, which is confirmed by GB50222-95 as difficult to fire as B
(8) Impact resistance, strength is 250-300 times of common glass,2-20times of tempered glass,
(9) Energy saving: keep summer cool, winter warm. Heat insulation effect is higher 7%-25% than that of the common glass, then heat loss is greatly reduced.
(10) insulation resistance: corrugated sheet with obvious effect of noisy.
(11) Light in weight, and have very good beatification vision effect.


Base Metal	Cold Rolled Steel Coil
Material	SGCC, SGCH, Full Hard
Grade	Commercia.Quality(CGCC,DX51D,DC01,SPCC), Structure.quality(S280GD,S320GD,S350GD). Deep.drawing.quality(DX52D,DX53D,DX54D,DX56D)
Standard	ASTM A653 CS/B,JIS G3302,DIN EN 10142,EN10327

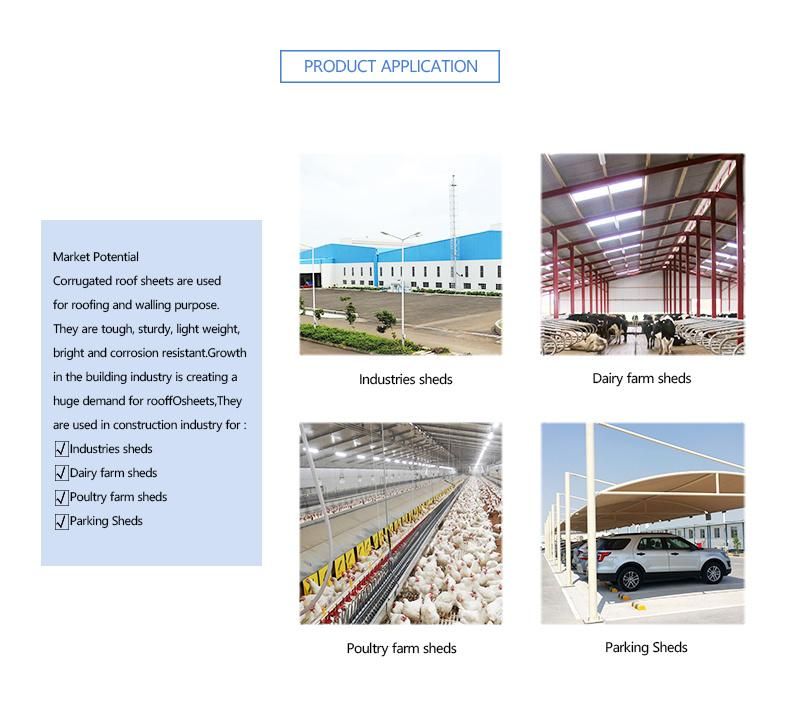

Application	Advertising,building trade,home electrical, Electrical industry,decoration,office furniture
Thickness	0.14-1.0mm
Tolerance	+/-0.03mm
Zinc Layer	A40,A60,G60,G90,G115,G140,G165. Z12,Z18,Z22,Z25,Z27,Z35. Z60,Z80,Z100,Z120,Z150,Z180,Z220,Z275,Z350
Width	600mm,750mm,762mm,914mm,1000mm,1219mm,1200mm,1250mm,1500mm
Length	1.5m,2.0m,2.438m,2.44m,2.5m,3m.,3.5m,4m,4.5m,5m

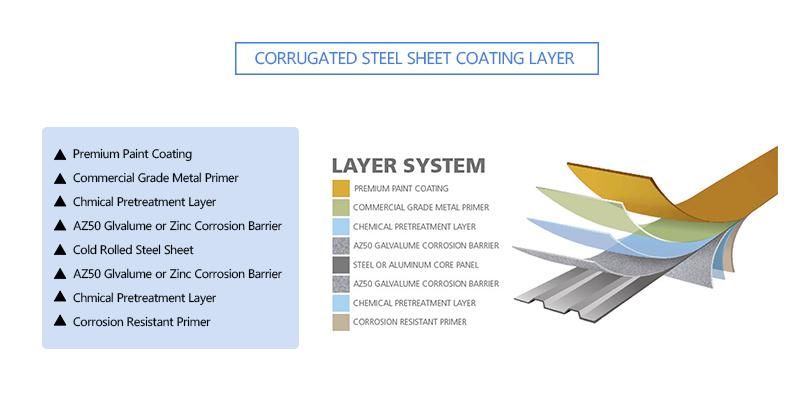

Surface Treatment	Chromated,oiled/unoiled,skin-passed,Chromated+oiled
Surface State	Regular spangle, mini spangle, zero spangle, skin-passed
Coil Weight	4-8tons
ID	508mm or 610mm
Package	Export standard seaworthy packing. Waterproof paper+steel sheet+bundle with steel strips(3-4pcs)
Delivery	Based on the quantity
Shipment	Bulk vessel or container (FCL/LCL)
Payment	T/T or LC at sight
Port of Loading	Main port of China, Shanghai, Qingdao, Dalian, Tianjin, etc.
Yield Strength	285Mpa-305Mpa
Tensile Strength	340Mpa-370Mpa
