Roll-Bonded Clad Plates
Guangzhou Kingmetal Steel Industry Co., Ltd.- Type:Steel Plate
- Standard:ASTM, AISI, GB, JIS, DIN, BS
- Certification:ISO, IBR
- Surface Treatment:Grinding

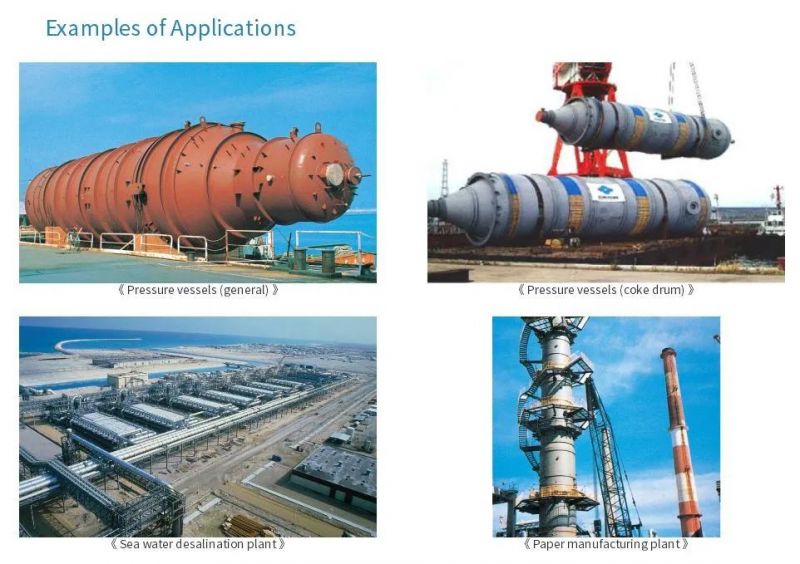

- Application:Mold & Dies, Container Plate, Pressure Vessel
- Special Use:Wear Resistant Steel
Base Info
- Model NO.:KM-2020-0430
- Stock:Not Stock
- Transport Package:Steel Pallet, Non Fumigation Pallets, Customized
- Specification:Width:4000mm Max, Length:16000mm Max,Thk:30mm,Max
- Trademark:KINGMETAL
- Origin:China
- HS Code:7326901900
- Production Capacity:3000 Tons Per Month
Description
Basic Info.
Model NO. KM-2020-0430 Stock Not Stock Transport Package Steel Pallet, Non Fumigation Pallets, Customized Specification Width:4000mm Max, Length:16000mm Max,Thk:30mm,Max Trademark KINGMETAL Origin China HS Code 7326901900 Production Capacity 3000 Tons Per MonthProduct Description
Roll-bonded clad plates
Clad plates consist of a base and a cladding material.
Base metals
JIS standards
G3101 Rolled steels for general structure (SS400)
G3106 Rolled steels for welded structure (SM400, 490)
G3103 Carbon Steel and Molybdenum Alloy Steel Plates
for Boilers and Other Pressure Vessels (SB410)
G3115 Steel plates for pressure vessels for intermediate
temperature service (SPV235, 315, 355)
G3118 Carbon steel plates for pressure vessels for intermediate
and moderate temperature service (SGV410, 450, 480)
G4109 Chromium-molybdenum alloy steel plates for boilers
and pressure vessels (SCMV2, 3, 4)
ASTM/ASEM standards
Structural carbon steel plate: A36, A283, SA-36, SA-283, etc.
Pressure vessel use carbon steel plate: A516, A285, SA-516, SA285
Pressure vessel use low-alloy steel plate: A387, SA-387, etc.
Other standards to which JFE currently produces steel plates, such as,
BS, JIS, ASTM, ASME, various ship classification society standards
and JFE specifications, are also applicable.
Cladding materials
Stainless steels
SUS410L,SUS430,SUS410S,SUS304,
SUS304L,SUS316,SUS316L,SUS317,
SUS317L,SUS321,SUS347
Nickel and nickel alloys
Titanium
Here you will find more information about delivery conditions and certifications for clad plates.
Available dimensions
Cladding material | Ferritic and austenitic stainless steel | Copper, nickel alloys |
Total thickness | 6-150 mm | 6-65 mm |
Cladding thickness | 1.5-10 mm | 1.5-10 mm |
Width | 3,800 mm max. | 3,800 mm max. |
Length | 15,000 max. (12,400 mm Q+T max.) | 15,000 max. (12,400 mm Q+T max.) |
Unit weight | 2-18 tons | 2-9 tons |
Surface area | 6 m² min. | 6 m² min. |

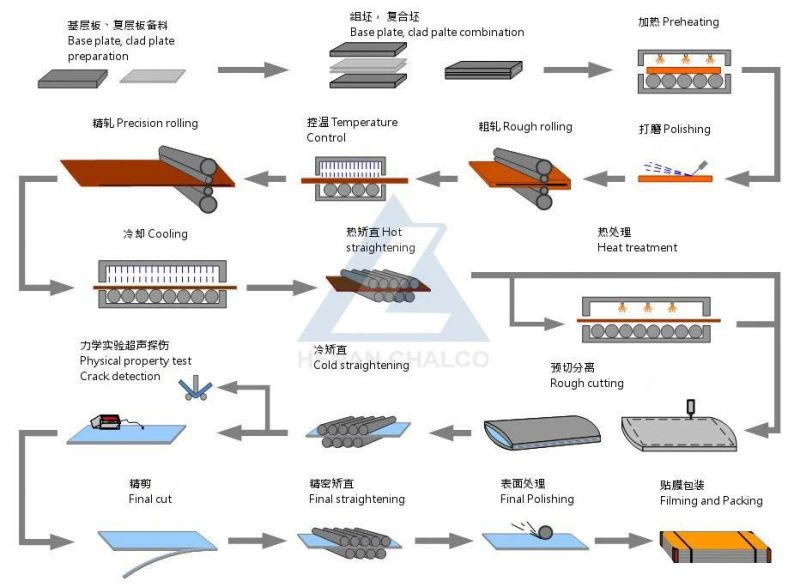

Roll bonded clad plates production process:
