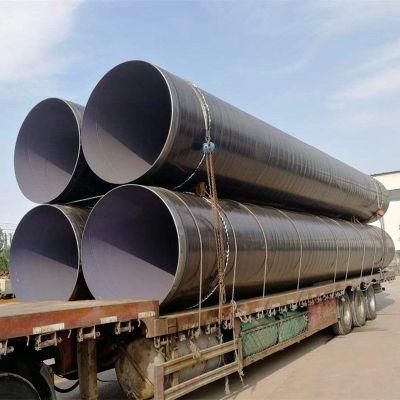

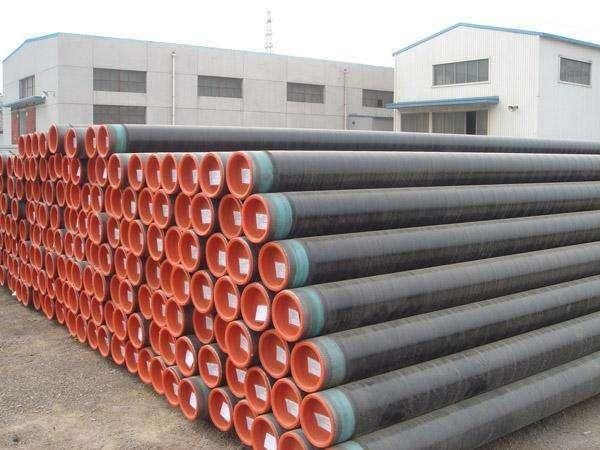

3PE Coated Lined Carbon Steel Pipe
Xiamen Qishine Imp.&Exp. Co., Ltd.- Type：Welded
- Technique：SAW
- Material：Carbon Steel
- Surface Treatment：3PE Coating
- Usage：Pipeline Transport, Boiler Pipe, Hydraulic,Automobile Pipe, Oil,Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decoration
- Section Shape：Round
Base Info
- Model NO.：P-12
- Thickness：Std
- Ends：Bevel Ends
- Standard：ANSI B36.10
- Coating Color：Black
- Package：Small Size in Bundle, Big Size Bulk.
- Transport Package：Protect with Ends Cap
- Specification：48" x 12 meter long
- Trademark：Qishine
- Origin：China
- HS Code：7304900000
Description
Packing:
Layer 2 Adhesive :170-250um
Layer 3 Polyethylene : 1.8-3.7mm
in bundles, in loose, Nylon Strip for each bundle for piece pipe
Lined Pipe
Some materials described above, have been combined to form lined pipe systems.
For example, a carbon steel pipe can be internally lined with material able to withstand chemical attack permits its use to carry corrosive fluids. Linings (Teflon, for example) can be applied after fabricating the piping, so it is possible to fabricate whole pipe spools before lining.
Other internal layers can be: glass, various plastics, concrete etc., also coatings, like Epoxy, Bituminous Asphalt, Zinc etc. can help to protect the inner pipe.
Many things are important in determining the right material. The most important of these are pressure, temperature, product type, dimensions, costs etc.

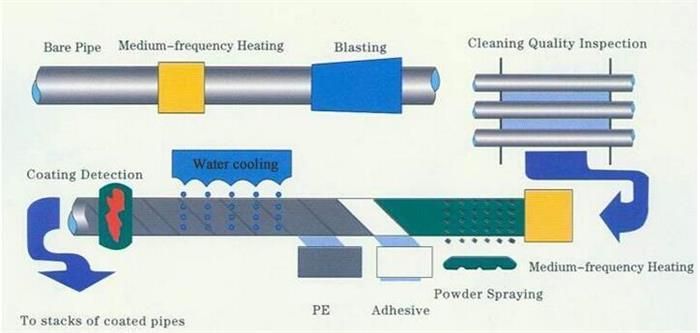

PE coating manufacturing process
