• Model NO.：0.5-4.5mm
• Transport Package：Coil with Plastic Cloth, Inside and Hessian Outsid
• Specification：0.5-4.5mm
• Trademark：yuxuan
• Origin：China
• Production Capacity：1000mt Per Week

Basic Info.

Model NO. 0.5-4.5mm Transport Package Coil with Plastic Cloth, Inside and Hessian Outsid Specification 0.5-4.5mm Trademark yuxuan Origin China Production Capacity 1000mt Per Week

Product Description

Description of goods:

Electro galvanized iron wire
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing, and other processes, electro galvanized iron wire has the characteristic of thick zinc coating, good corrosion, resistance,firm zinc coating,ect.it is mainly used in constructions, express way fencing, binding of flower and wire mesh weaving
Size range:BWG8-BWG22, we can also offer BWG8-BWG28
Material: Low carbon steel Q195
Production process:
Steel rod coil - Wire Drawing - Wire Annealing-Rust Removing- Acid Washing- Boiling- Drying- Zinc Feeding- Wire Coiling
Application: it's mainly used in construction, express way fencing, binding of flowers and wire mesh weaving and so on.
Feature: Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc
Zinc coat:10-25g/m2
tensile strength:350-550n/mm2
Elongation:10%

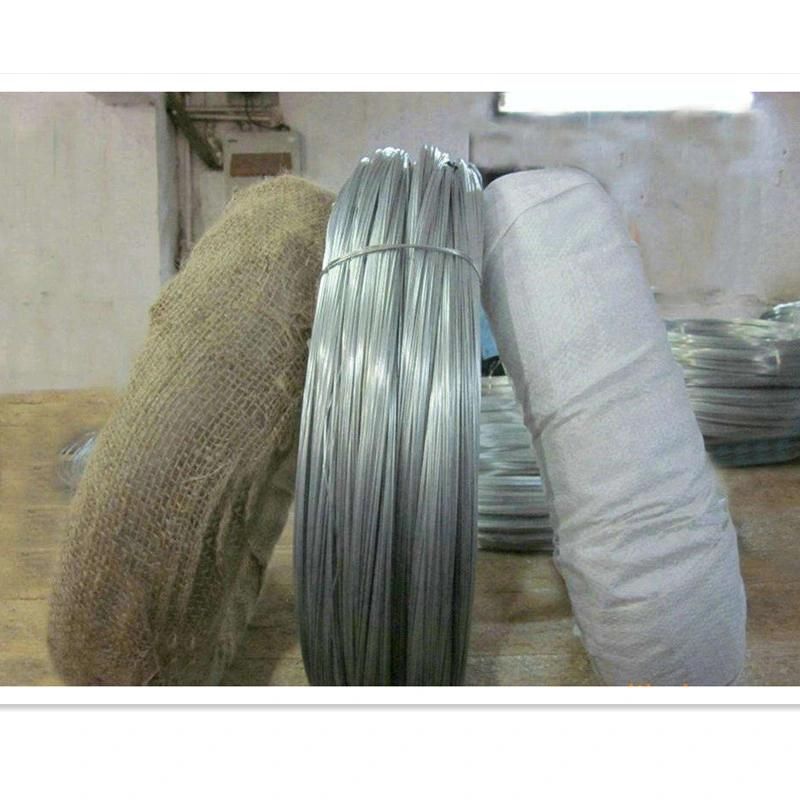

Packing:1-1000kgs/coil,coil with plastic film inside and hession cloth outside or weave cloth outside,
Quantity in one 20ft comtainer:25 tons generally
Production time for 25 tons, within 5 days,


Specificateion:
Gauge Reference of galvanized wire:


Gauge Standard	BWG (mm)	SWG (mm)	GB (mm)	AWG
8	4.19	4.06	3.99	3.26
9	3.76	3.66	3.55	2.90
10	3.40	3.25	3.18	2.59
11	3.05	2.95	2.83	2.30
12	2.77	2.64	2.52	2.05
13	2.41	2.34	2.24	1.83
14	2.11	2.03	1.99	1.63
15	1.83	1.83	1.78	1.45
16	1.65	1.63	1.59	1.29
17	1.47	1.42	1.41	1.15
18	1.24	1.22	1.26	1.02
19	1.07	1.02	1.12	0.91
20	0.89	0.92	1.00	0.81
21	0.81	0.81	0.89	0.72
22	0.71	0.71	0.79	0.64
23	0.64	0.61	0.71	0.57
24	0.56	0.56	0.63	0.51
25	0.51	0.51	0.56	0.45

Technical Parameters of galvanized wire:


Wire dia.	Low Tensile Strength(MPA)	HighTensile Strength(MPA)	Zinc coating	Elongation	Packing
0.2-0.5mm	300-500	800-1900	15-60g/m2	10%	5-14kg/spool
0.3-1.0mm	300-500	900-1900	20-120g/m2	10%	10-50kg/coil
0.5-1.6mm	300-500	1200-1900	30-180g/m2	10%	10-200kg/coil
1.3-7.0mm	300-500	1300-1900	30-300g/m2	10%	50kg-1000kg/coil

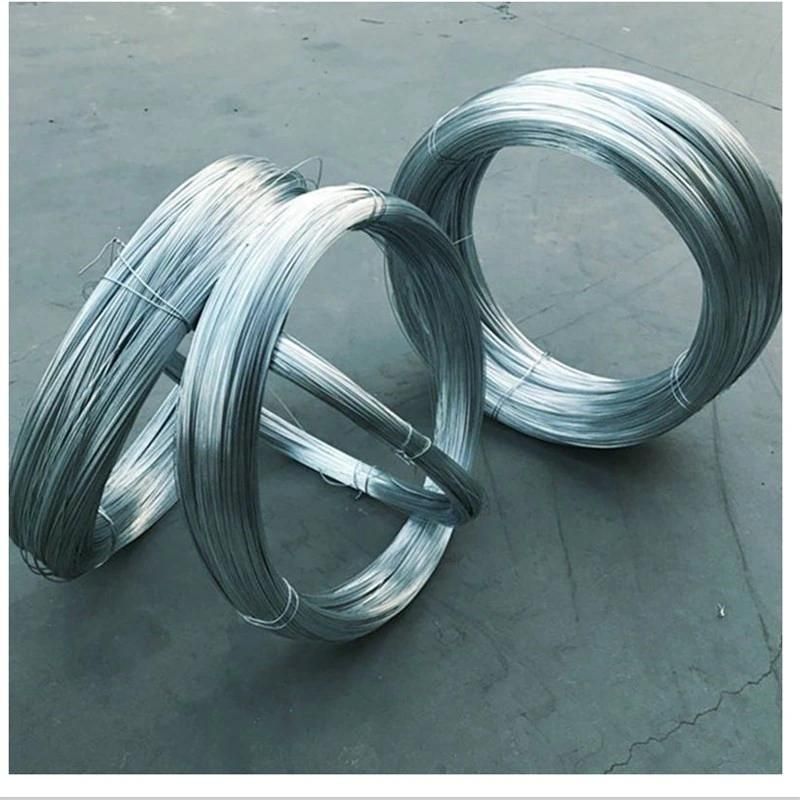

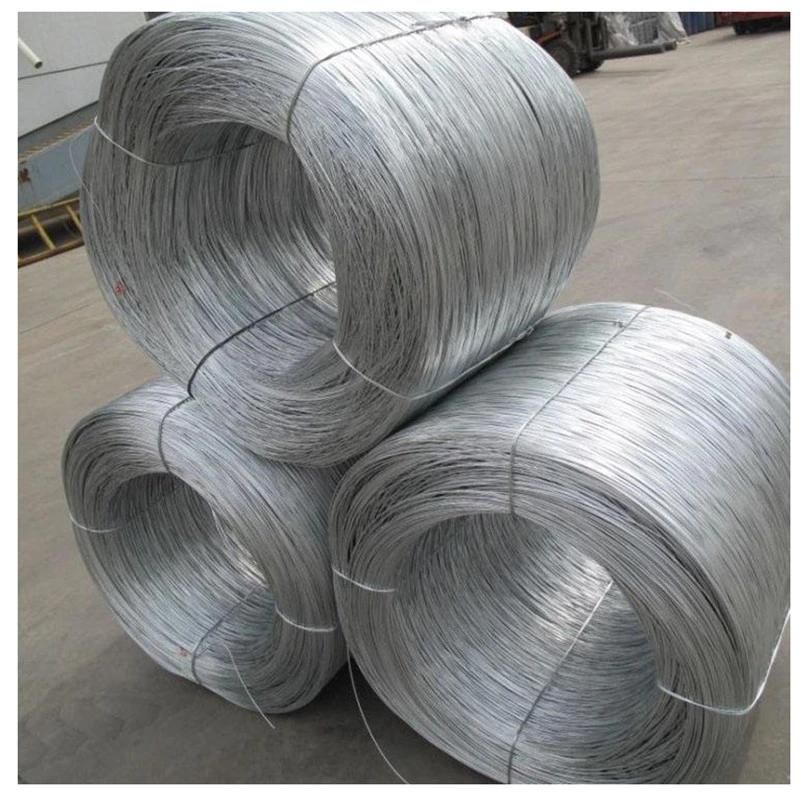

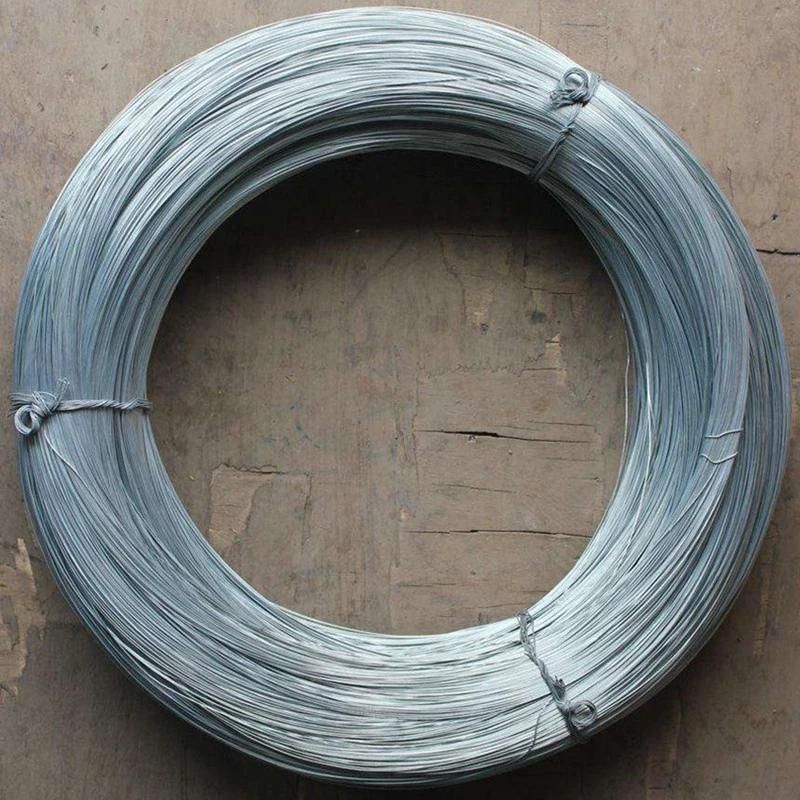

Products show:





Packing and shipping:



Company information:

TANGSHAN YUXUAN INTERNATIONAL TRADING CO.,LTD

are a steel enterprise focusing on both domestic and international trade and located in Fengrun district,Tangshan city-the largest scal manufacturing base of steel in 2014.
we mainly exported to Southeast Asia,Middle East Market,Africa such as South Korea,Thailand, Maanmar,Philippines, Iraq,Sri lanka,Indonesia,Jordan,Dubai,Saudi Arabia,Kuwait and Sudan,Etc.
On the basis of current product line,we also research and develop more high value-added products.Up to now,we have established long-term and Win-Win partnership with many large steel namufacturers.
