• Special Use：Cutting Tools, Measuring Tools, Cutters in Common Steel, High-strength Steel Plate, Wear Resistant Steel, Silicon Steel
• Stock：Stock
• Length：1219 1224 1500 5800 6000 12000
• Width：1500 2400 2000 1800
• Color：Iron Oxide Red Anti Corrosive Paint
• Hardness：300 360 400 450 500 550 600
• MOQ：1ton
• Delivery Time：7-15days

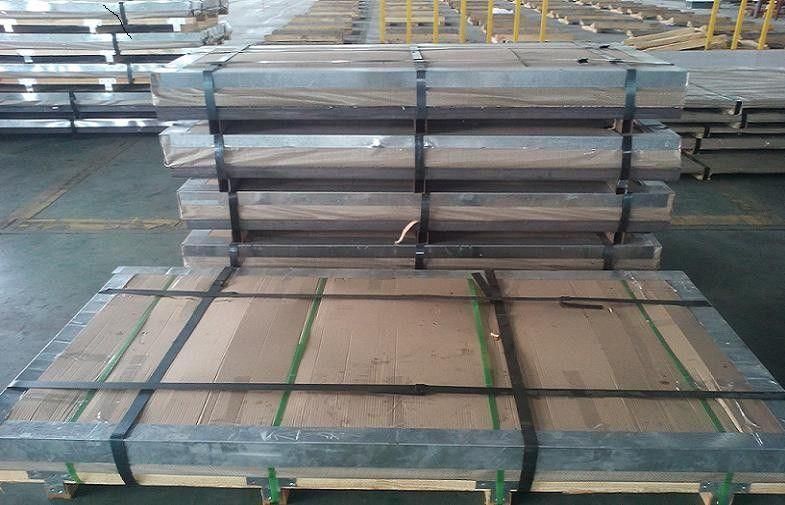

• Transport Package：Water Proof Package
• Specification：8 10 12 16 18 20 25 28 30 32
• Trademark：hengchengtai
• Origin：Wuxi, China (Mainland)
• HS Code：2200
• Production Capacity：50000ton Per Month



Tolerances
More details are given rochure 41-General product information Weld, Hard, Armox and Toolox-UK
AccuRollTech meets the requirements of EN 10 029 Class A, but o! ers narrower tolerances.
Length and width
According to Customer's dimensions program. Tolerances conforms with EN 10 029 or to  standard after agreement.
Shape tolerances according to EN 10 029
Flatness According to Hengchengtai flatness tolerances, which are more narrow than EN 10 029 Class N (steel type L).
Surface Properties
According to EN 10 163-2 Class A, Subclass 1.
Delivery Conditions
The delivery condition is Q+T (Quenched and Tempered). The plates are delivered with sheared or thermally cut edges. Untrimmed edges after agreement. Delivery requirements can be found in  brochure 41-General product information Weld,Hard, Armox and Toolox-UK.
Fabrication and Other Recommendations Welding, bending and machining
Weld 700 has obtained its mechanical properties by quenching and subsequent tempering. The properties of the delivery condition cannot be retained after exposure to temperatures in excess of 580ºC.
Appropriate health and safety precautions must be taken when welding, cutting, grinding or otherwise working on this product.
Grinding, especially of primer coated plates, may produce dust with a high particle concentration.

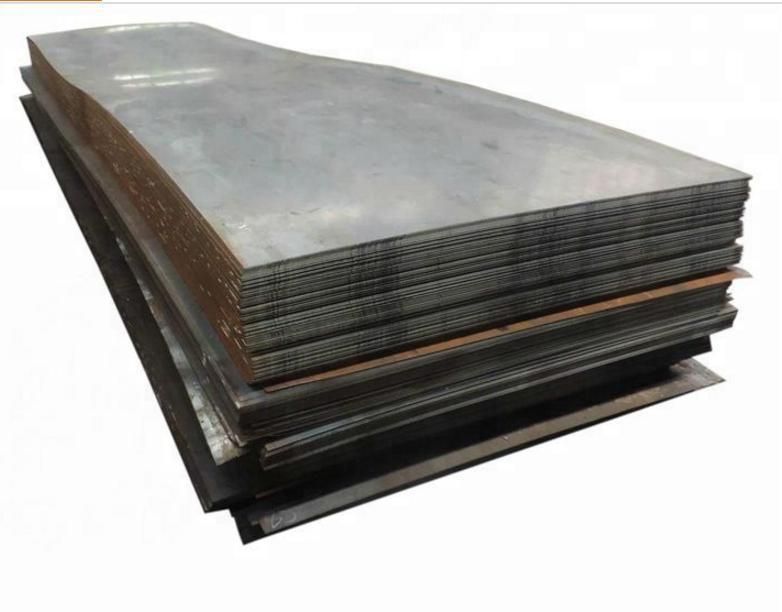

we are Manufacturer, Supplier & Exporter of Weld 700 Steel Plate. With years of experience in manufacturing weld 700 steel plate we offer high quality, lower cost but the best service. Weld 700 is a general structural steel with a minimum yield strength of 700 MPa. Weld 700 meets the requirements for the corresponding steel grades and qualities according to EN 10025. Weld 700 Plates can be customized as per the client's requirements at affordable price. We can provide Weld 700 plate that's suitable for all these applications and more.

In addition, we can also perform flame cutting if necessary, as well as a wide range of other post-cutting services, including stress relieving, bending, drilling, and wash grinding.Weld 700 E is available in plate thicknesses of 4 - 160 mm and Weld 700 F is available in plate thicknesses of 4 - 130 mm. Both grades are available in widths up to 3350 mm and lengths up to 14630 mm. For thicknesses over 100 mm preferred width is 1650 mm with untrimmed edge. We Export to Saudi Arabia, Kuwait, Qatar, Oman, Yemen, UAE, Iran, Turkey, Japan, Australia, UAE, France, Azerbaijan, Ghana, Germany, Indonesia & Bahrain, Kazakhstan, Greece, Singapore, Thailand, Indonesia.

Chemical Composition

C *) Max %Si *) Max %Mn *) Max %P Max %S Max %Cr *) Max %Cu *) Max %Ni *) Max %Mo *) Max %B *) Max %0.200.601.600.0200.0100.700.302.00.700.005

Mechanical Properties

Thickness mmYield strength 1) Rp 0.2, min MPaTensile strength 1) Rm MPaElongation A5 min %Typical hardness HBW4 - 53700780 - 93014260 - 310(53) - 100650780 - 93014260 - 310(100) - 160650710 - 90014240 - 290
