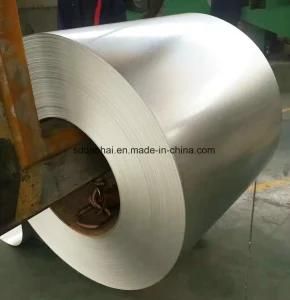

- Model NO.:PPGI,PPGI steel coil
- Stock:Stock
- Primer Coating:8-30,5-30um
- Thickness:0.13-2.5mm
- Width:600-1500mm
- Surface:PE Coated
- Coil ID:508,610mm
- Color:Ral Color
- Delivery Time:7-15 Days
- Zinc Coating:30-275G,M2
- Transport Package:Export Standard Package for PPGI
- Specification:As required
- Trademark:Hanhuang
- Origin:Jiangsu
- Production Capacity:5000ton,Month
Container size20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) | 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) |
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) |
This is the mechanical properties of the substrate(galvalume steel)Grade | tensile strength MPa | Elongation after breakingc A 80mm % not less than |
DX51D+Z | 270~ 500 | 22 |
Mechanical properties of PPGL(pre-painted galvalume) steel coil substrateGrade | Yield Strength MPa | tensile strength MPa | Elongation after breaking A 80mm % not less than |
DC51D+AZ | - | 270~ 500 | 22 |
DC52D+AZ | 140-300 | 270 ~ 420 | 26 |
DC53D+AZ | 140-260 | 270~380 | 30 |
DC54D+AZ | 120-220 | 260~350 | 36 |
Please note that DX51D is only suitable for cold roll forming processing, if deep drawing processing, the PPGL sheet will break
