• Usage：Boiler Pipe
• Section Shape：Oval
• Transport Package：in Wooden Case or Bundles
• Specification：19-350mm
• Trademark：KINGMETAL
• Origin：China
• HS Code：73045990
• Production Capacity：2000ton,Month

StandardGradeChemical Components (%)CSiMnPSMoCrDIN17175St 35.8≤0.170.10-0.350.40-0.80≤0.040≤0.040//St 45.8≤0.170.10-0.350.40-0.80≤0.040≤0.040//15Mo30.12-0.200.10-0.350.40-0.80≤0.035≤0.0350.25-0.35/13CrMo440.10-0.180.10-0.350.40-0.70≤0.035≤0.0350.45-0.650.70-1.1010CrMo9100.08-0.15≤0.500.40-0.70≤0.035≤0.0350.90-1.202.0-2.50

StandardGradeMechanical propertiesTensile Strength (Mpa)Yield Strength (Mpa)Elongation (%)DIN17175St 35.8360-480≥235≥25St 45.8410-530≥255≥2115Mo3450-600≥270≥2213CrMo44440-580≥290≥2210CrMo910450-600≥280≥20

Size: 19mm-350mm

W.T.: 1.5mm-50mm

Shape: Round

Production Type: Cold drawn or Hot rolled

Length: Single random length/ Double random length or as customer's actual request max length is 10m

Grade: ST35.8, ST45.8, 15Mo3, 13CrMo44, 10CrMo910

Testing

• Tensile test
• Notch impact/bending test
• Ring test
• Non-destructive test
• Visual inspection of tube surface
• Gauging
• Leakage test
• Grade identification test
• Hot tensile test

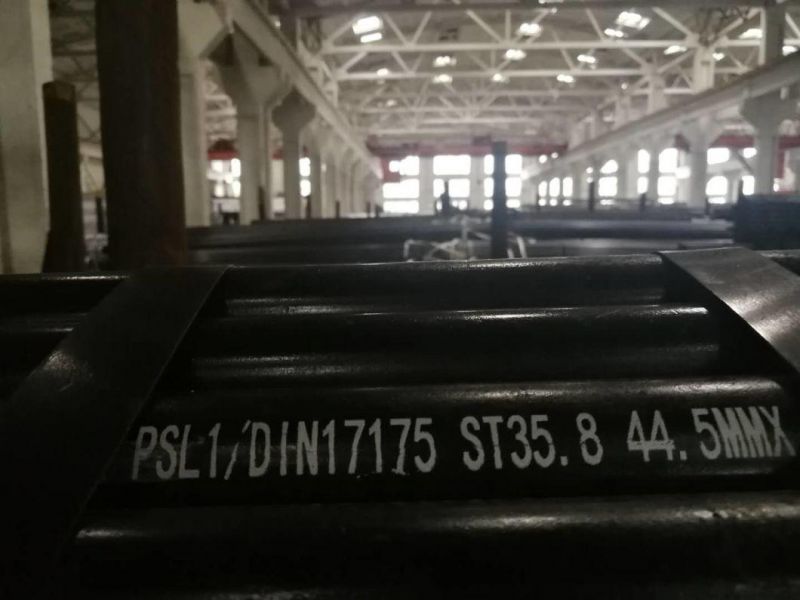

Marking

• the manufacturer's name or trade mark;
• the specified dimensions;
• the number of this European Standard;
• the steel name or number;
• the cast number;
• the delivery condition;
• Others information by customer's

Note:

• Mill test certificates will be issued according to EN10204.3
• The tubes Shall be Seamless cold drawn or hot rolled.

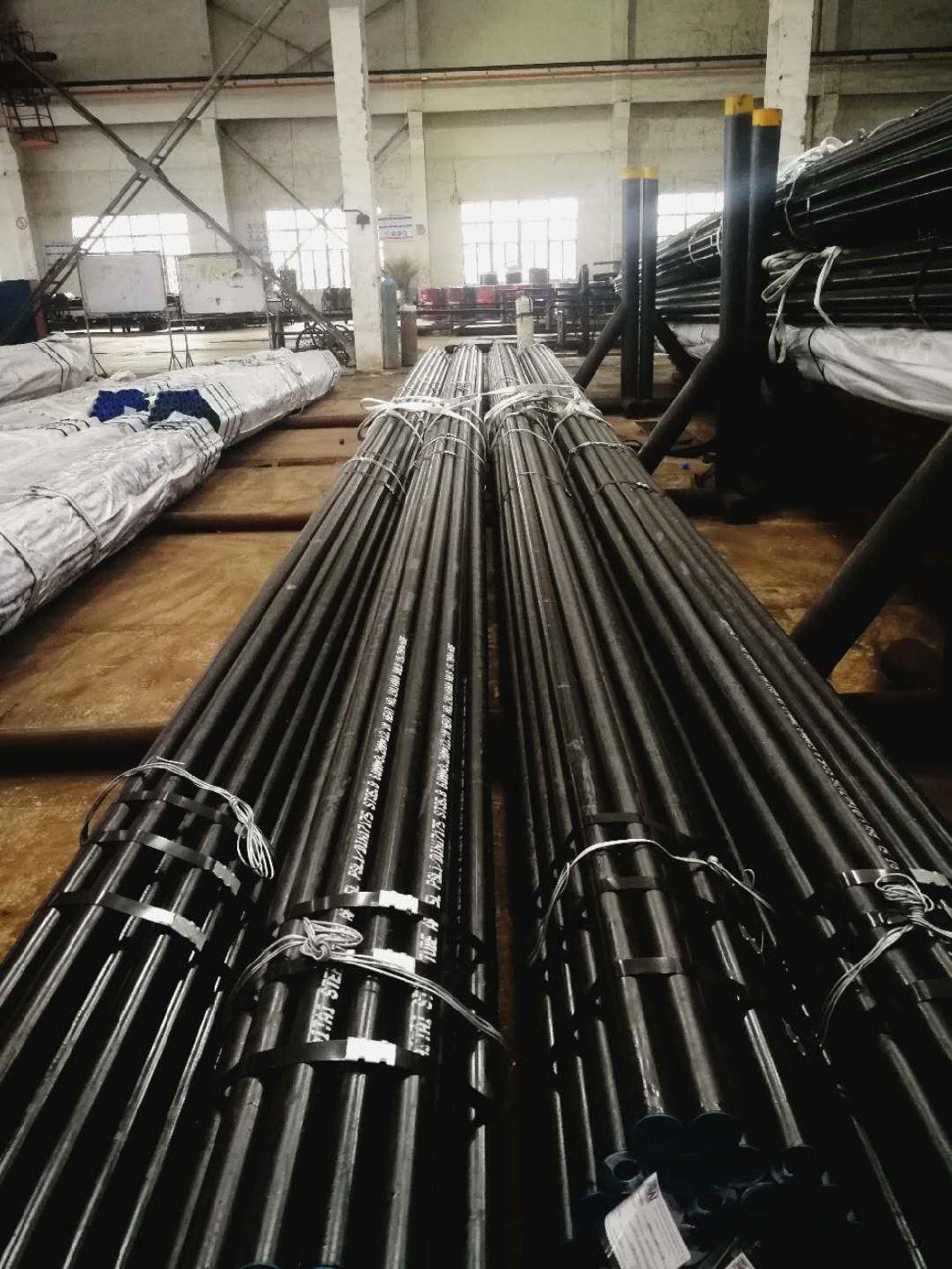

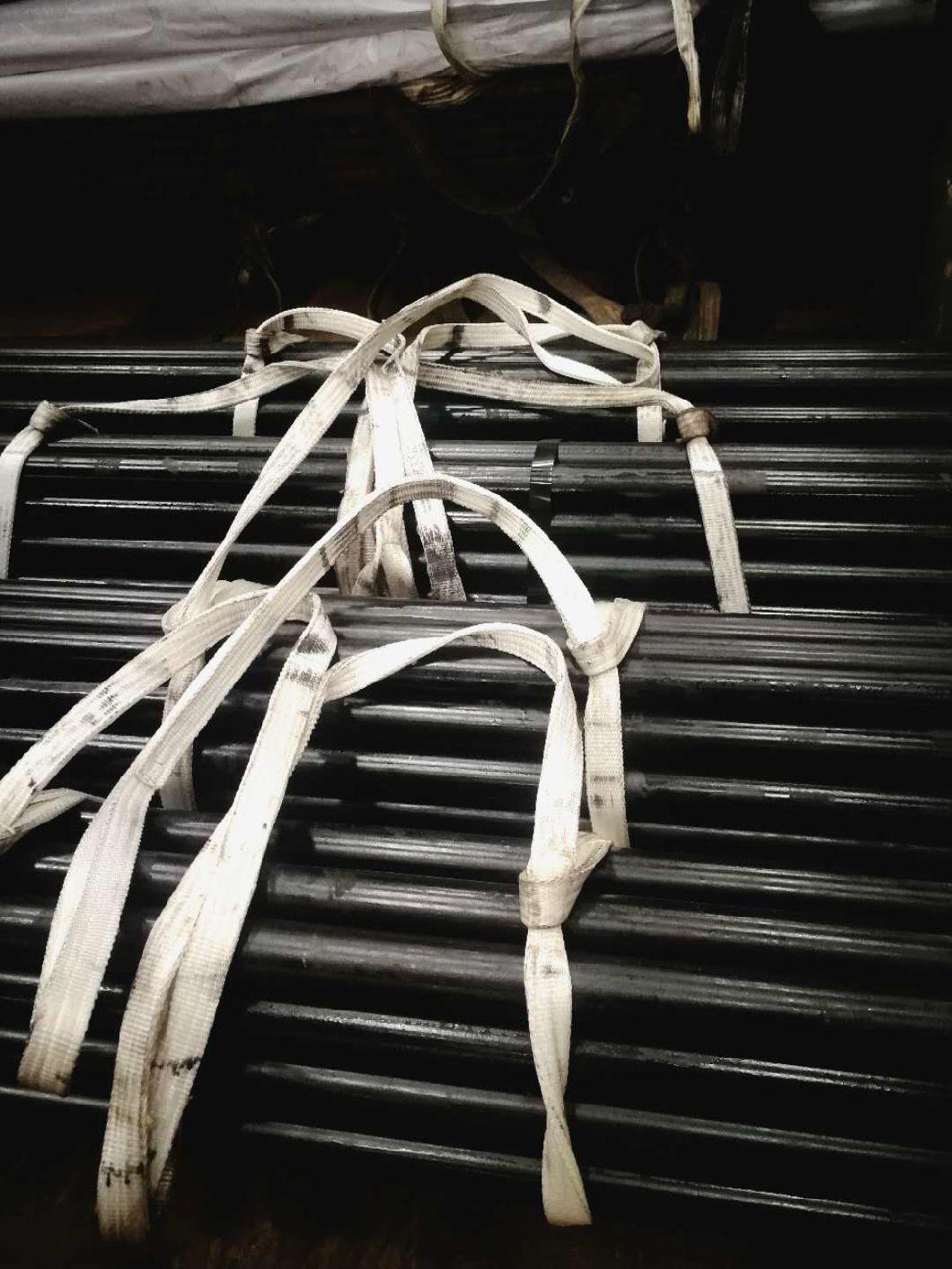

Protection and Packing:

• Packed in wooden box or bundles protected with plastic paper, and suitably protected for sea-worthily delivery or as requested.
• The tubes shall be delivered with a temporary corrosion protection. The type of protection shall be at the discretion of the manufacturer

Application:

For high middle, low pressure boiler and pressure purpose

Surface treatment:

Antirust oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
