• Model NO.：EL-AP
• Thickness：1mm-80mm
• Length：1-12m
• Delivery Time：15-30 Days After Down Payment
• Alloy or Not：Alloy
• Secondary or Not：Non Secondary
• Standard or Not：Standard
• Price Term：Fob,CIF,CNF
• Payment：L,C,T,T

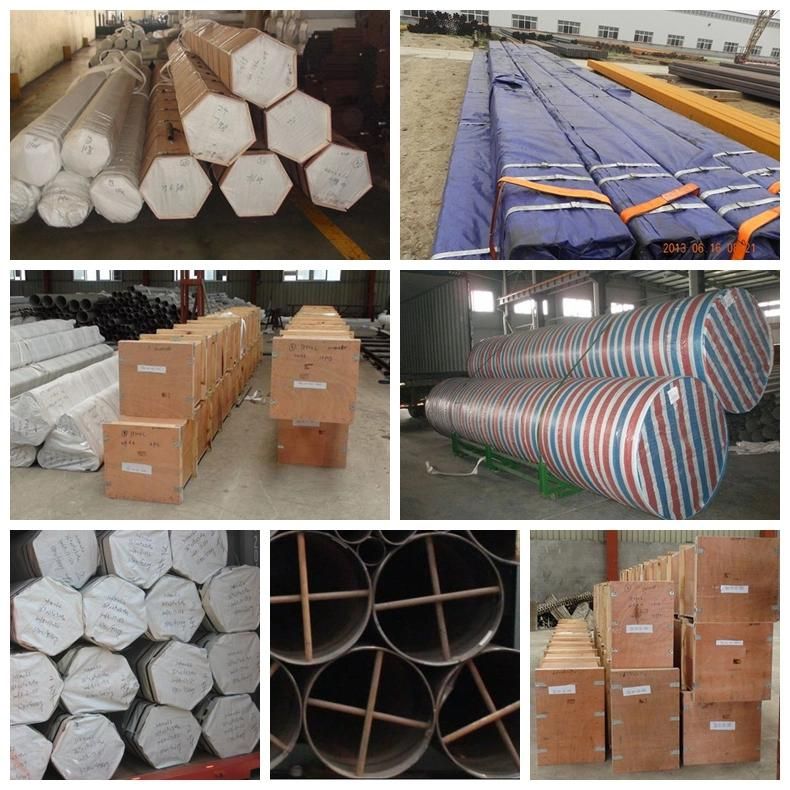

• Transport Package：in Bundle or Wooden Case Can Discuss
• Specification：6mm-760mm
• Trademark：Kingmetal
• Origin：China (Mainland)
• HS Code：73045110
• Production Capacity：10000 Ton,Tons , Month

Basic Info.

Model NO. EL-AP Thickness 1mm-80mm Length 1-12m Delivery Time 15-30 Days After Down Payment Alloy or Not Alloy Secondary or Not Non Secondary Standard or Not Standard Price Term Fob,CIF,CNF Payment L/C,T/T Transport Package in Bundle or Wooden Case Can Discuss Specification 6mm-760mm Trademark Kingmetal Origin China (Mainland) HS Code 73045110 Production Capacity 10000 Ton/Tons / Month

Product Description

Standard: ASTM SA213, SA335, A369, A209, A250; JIS G3462, JIS G3467, DIN17175, BS3059-2, GB/T8162, GB/T6479, GB/T9948, GB5310, etc.

Material:
GB/T: Cr5Mo, 15CrMo, 12Cr1MoV P11/22 T91, P91, P9, T9, Wb36, 42CrMo4/4140/SCM 440

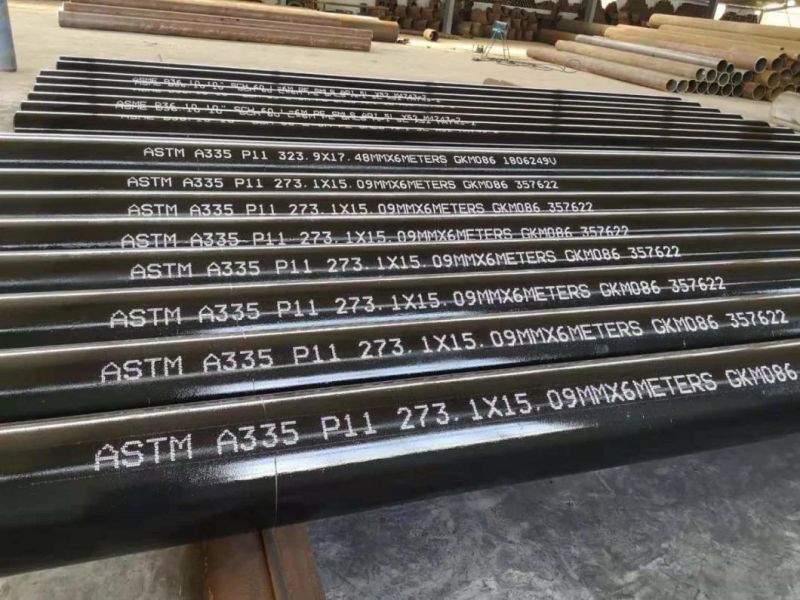

ASTM: A-335/A199 Gr. P1 /P5 /P9 / P11 /P12 / P22 / P91, A213T5, T11, T12, T22, P5, P9, P22, P9(SEAMLESS)
A691- 1 1/4CR, 2 1/4CR, 5CR, 9CR etc(WELDED)
DIN: 15Mo3 / 13CrMo44 / 10CrMo910(SEAMLESS)
JIS: STPA12/STPA25/STPA22/STPA24( SEAMLESS)

Application: Petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant alloy pipe used. Our company has cooperative relation between the domestic agents. Alloy pipe can be made according to the customers requirements.
Contacts If you have any questions, please feel free to contact me.



Grade	C	Si	Mn	P	S	Cr	Mo
P5	Max.0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	4-6	0.45-0.65
P11	0.05-0.15	0.5-1.0	0.3-0.6	Max.0.025	Max.0.025	1.0-1.5	0.44-0.65
P12	0.05-0.15	Max.0.50	0.3-0.61	Max.0.025	Max.0.025	0.8-1.25	0.44-0.65
P22	0.05-0.15	Max.0.50	0.3-0.6	Max.0.025	Max.0.025	1.9-2.6	0.87-1.13

Mechanical properties

Grade	Yield point (Mpa)	Tensile strength (Mpa)	Elongation(%)	Impact value(J)
P5	≥205	≥415	See table	≥35
P11	≥205	≥415	See table	≥35
P12	≥220	≥415	See table	≥35
P22	≥205	≥415	See table	≥35
