• Model NO.：inconel 686
• Special Use：Free Cutting Steel
• Product Name：Nickel Alloy Inconel 625 Pipe
• Delivery Condition：Hot Rolled, Forged, Annealed
• Delivery Term：Fob, CIF, CFR, Exwork, etc
• Shipping：by Sea, Air
• Thickness：1-60mm
• Outer Diameter：6-760 mm
• Payment Term：T,T, L,C
• Section Shape：Round
• Length：6m, 12m or Customized
• Model Number：Inconel 625
• Spec：Standard
• Quality：Quality
• Delivery：Delivery
• Usage：Usage
• Quantity：Quantity
• Transport Package：Seaworthy Packing
• Specification：Dia. 28mm, Thickness: 4-30mm
• Trademark：BOZHONG or customized
• Origin：China
• HS Code：7211190000
• Production Capacity：5000 Tons,Month

Basic Info.

Model NO. inconel 686 Special Use Free Cutting Steel Product Name Nickel Alloy Inconel 625 Pipe Delivery Condition Hot Rolled, Forged, Annealed Delivery Term Fob, CIF, CFR, Exwork, etc Shipping by Sea, Air Thickness 1-60mm Outer Diameter 6-760 mm Payment Term T/T, L/C Section Shape Round Length 6m, 12m or Customized Model Number Inconel 625 Spec Standard Quality Quality Delivery Delivery Usage Usage Quantity Quantity Transport Package Seaworthy Packing Specification Dia. 28mm, Thickness: 4-30mm Trademark BOZHONG or customized Origin China HS Code 7211190000 Production Capacity 5000 Tons/Month

Product Description

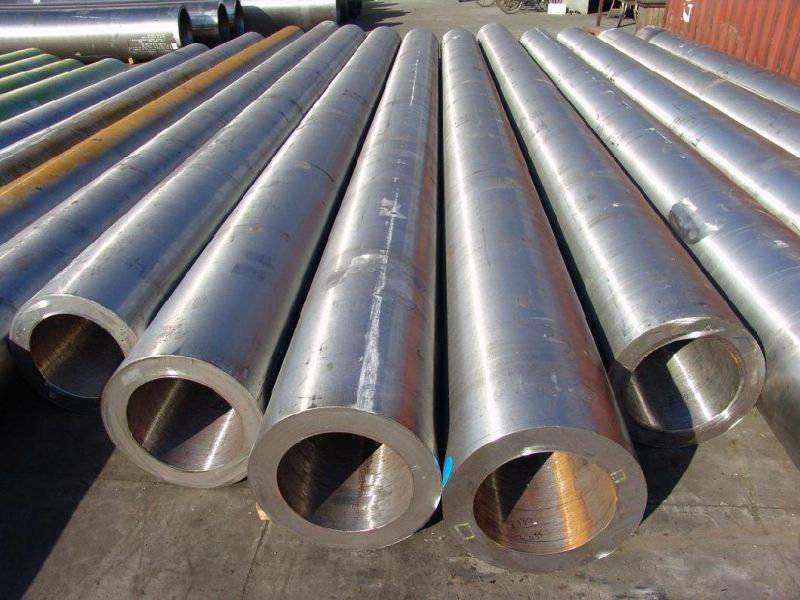

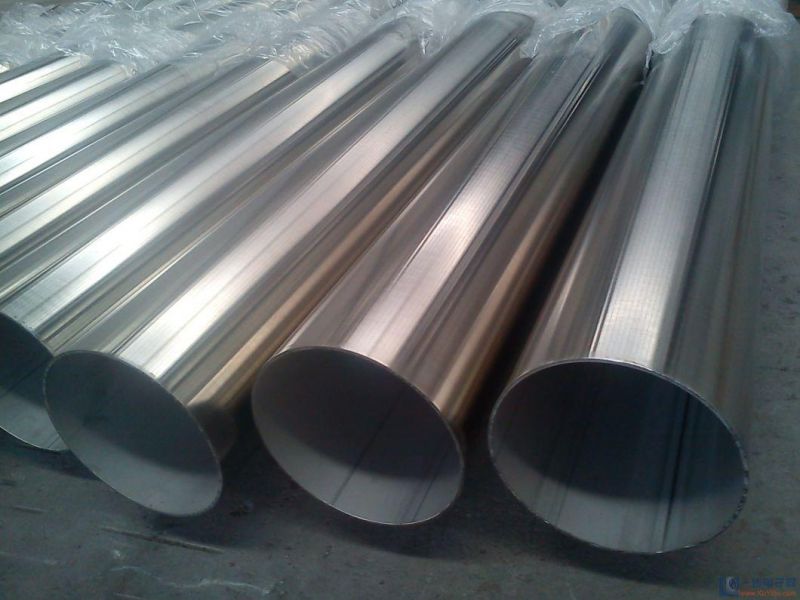

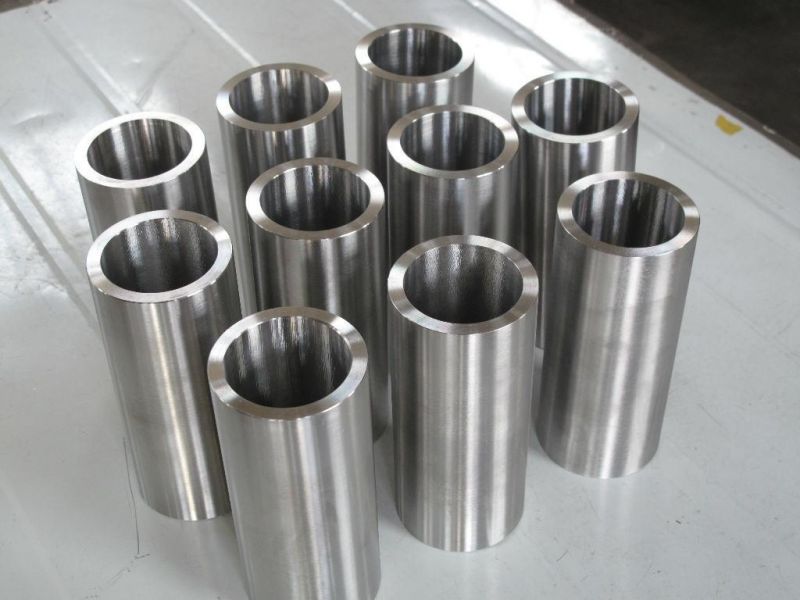

Shanghai Nickel Alloy inconel 686 Pipe


1.Product Description

Introduction
Super alloys or high performance alloys have the capacity to function under very high temperatures and severe mechanical stress, and also where high surface stability is required. They have good creep and oxidation resistance, and can be produced in a variety of shapes.

Strengthening of super alloys is performed by solid-solution hardening, work hardening, and precipitation hardening. Super alloys contain a number of elements in a variety of combinations to achieve the desired result.

Inconel 686™ is a single phase Ni-Cr-Mo-W alloy that is primarily used in extremely corrosive applications, e.g. flue gas desulfurization systems and processing plants in which mixed acids are used. This alloy is also used in fields where localized pitting is difficult.

The following datasheet will provide more details about Inconel 686™.

Chemical Composition
The following table shows the chemical composition of Inconel 686™.

Element    Content (%)
Nickel, Ni    59
Chromium, Cr    19-23
Molybdenum, Mo    15-17
Iron, Fe    ≤ 5
Tungsten, W    3.0-4.40
Manganese, Mn    ≤ 0.75
Phosphorous, P    ≤ 0.040
Sulfur, S    ≤ 0.020
Titanium, Ti    0.020-0.25
Carbon, C    ≤ 0.010
Physical Properties
The physical properties of Inconel 686™ are outlined in the following table.

Properties    Metric    Imperial
Density    8.72 g/cm³    0.315 lb/in³
Melting point    1338-1380 °C    2440-2520 °F
Mechanical Properties
The mechanical properties of Inconel 686™ are provided below.

Properties    Metric    Imperial
Tensile strength    721.9 MPa    104700 psi
Yield strength (@strain 0.200%)    364 MPa    52800 psi
Elastic modulus    207 GPa    30000 ksi
Shear modulus    77 GPa    11200 ksi
Poisson's ratio    0.34    0.34
Elongation at break    71%    71%
Thermal Properties
The thermal properties of Inconel 686™ are given below.

Properties    Metric    Imperial
Thermal expansion co-efficient (@21-100°C/69.8-212°F)    11.97 µm/m°C    6.650 µin/in°F




2. Our Service For You
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles  for your choices.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produce by our professional workman and we have our high-work-effect foreign trade team, you

can totally believe our service.
6. We have 8 year experience of design, manufacture and sell lingerie, we cherish every order from our honor.
 After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale choose
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.






3.FAQ
Q: What's your minimum order quantity?
A: Our minimun quantity is 500 Kg. We also can offer you samples.
Q: What's your delivery time?
A: Our normal delivery time is 7-20 days, and it depends on your quantity and items. Of course, if you need products

urgently, we also will consider arranging it firstly.
Q: What's the price of your product?
A: Our prices are based on the material grade, size, quantity and physical performance etc. So if you can offer us the detailed information, then we can give you the best reasonable price. Also, we can do special size and color for



customers.
Q: What's your after-sales service?
A: We have two ways to handle claims by replacement and deduction. Of course, if the materialis not good used by wrong

parameter from customer, we won't be responsible.
Q: Why do you think I will want to buy from you?
A: We have advantages with 22 years of professional experienc
es in manufacturing & designing, advanced technology & the

first-class equipment, perfect logistics management, high-quality after-sales service and competitive price.




4. Contact us
Name: Susan huang
