• Model NO.：9120
• Transport Package：Wooden Box
• Specification：9120
• Trademark：YONG YANG
• Origin：China
• HS Code：730240
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. 9120 Transport Package Wooden Box Specification 9120 Trademark YONG YANG Origin China HS Code 730240 Production Capacity 1000PCS/Day

Product Description

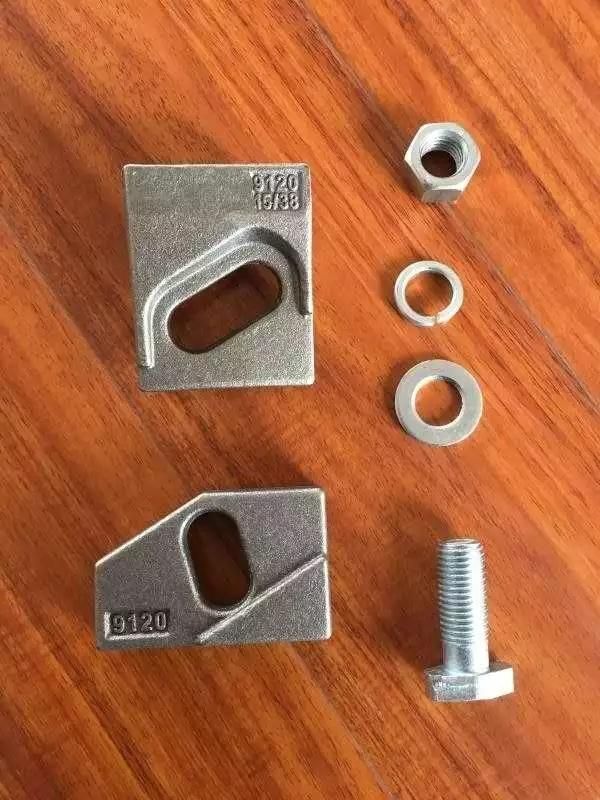

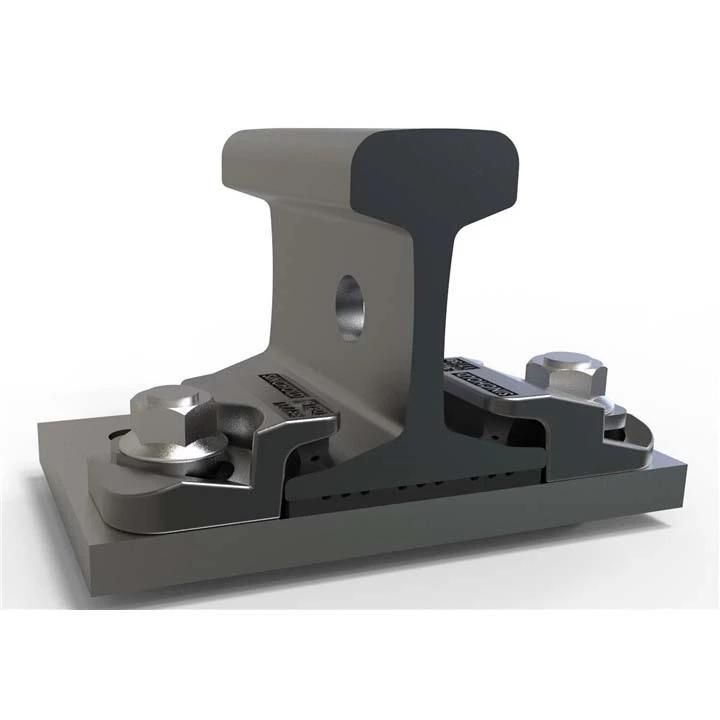

9120/15/38 crane rail pressure plate is a single bolt, flexible self-locking pressure plate assembly, hot plated material Q235 or Q345 steel forging, bolts are M20 8.8 grade high strength bolts, pressure plate can withstand the horizontal horizontal force of the rail 120KN (12.2 tons), the track level can be adjusted to a distance of 15mm. The pressure plate is widely used in the dock track with large tonnage lifting capacity, and is also widely used in steel structure workshop beams.
The 9120/15/38 is used with a rubber backing plate to provide better cushioning and longer operating life of the track system.
