• Model NO.：SAE 1008 1010 1018 1020 1045
• Special Use：Mold Steel, Free Cutting Steel, Cold Heading Steel
• Commodity：Cold Drawn Steel Round Bar
• Grade：SAE 1008 1010 1018 1020 1045
• MOQ：2tons
• Surface of Cold Drawn Steel Bar：Bright
• Straightness of Cold Drawn Steel Bar：Max 0.8mm,M
• Cold Drawn Steel Bar Shapes：Round, Square, Hexagonal
• Transport Package：Anti-Rust Packing
• Specification：M5-M100
• Origin：China
• Production Capacity：3000tons,Month

Basic Info.

Model NO. SAE 1008 1010 1018 1020 1045 Special Use Mold Steel, Free Cutting Steel, Cold Heading Steel Commodity Cold Drawn Steel Round Bar Grade SAE 1008 1010 1018 1020 1045 MOQ 2tons Surface of Cold Drawn Steel Bar Bright Straightness of Cold Drawn Steel Bar Max 0.8mm/M Cold Drawn Steel Bar Shapes Round, Square, Hexagonal Transport Package Anti-Rust Packing Specification M5-M100 Origin China Production Capacity 3000tons/Month

Product Description

SAE 1008 1010 1018 1020 1045 S20C S45C SCM440 4140 B7 Cold Drawn Round Steel Bars

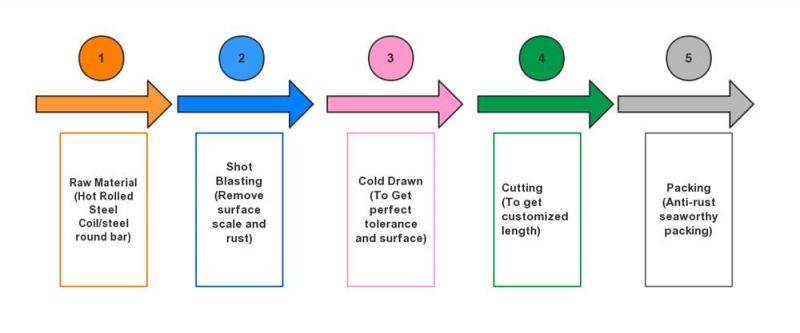

1.Cold Drawn Steel Bar Processing:  EAF + LF + VD + CONCASTING BILLETS + HOT ROLLED + SHOT BLASTING +(ANNEALING) + COLD DRAWN + OILING + BUNDLING + BOTH ENDS CUTTING+ PACKING + MARKING
All bars are cleaned by shot blasting before drawing, then pulled through a carbide die, straightened, saw cut to length, oiled, and shipped.  Cold drawing results in a product with higher tensile and yield strength, smoother surface finish, and a closer size tolerance.



2.Capabilities of our fatcory

Shapes	Sizes	Processing

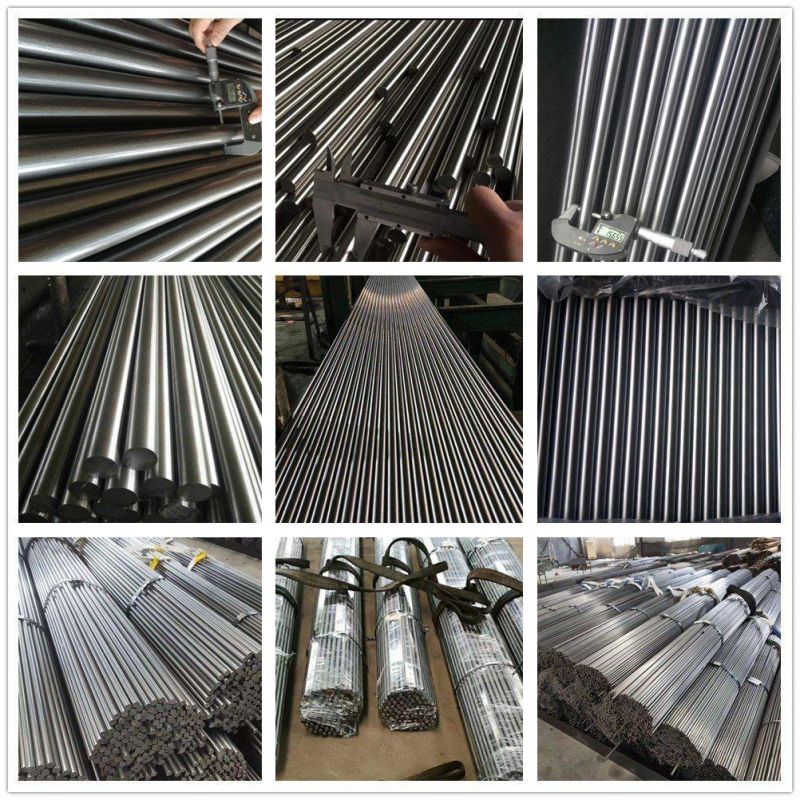

Steel Round Bar	5mm to 63.5mm	Cold Drawn
Steel Round Bar	63.5mm-120mm	smooth-turned and polished.

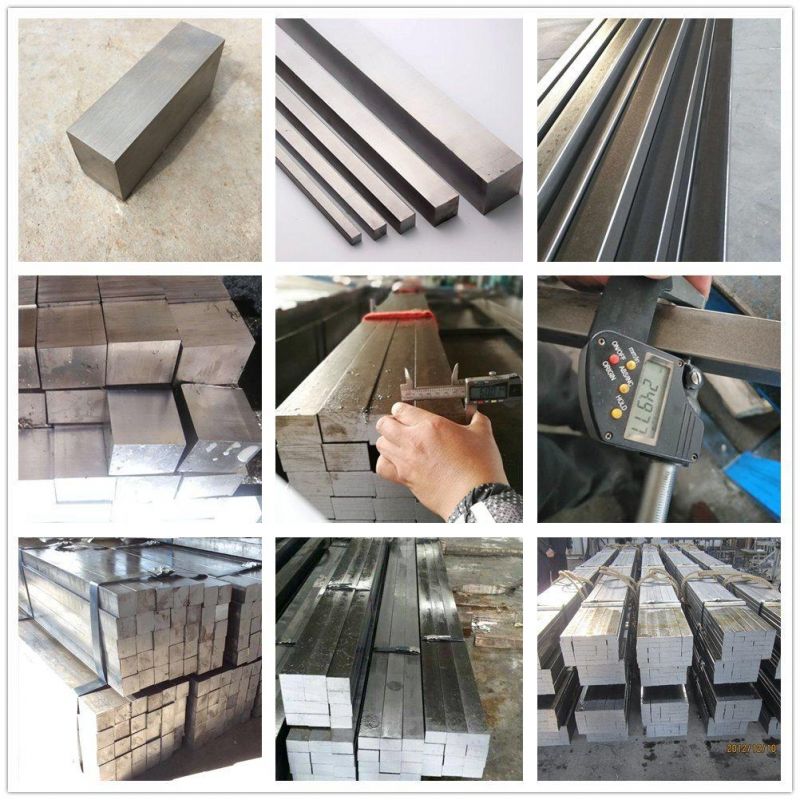

cold drawn steel square bar	5*5mm to 120*120mm	Cold Drawn

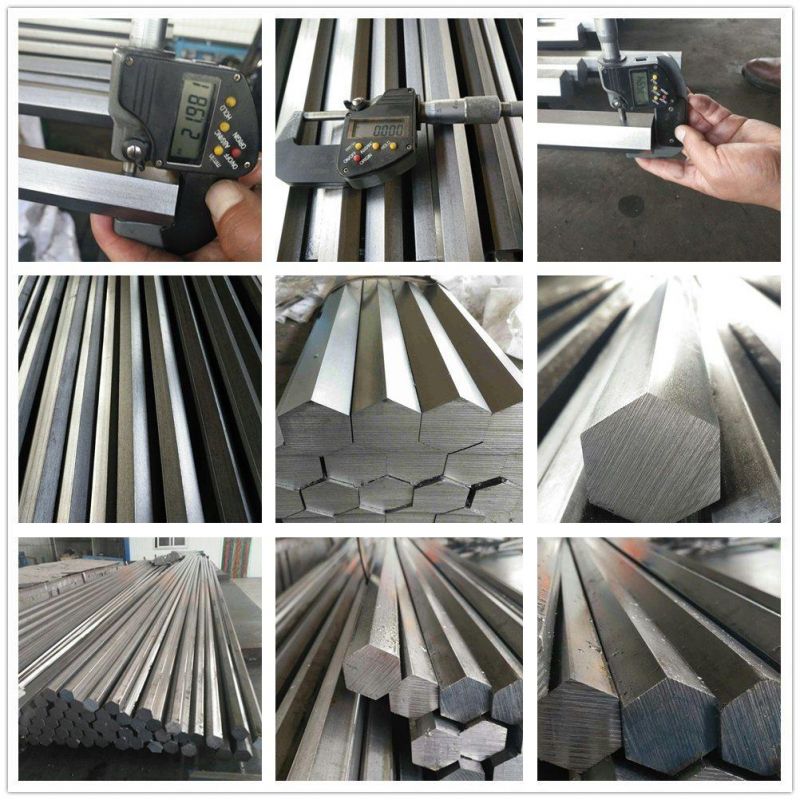

cold drawn steel hex bar	5mm to 120mm	Cold Drawn
cold drawn steel hexagonal bar	5mm to 120mm(side to side)	Cold Drawn

3.Application: hardware tools, auto parts, standard parts, fasteners common shaft, machinery manufacturing, light industry, hardware, bicycles, cars, motorcycles, textile machinery, transformers and other machinery industry

4.Our mian grades:

Type	JIS	AISI	Application
Carbon	S10C, S20C, S25C, S35C, S45C, S48C, CH25K, CH25KS,  CH35KS, CH38K, CH45K, CH45KS	1010, 1018, 1020, 1045, 1050	Oil Pressure Shaft/Automotive Parts
Allay Steel	SMn443, SCr420, SCr440, SCM415, SCM420, SCM435,  SCM440, SNCM220, SNCM420	1541, 5120, 5140, 4115, 4120, 4135,  4140, 8620, 4320	CV JOINT, Differential Gear
Free cutting Steel	SUM21, SUM22, SUM23, SUM43, SUM24L, SUM24EZ	1213, 1141, 1144, 12L14	CNC Machine

5.Quality control:

We company have good QC inspection tear and full set of inspect equipment including: UT test machine, Tensile testing machine,Hardness testing machine,Dimensional measuring instrument,f,spectrometer,Metallographic microscope and so on, so that we can always supply good mateterials for various projects and industries , if you have any need for our producrs,please contact us freely.


6.Tolerances and Properties

	Hot Rolled	Cold Drawn	Turned & Polished	Turned, Ground & Polished	Drawn, Ground & Polished
Diameter	+/- 0.008"	+/- 0.001"	+/- 0.001"	+/- 0.0002"	+/- 0.0002"
Straightness	0.050" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot	0.005" Max Per Foot
Yield Strength	Comparison Standard	Up to 80% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 80% Over Hot-Rolled
Tensile Strength	Comparison Standard	Up to 40% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 40% Over Hot-Rolled
Machinability	Comparison Standard	Up to 25% Over Hot-Rolled	Same as Hot-Rolled	Same as Hot-Rolled	Up to 25% Over Hot-Rolled
Surface Finish	Rough Iron Oxide	30 Ra	45 Ra	10 Ra	10 Ra

7.Payment terms: T/T or L/ C

(1)30% paid by T/T and rest 70% by T/T upon the copy of B/L.
(2)100% irrevocable L/C at sight

8.MOQ: 2tons
9.Delivery time:7-30 days upon to the order details
10.Trade term: FOB CFR CIF
11.Port of loading:Qingdao , China
12. Mark: including steel material, heat No., pieces, weight, date and so on.
