• Model NO.：PSB830
• Production Capacity：5000mt,Month

Basic Info.

Model NO. PSB830 Production Capacity 5000mt/Month

Product Description

high strength screw thread bar

Handan Yidao Metal products co.,ltd, located in Handan city, Hebei Province, China.

Our city has 2 large steel mill and thousands fasteners factories.
we have experience export thread bars to over 35 countries around the world.

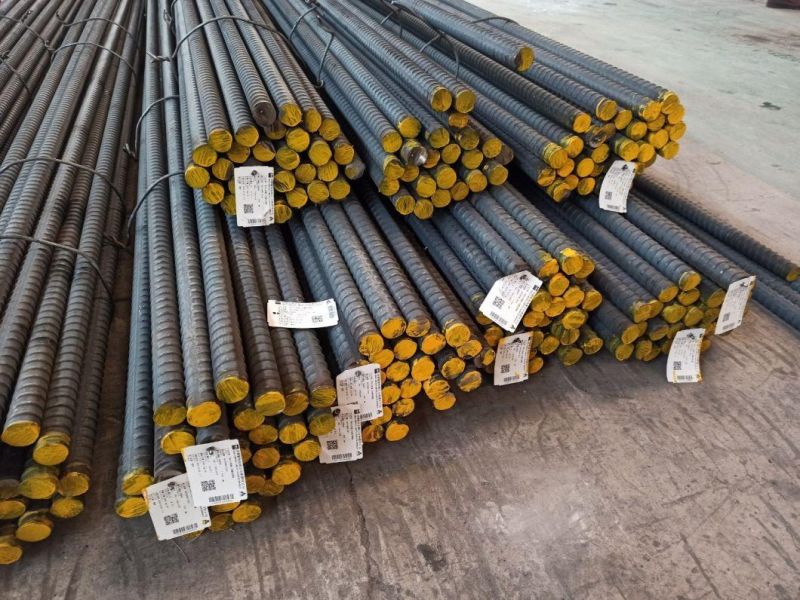

Handan Yidao metal products CO.LTD is a manufacturer of hot rolled screw thread bar
(diameter from 15mm to 50mm,grade PSB830, PSB930, PSB1080)and all related

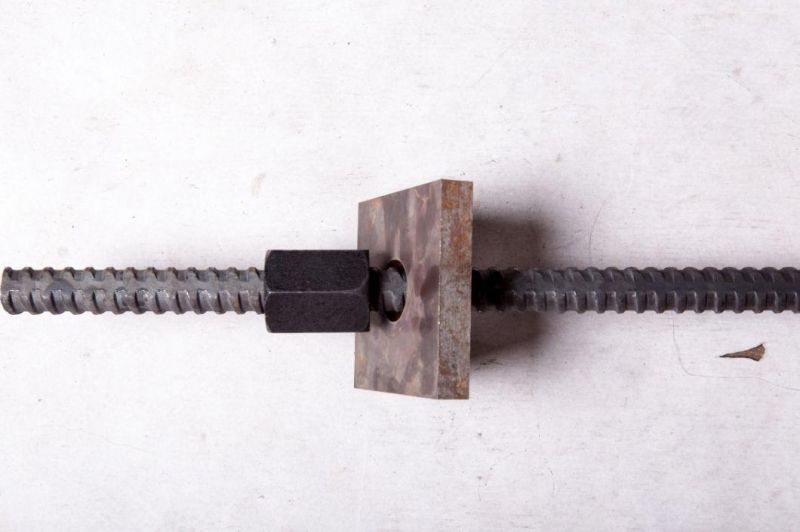

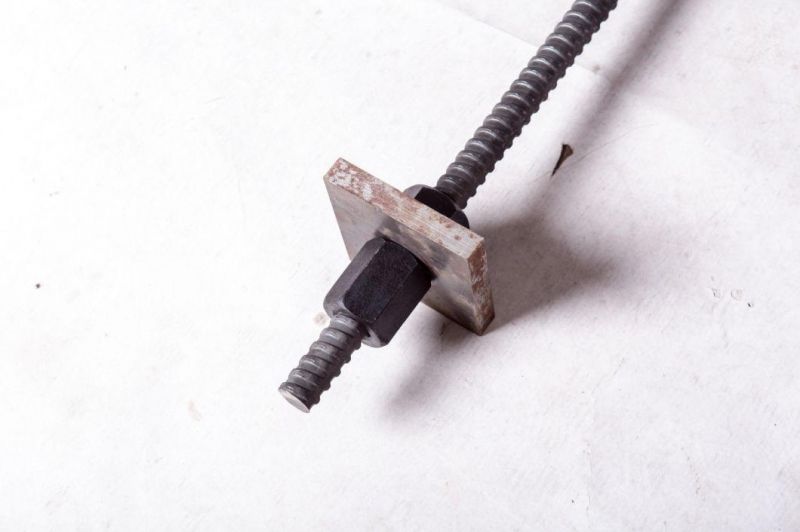

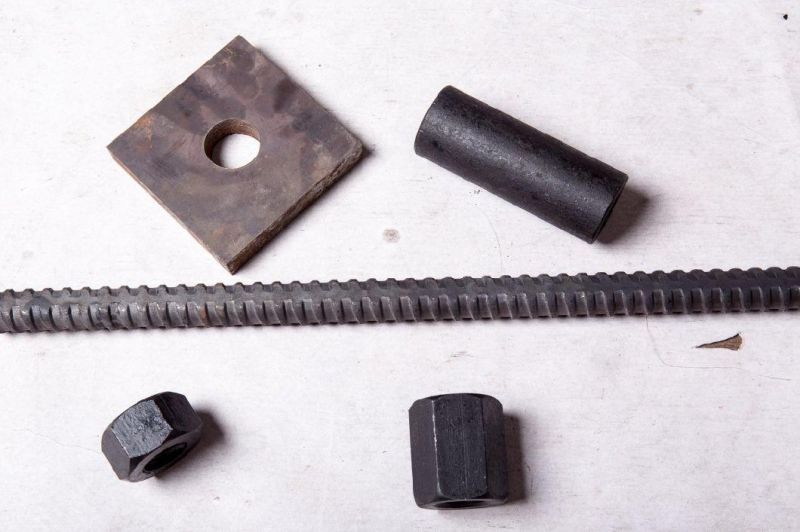

accessories(anchor hex nut, bearing plate, domed nut, and coupler).
In addition, handan yidao could produce fasteners such as bolts, nuts, screw rod and steel plates.
our factory sells 3000MT thread bar and fasteners each month.

Tie rods/Thread bars are used for soil nailing, formwork tie,tie back,tie
rod,scoffolding,post tensioning system,geotechnical,mining and tunneling,etc.
We has launched new product D15/17 TIE ROD (diameter 15mm, yield strength>830MPA, tensile strength>1030MPA) for customers.


The length of the finished thread reinforcement is usually 9 m and 12 m.

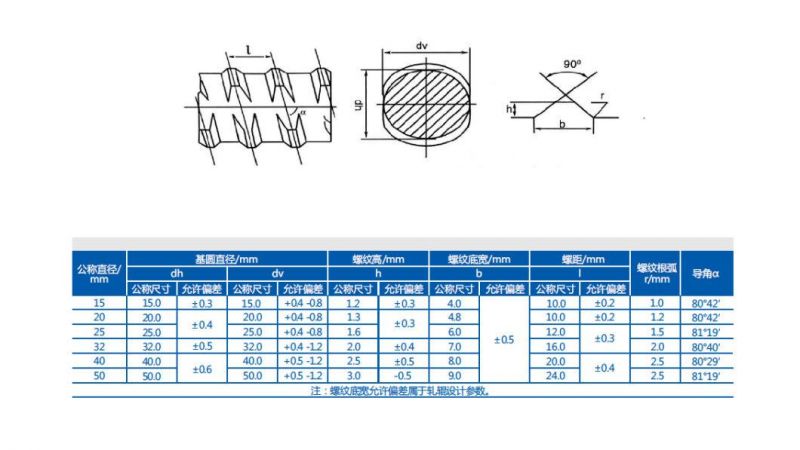

the THREAD BAR diameter is from 15MM TO 50MM

The grade/yield strength/tensile strength/post-fracture elongation is as follows:
PSB830, yield strength 830MPA, tensile strength 1030MPA, elongation after fracture 6%

PSB930, yield strength 930MPA, tensile strength 1080MPA, elongation after fracture 6%

PSB1080, yield strength 1080MPA, tensile strength 1230MPA, elongation after fracture 6%

The thread steel bar has no rib, which can be screwed by hex nuts
