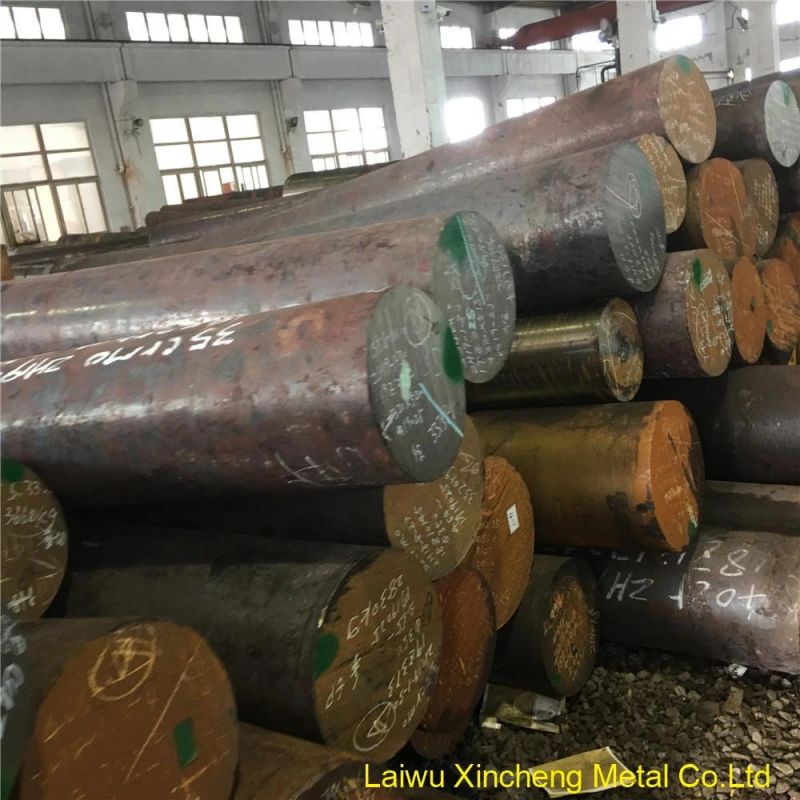

GB 35CrMo / JIS Scm435 Forged Alloy Steel Round Square Bar
Laiwu Xincheng Metal Co., Ltd.- Type：Alloy Steel Bar
- Standard：AISI, ASTM, GB, JIS, DIN, BS
- Technique：Forged
- Application：Structural Steel Bar, Tool Steel Bar, Die Steel Bar
- Alloy：Alloy
- Special Use：Mold Steel
Base Info
- Model NO.：GB 35CrMo , JIS SCM435
- Commodity：Forged Steel Round Bar
- Products：Forged Steel Square Bar
- Grade：Scm435 SAE 4135 35CrMo 34CrMo4 1.7220
- MOQ：1PCS
- Ut：Sep 1921 C,C D,D
- Transport Package：Standard Export Packing
- Specification：200-1000mm
- Origin：China
- Production Capacity：3000tons,Month
Description
Blackup to 500mm (-0/+5mm) above 500mm (-0/+8mm) Rough Turned all sizes (-0/+3mm)
5.GB 35CrMo / JIS SCM435 Forged Steel equivalent grade and chemical composition
6.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d
7.MOQ: one piece per size/grade
8.Payment term: FOB CIF CFR EXW and so on
9.Delivery time : 7 to 30 days after deposit received.

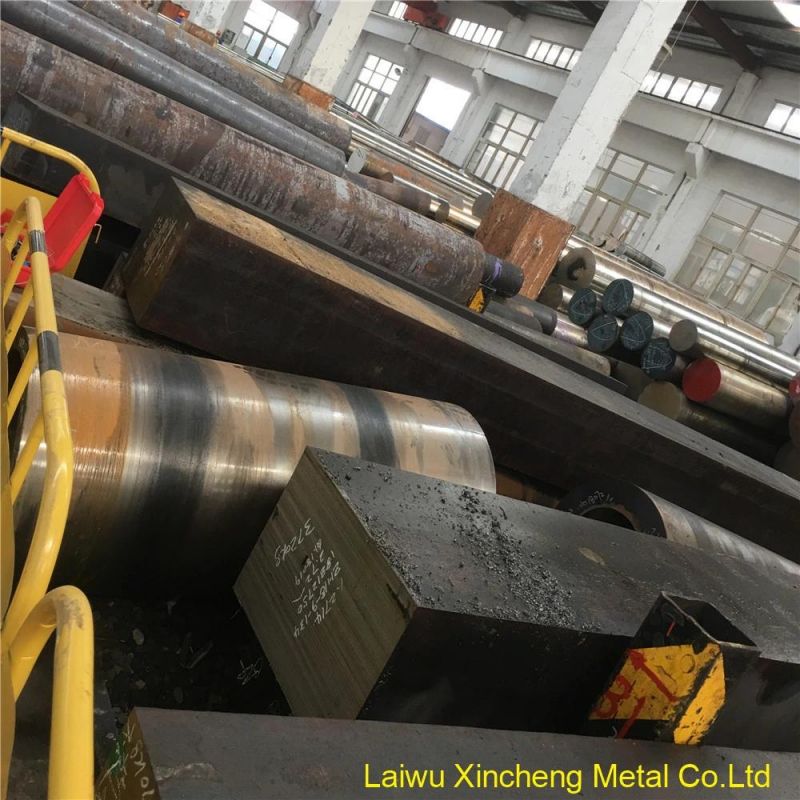

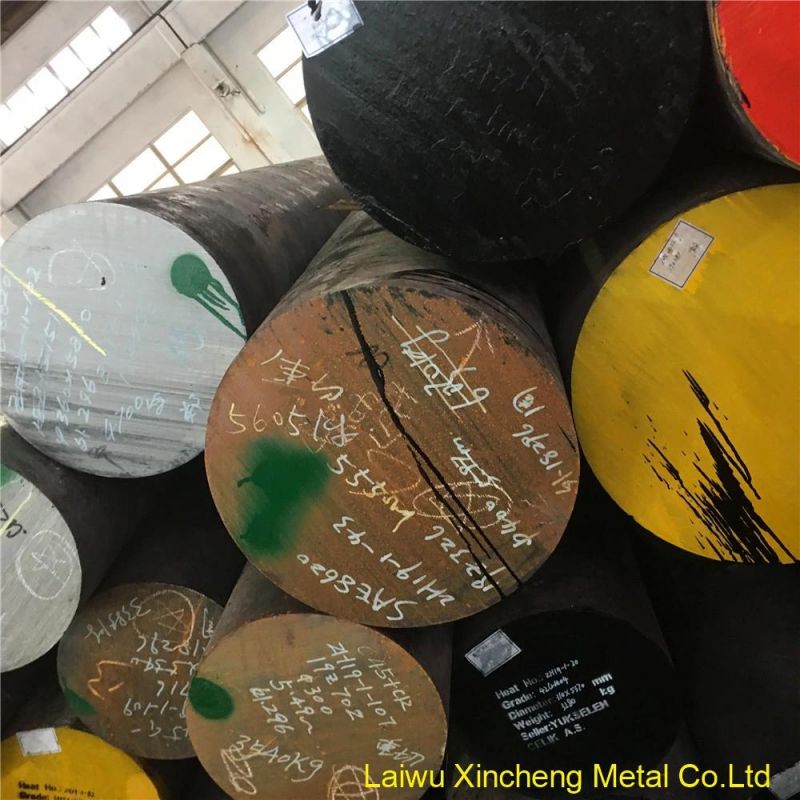

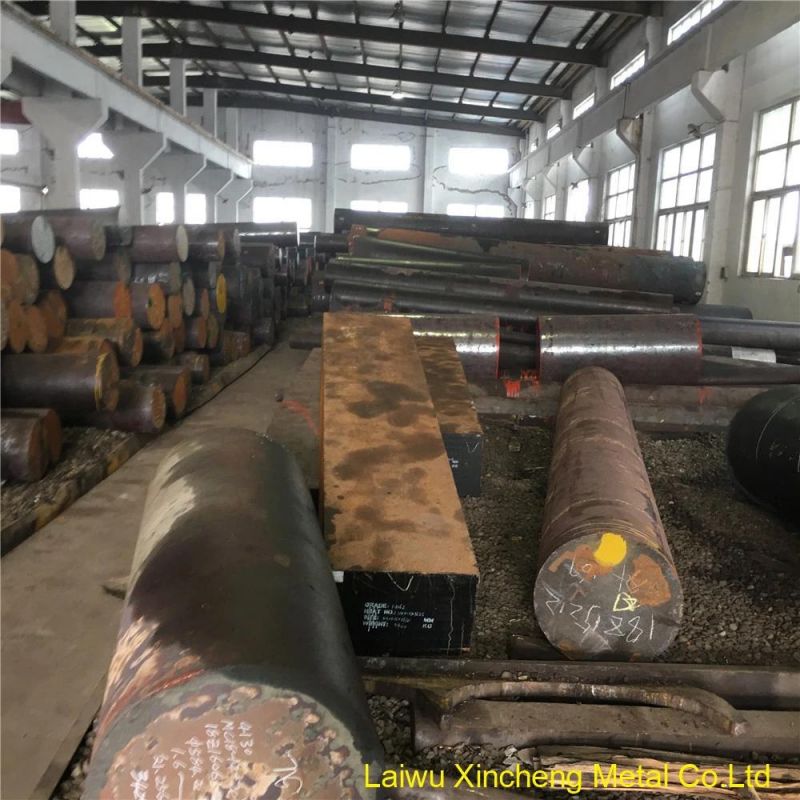

GB 35CrMo / JIS SCM435 Forged Alloy Steel Round Square Bar
GB 35CrMo / JIS SCM435 Forged Alloy Steel Round Square Bar
GB 35CrMo / JIS SCM435 Forged Alloy Steel Round Square Bar
5.GB 35CrMo / JIS SCM435 Forged Steel equivalent grade and chemical composition
| Standard | Grade | C | Cr | Mo | Si | Mn | P | S |
| GB/T3077 | 35CrMo | 0.32-0.4 | 0.8-1.1 | 0.15-0.25 | 0.17-0.37 | 0.4-0.7 | 0.035 | 0.035 |
| TOCT 4543 | 35XM | 0.32-0.4 | 0.8-1.1 | 0.15-0.25 | 0.17-0.37 | 0.4-0.7 | 0.035 | 0.035 |
| JIS G4053 | SCM435 | 0.33-0.38 | 0.9-1.2 | 0.15-0.3 | 0.15-0.35 | 0.6-0.9 | 0.03 | 0.03 |
| ASTM A29/A29M | 4135 | 0.33-0.38 | 0.9-1.2 | 0.15-0.25 | 0.15-0.35 | 0.7-0.9 | 0.035 | 0.04 |
| ISO 683 | 34CrMo4 | 0.32-0.37 | 0.9-1.2 | 0.15-0.3 | 0.1-0.4 | 0.6-0.9 | 0.035 | 0.035 |
| EN 10083 | 34CrMo3 | 0.32-0.37 | 0.9-1.2 | 0.15-0.3 | 0.4 | 0.6-0.9 | 0.025 | 0.035 |
6.Quality control:
1. Melting Process: EAF/BOF+LF+VD resulting in ingots
2. Both ends cut by saw
3. Ratio of forging:minimum 3:1
4. Grain size of final product: according to ASTM E112 more than 5,preferred more than 8
5. Ultrasonic test: As per SEP1921 Class C/c or D/d
7.MOQ: one piece per size/grade
8.Payment term: FOB CIF CFR EXW and so on
9.Delivery time : 7 to 30 days after deposit received.

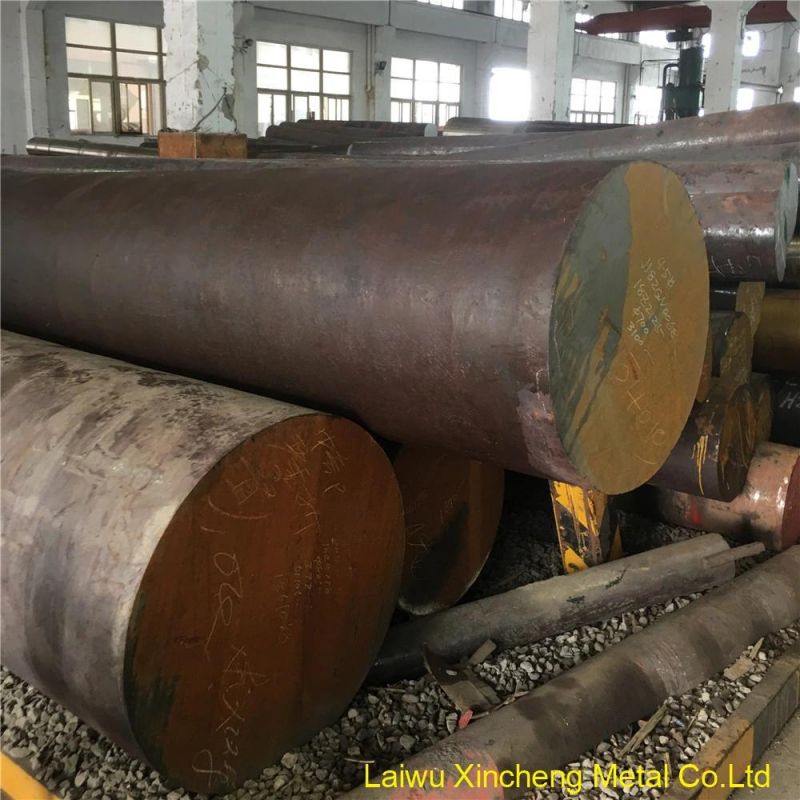

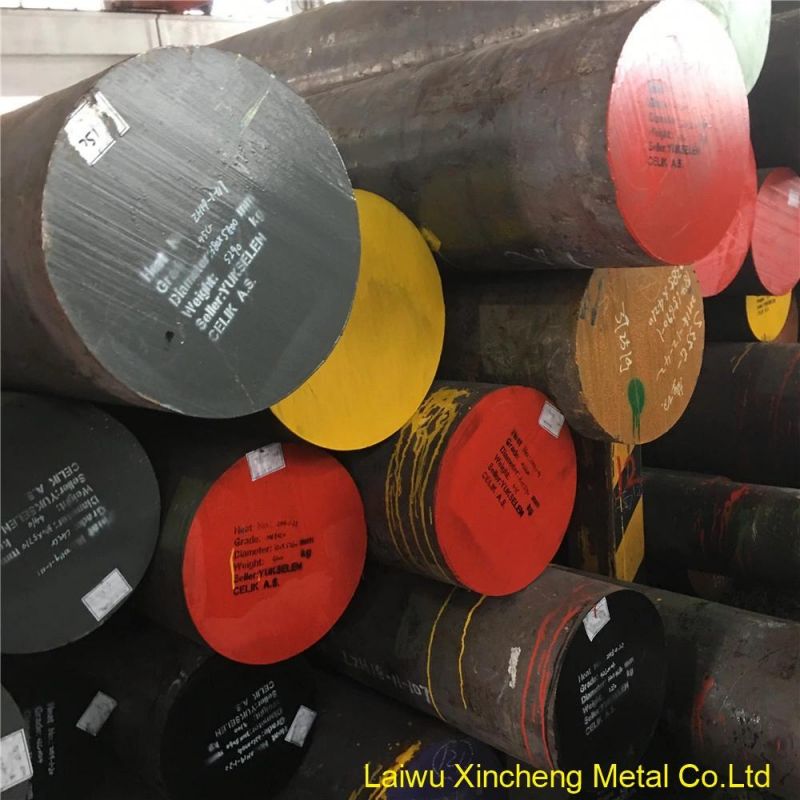

GB 35CrMo / JIS SCM435 Forged Alloy Steel Round Square Bar
