• Model NO.：S15-01
• Molding Style：Stamping
• Molding Technics：Pressure Casting
• Material：Steel
• Heat Treatment：Normalizing
• Forging Tolerance：+,-0.1mm
• Trademark：HAOYAN
• Production Capacity：1000 Tons,Month

Basic Info.

Model NO. S15-01 Molding Style Stamping Molding Technics Pressure Casting Material Steel Heat Treatment Normalizing Forging Tolerance +/-0.1mm Trademark HAOYAN Production Capacity 1000 Tons/Month

Product Description

Specification:
1.standard:HDGI,ALUZINC ,CR
2.grade: SGCC, DX5ID, ASTM, EN10142, S350GD, etc
3.zinc coating/Aluzinc coating: Z60-275g/ etc m2
4.package:export standard package or as per the buyers' requirement
5.Application:mainly used in the field of roof ,outer wall and cabinet,automotive manufacturing, electrical products, locomotives, aviation, precision instrument, canned food, ect
6.Product features:
(1) good durability, and can be used longer than galvanized steel ;
(2) has good heat resistance, and compared with galvanized steel,under high temperature it does not discolor easily;
(3) has good heat reflecting
(4) have silvery white luxuriant surface;
(5) has machining capability and spraying performance similar to galvanized steel ;
(6) good weldability.



Details

Standard: ASTM, GB, JIS                                     Grade: SGCC                        Thickness: 0.2mm-1.2mm
Place of Origin: Jiangsu, China (Mainland)          Type: Steel Coil                     Technique: Cold Rolled
Surface Treatment: Coated                                 Application: Other                  Special Use: Wear Resistant Steel
Width: 800mm-16000mm                                                                                     Length: as customer's required


Packaging & Delivery

Packaging Details: Standard seaworthy packing
Delivery Detail: 25days

Introduction :

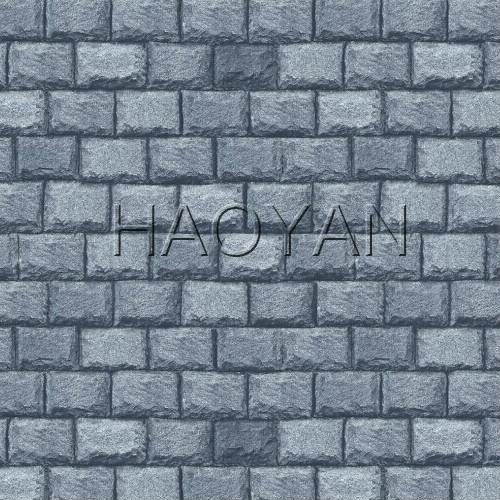

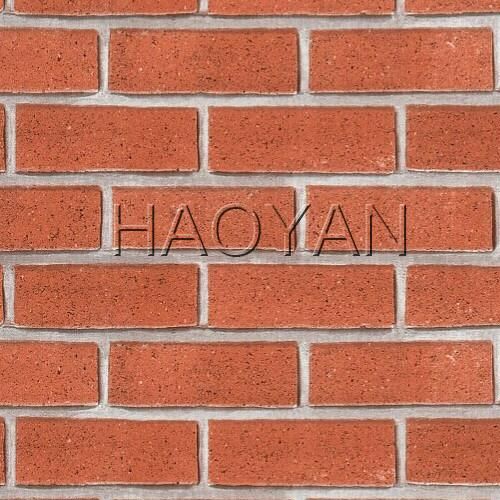

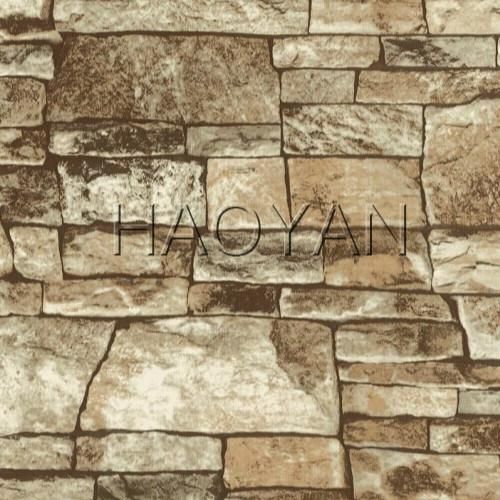

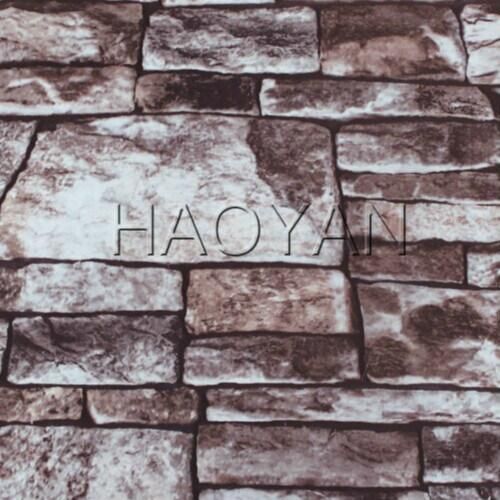

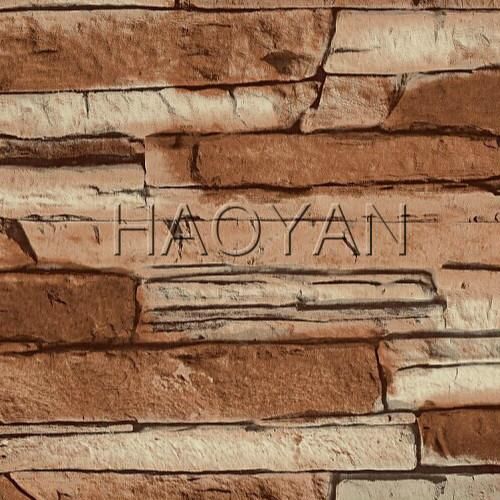

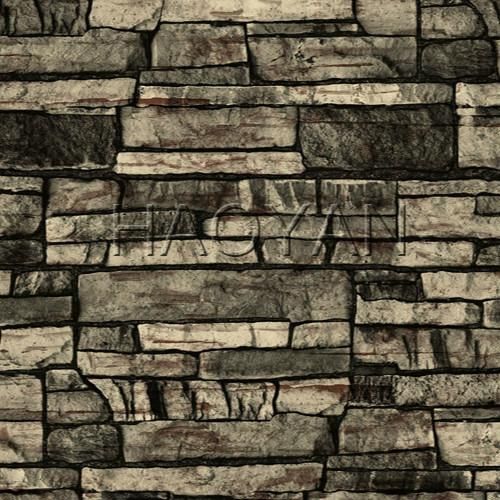

    Our company Steel Decorative Steel can utilize optical print technology which provides a realistic textured finish. This metal simulates the warmth and depth of real wood species as well as a variety of other textured design motifs. Applications include entry doors, refrigerator doors, and elevator panels.

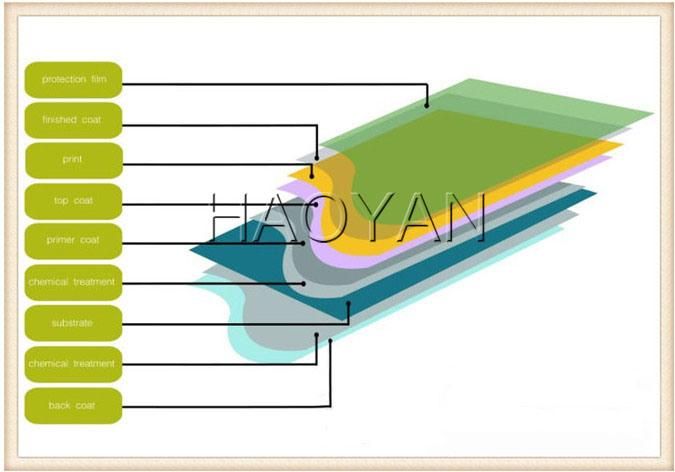

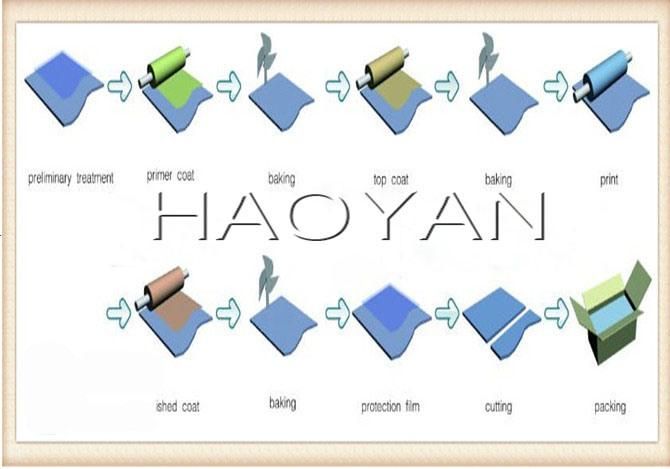

Items	Thickness	Type	Features
Protection film	50μm	polyethylene	Protecting from scratchs and contamination(Option)
Finished coat	10μm	PVDF	Protecting printed and enhances the apperance of the surfaces
Print	1μm	Ink,Polyester	Various printing patterns,3 color overprint
Top coat	20μm	Ployester Fluorine	Chemical resistance, formability and patterns multiformity
Primer coat	5μm	Ployester	Workabillity,corrosion resistance and adhesion to the primer coating
Chemical treatment	1μm	Chromate	Good adhesion and corrosion reistance
substrate	0.2-1.2mm	GI,GL,AL	GI,GL,AL
Chemical treatment	1μm	Chromate	Good adhesion and corrosion resistance
Back coat	5μm	Epoxy	Corrosion resistance and adhesion to the substrate

Size Availability

Base Metal Thickness	0.2mm-1.2mm
Width	800mm-1600mm
Coil Internal Diameter	508mm-610mm
Coil Weight	MAX 8 M.T
Metallic coating	Z60-Z27g AZM 60-AZM275g
Thickness of organic coating	15micro-25micro (as customers' requirement


Flexibility
A.Coating systems  or configurations maybe customized to suit client's requirements
B.Top Coat can be 2-coat or 3-coat system (primer + base coat + finishing coat)
C.Backing can be single service coat or primer + backer coat
D.Both sides can also be colour coated
E.Protection Film services provided
F.Color matching services provided at no additional charges

Product Detail
good durability, and can be used longer than galvanized steel ;
 good heat resistance, and compared with galvanized steel,under high temperature it does not
discolor easily;
good heat reflecting,good weldability, good adhesion;
silvery white luxuriant surface;
 machining capability and spraying performance similar to galvanized steel ;
protective film can be provided according to customers' requirement.
