• Model NO.：WAN517
• Carbon Steel Pipe：Seamless, Welded
• Size：1,2"~48"
• Wt：Sch5s~Xxs
• Prodduct Name：40cr Steel Pipes
• Keyword：Seamless Carbon Steel Pipe
• Transport Package：Wooden Box, in Bundles or as Customer′s Request
• Specification：1,2"~48"
• Trademark：Kingmertal
• Origin：China
• HS Code：73060000
• Production Capacity：50000tons,Year

Chemical Composition (%)GradeC %SiMnCr40Cr0.37 - 0.440.17 - 0.370.5 - 0.80.80 - 1.10

Mechanical Properties of 40Cr Alloy Steel

• Tensile strength: ≥810 N/mm2 (When actual hardness 25 HRC)
• Yield strength: ≥785 N/mm2
• Elongation after break: ≥9%
• Rate of reduction in area: ≥45%
• Impact absorbing energy: ≥47 J
• Material Brinell hardness: ≤207 (annealing or high temperature tempering state)
• Sample size: 25mm

Heat treatment specification of 40Cr seamless Steel Pipe

• First quenching heating temperature: 850 °C (Cooling: oil)
• Tempering heating temperature: 520 °C

Applications of 40Cr material

After 40Cr alloy steel quenching and tempering treatment, it is used to manufacture medium-speed, medium-load parts such as machine gears, shafts, worms, spline shafts, thimble sleeves, etc.

After quenching and tempering and high-frequency surface quenching, it is used to manufacture high-hardness, wear-resistant parts such as gears, shafts, spindles, crankshafts, sleeves, pins, connecting rods, screws, nuts, intake valves, etc.

After quenching and medium temperature tempering, it is used to manufacture heavy-duty, medium-speed impact parts such as oil pump rotors, sliders, gears, spindles, collars, etc.

After quenching and low temperature tempering, it is used to manufacture heavy-duty, low-impact, wear-resistant parts such as worms, spindles, shafts and collars.

After carbonitriding treatment, it is used to manufacture transmission parts with large size and high low temperature impact toughness, such as shafts and gears.

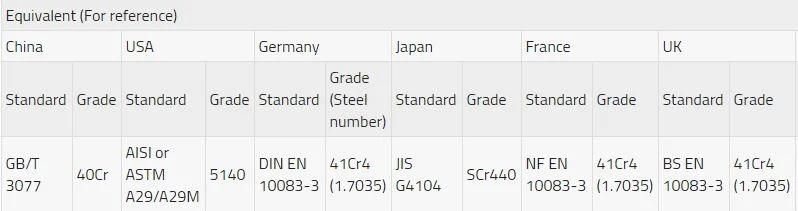

Equivalent Grades of 40Cr Material

40Cr steel equivalent to US ASTM AISI, European Germany DIN EN, British BS EN, France NF EN, Japanese JIS and ISO standard.

More standard and material steel pipes besides 40cr seamless steel pipe we can supply is as following :

Standard	ASTM A213 ,A335,A519,EN10216-2,JIS G3458,G3462,G3467,GB5310,DIN17175
Out Diameter	10-813mm
Wall Thickness	1-41mm
Material	Cr5Mo (T5 P5 STFA 25 STPA25 STBA25) 15CrMo (T12 P12 STFA22 STPA22 STBA22) 1.25Cr0.5Mo (T11 P11 STFA23 STPA23 STBA23)  Cr9Mo (T9 P9 STFA26 STPA26 STBA26)  12Cr2Mo (T22 P22 10CrMo910)  10Cr9Mo1VNb (T91 P91) 12Cr1MoV 12Cr2MoWVTiB (R102)
Length	1-12m or as customers required
Surface treatment	Black painting, black varnish, transparent oil, epoxy coating, etc.
Technique	Seamless
Usage	1.  Low and middle pressure fluid transportation pipeline  2.  Casing Tube  3.  Boiler Pipe  4.  Petroleum and natural gas industry  5.  Chemistry industry  6.  Electric industry
Supply	1.  Seamless steel pipe  2.  steel casing  3.  tubing  4.  hot-rolled steel pipe
Contact	MS wanfury
